Cable SFF-8087 to 4x SATA W/O Sideband 14G504002801AK

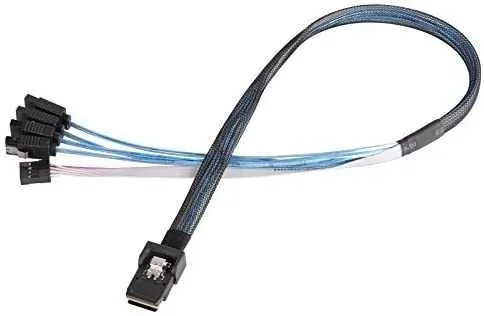

SFF-8087 to 4x SATA W/O Sideband Cable

This SFF-8087 to 4x SATA cable connects an internal Mini SAS SFF-8087 port to four separate SATA connectors. It is used to link a RAID controller, an HBA or a server motherboard with an SFF-8087 port to SATA drives or to a backplane with SATA connectors.

This version has no sideband harness, so it suits installations that do not need management and LED signals from the controller, such as drives connected directly inside the chassis.

Key features

• SFF-8087 on the controller side - An internal Mini SAS connector carries four lanes in one cable instead of four separate SATA cables from the controller.
• Four SATA connectors - The other end splits into four 7-pin SATA connectors, one for each drive or backplane port.
• No sideband - The cable has no sideband connector for management signals (SGPIO), so it fits direct drive connections that do not need LED control from the controller.
• For servers and workstations - Suitable for RAID controllers and HBAs, server motherboards with an SFF-8087 port and multi-drive chassis.

Specifications
