Cable SATA Zalman ZM1000-EBT MOLEX CABLE Color:black Condition:Used

Cable Zalman ZM1000-EBT MOLEX CABLE

This is a peripheral cable (ODD Power Connector) from the modular cable set of the Zalman ZM1000-EBT power supply. It is used and has been tested in our lab.

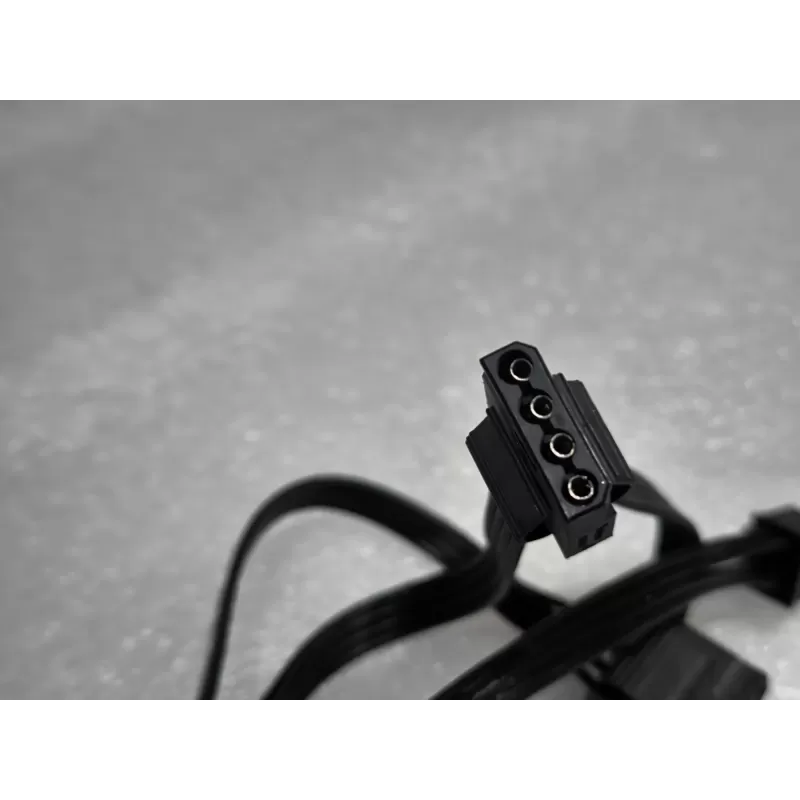

According to Zalman's cable drawing it carries four 4-pin Molex connectors: the first 450 mm from the PSU and the next ones at 150 mm intervals. The PSU kit has two such cables, and one of them also ends with an FDD connector.

It powers fans, cooling pumps, lighting controllers, older drives and other devices with a Molex plug, for anyone missing the cable or needing an extra one.

Key features

• Four Molex connectors - Four classic 4-pin connectors for powering peripherals.
• 150 mm spacing - 450 mm to the first connector, then 150 + 150 + 150 mm, per Zalman's official ZM850/1000-EBT drawing.
• Two cables in the kit - The ZM1000-EBT has two Molex cables, giving up to eight Molex connectors and one FDD connector.

• Part of the ZM1000-EBT cable set - A Zalman 1000W 80 PLUS Gold power supply with 87-92% efficiency at 20-100% load, a single +12V rail and modular cable management.
• For the original PSU only - Modular socket pinouts differ between manufacturers and models, so the cable goes only into the matching socket of a ZM1000-EBT.
