Cable Zalman ZM1000-EBT SATA CABLE Color:black Condition:Used

Cable Zalman ZM1000-EBT SATA CABLE

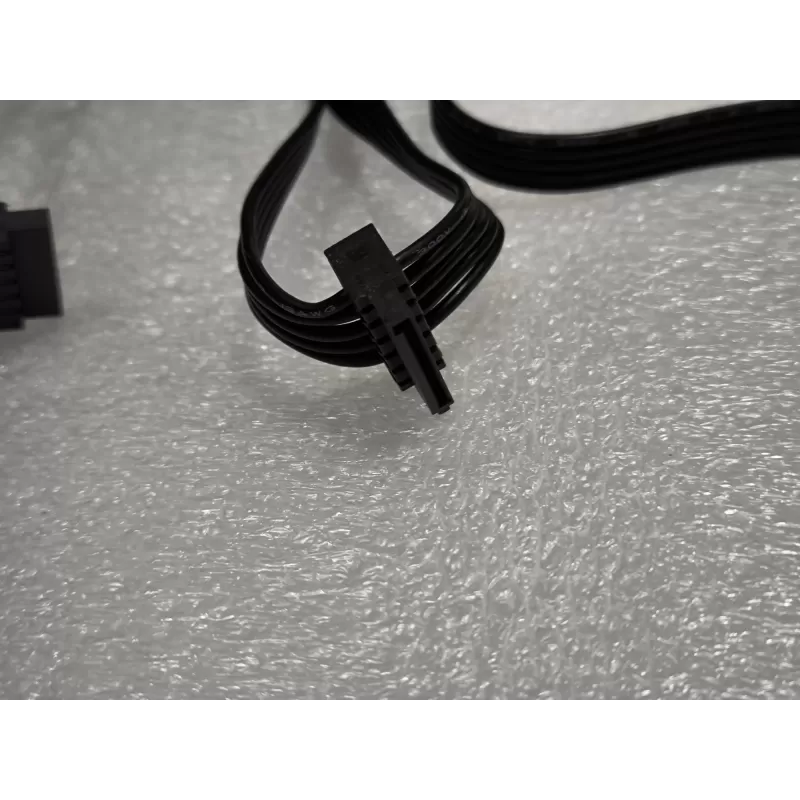

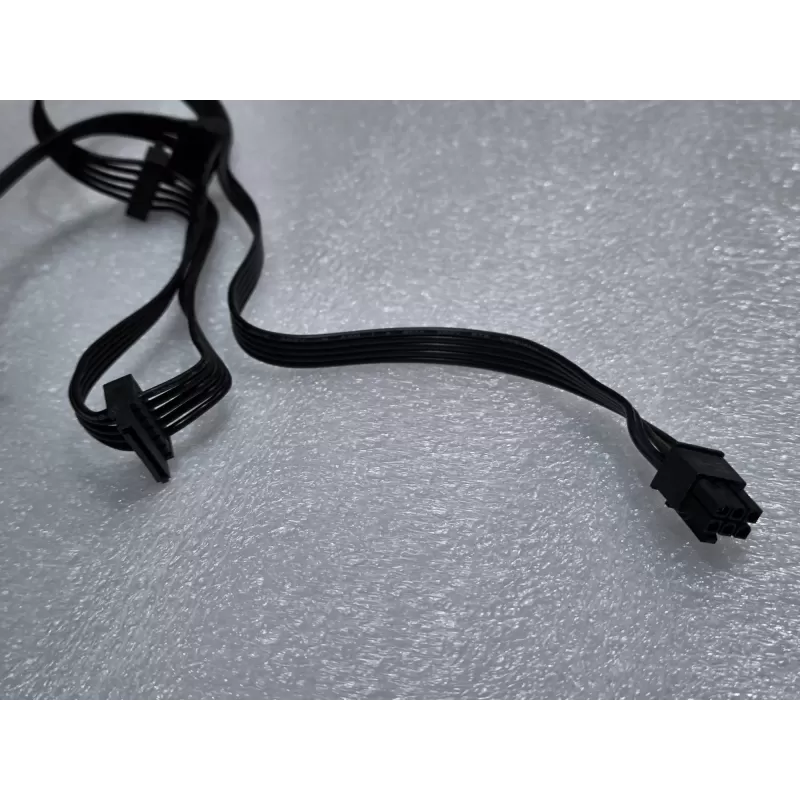

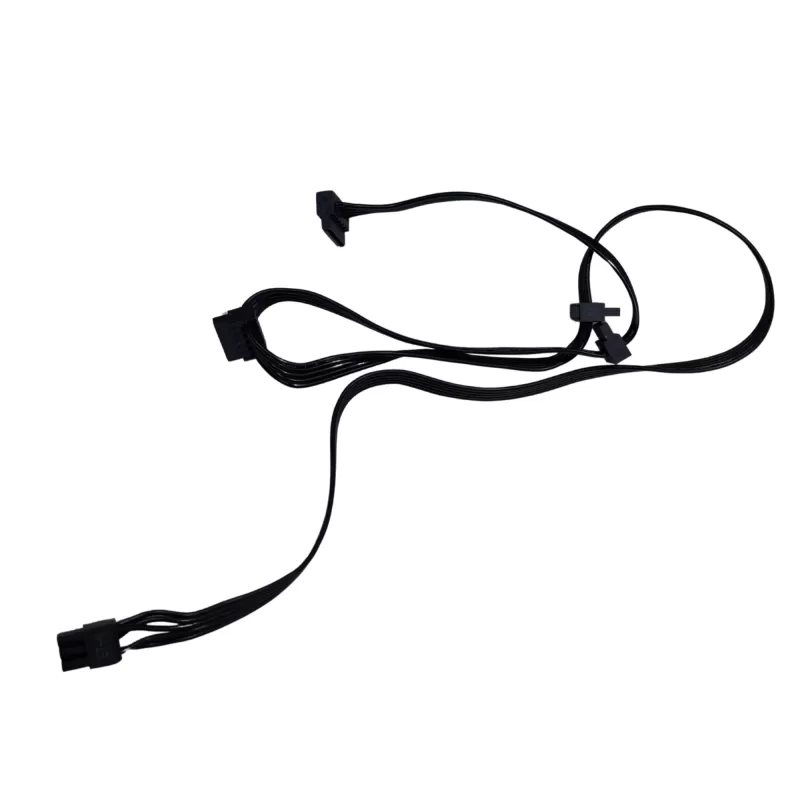

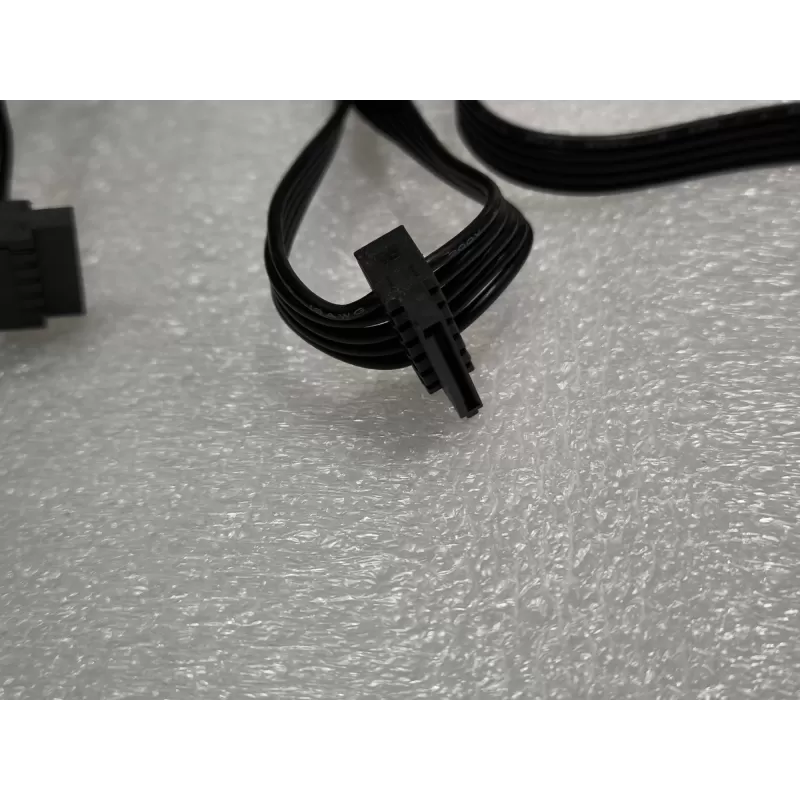

This is one of the three SATA cables of the Zalman ZM1000-EBT power supply. It is used and has been tested in our lab.

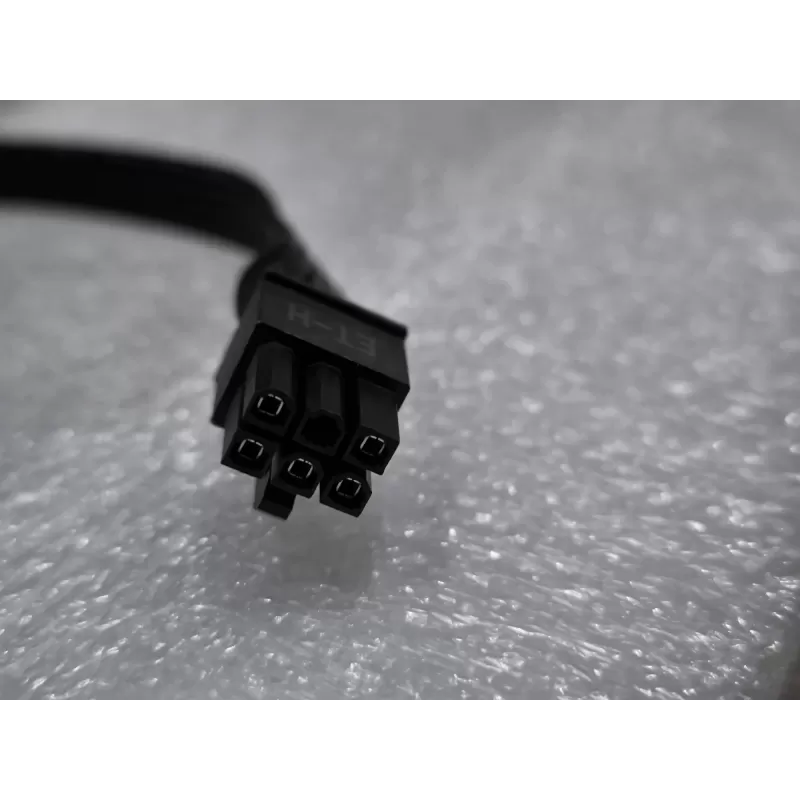

The cable plugs into a modular socket of the PSU and powers up to four hard drives, SSDs or optical drives with a SATA power connector. According to Zalman's cable drawing, the first connector sits 450 mm from the PSU and the next three follow at 150 mm intervals.

It suits anyone missing a SATA cable for a ZM1000-EBT or adding drives to the PC.

Key features

• Four SATA connectors - One cable powers up to four drives with a SATA power connector.
• 150 mm spacing - 450 mm to the first connector, then 150 + 150 + 150 mm, per Zalman's official ZM850/1000-EBT drawing.
• Up to 12 SATA plugs per PSU - The ZM1000-EBT kit has three such SATA cables, for up to 12 SATA connectors in total.

• Part of the ZM1000-EBT cable set - A Zalman 1000W 80 PLUS Gold power supply with 87-92% efficiency at 20-100% load, a single +12V rail and modular cable management.
• For the original PSU only - Modular socket pinouts differ between manufacturers and models, so the cable goes only into the matching socket of a ZM1000-EBT.
