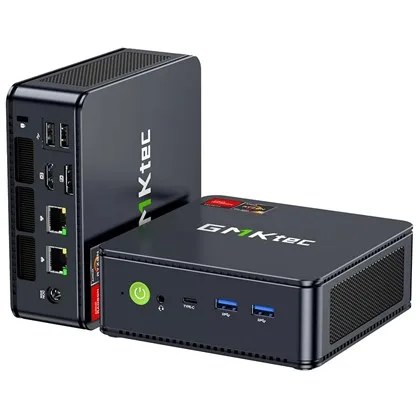

| Revew | GMKtec NucBox M5 Ultra Ryzen 7 7730U 16GB 512GB Mini PCThe GMKtec NucBox M5 Ultra is a compact mini PC with an 8-core AMD Ryzen 7 7730U processor and integrated Radeon graphics, designed for office work and multitasking. This model has 16GB of DDR4 memory and a 512GB SSD. It includes two 2.5G Ethernet ports, Wi-Fi 6E, two M.2 slots and two SO-DIMM slots for upgrades, and ships with Windows 11 Pro.
Key features- AMD Ryzen 7 7730U processor - 8 cores and 16 threads on the Zen 3 architecture, a 2.0GHz base clock and boost up to 4.5GHz, with 16MB of L3 cache.
- Integrated Radeon graphics - Graphics with 8 cores running at up to 2000MHz, supporting up to three displays through HDMI, DisplayPort and USB-C, with 8K at 60Hz over DisplayPort.
- Easy memory and storage upgrades - Two SO-DIMM slots with DDR4-3200 expandable up to 64GB, and two M.2 2280 slots that allow up to 8TB per drive.
- Rich connectivity - Two 2.5G RJ45 Ethernet ports, Wi-Fi 6E and Bluetooth 5.2, two USB 3.2 Gen2 ports, two USB 2.0 ports and a USB-C port with DisplayPort output.
- Quiet cooling - A dual-fan design with a copper heat pipe keeps temperatures low and operation quiet.
- Windows 11 Pro preinstalled - The operating system is installed and the PC is ready to use right away.
Specifications| Manufacturer | GMKtec | | Model | NucBox M5 Ultra | | Type | Mini PC | | Processor | AMD Ryzen 7 7730U | | Cores and clock | 8 cores / 16 threads (Zen 3), base 2.0GHz, boost up to 4.5GHz, 4MB L2 and 16MB L3 | | Graphics | AMD Radeon Graphics, 8 cores, up to 2000MHz | | Memory | 16GB DDR4-3200 SO-DIMM, dual-channel, up to 64GB | | Storage | 512GB SSD, M.2 2280 PCIe 3.0 x4 | | Storage expansion | 2 x M.2 2280 (SATA or PCIe 3.0 x4, and PCIe 3.0 x4), up to 8TB per drive | | Wireless | Wi-Fi 6E (AMD RZ616), Bluetooth 5.2 | | Ethernet | 2 x RJ45 2.5G (Realtek RTL8125) | | Ports | 2 x USB-A 3.2 Gen2, 2 x USB-A 2.0, USB-C 3.2 Gen2, HDMI 2.0, DisplayPort 1.4, 3.5mm audio | | Video output | Up to 3 displays (HDMI, DisplayPort and USB-C), up to 8K at 60Hz over DisplayPort | | Operating system | Windows 11 Pro | | Power adapter | DC 19V / 3.42A | | Dimensions | 128.8 x 127 x 47.8 mm | | Weight | 528 g |
In the box- GMKtec NucBox M5 Ultra mini PC
- Power adapter
- HDMI cable
- VESA mount bracket
- User manual
|
