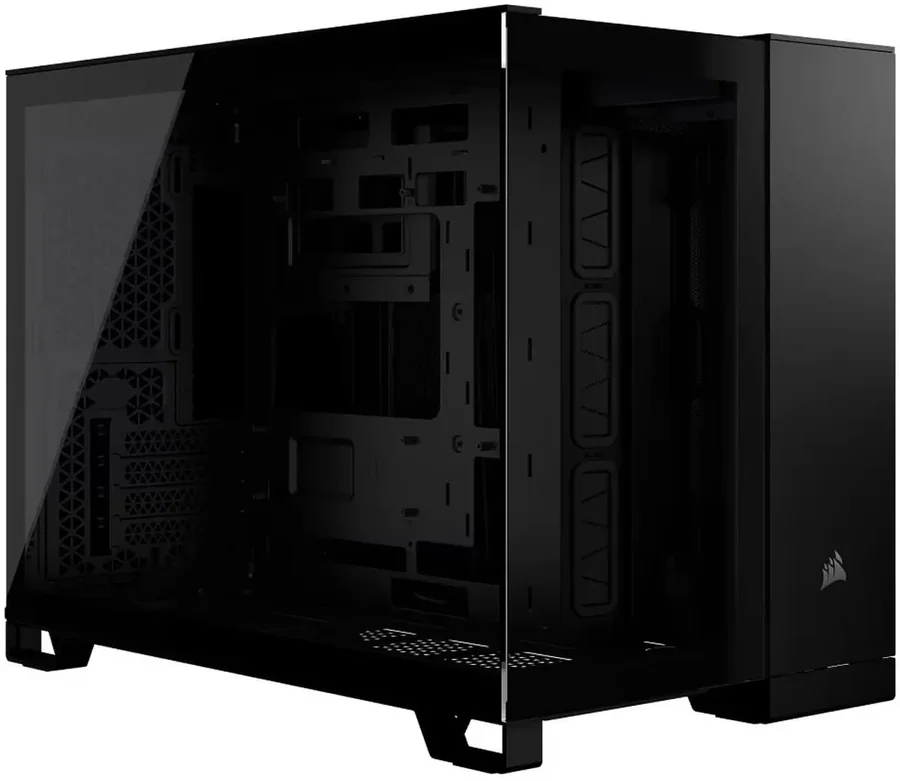

| Revew | Corsair 2500X Mid-Tower Dual Chamber PC Case BlackThe Corsair 2500X is a dual-chamber case for Micro ATX and Mini-ITX motherboards, with a tempered glass front and left side panel that put the components on display. The main chamber holds the motherboard, CPU and graphics card, while the second chamber hides the power supply, drives and cables for a clean, tidy build. The case supports reverse-connector motherboards (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH) and iCUE LINK, and takes up to nine 120 mm fans plus 360 mm radiators in the roof and floor. It ships without fans, so you can pick the cooling that suits your system.
Key features- Dual-chamber layout - The power supply, drives and cables move to a separate chamber behind the motherboard, leaving only the parts you want to show in the main chamber. The rear chamber offers 106 mm of cable routing space.
- Reverse-connector motherboard support - The case is compatible with ASUS BTF, MSI PROJECT ZERO and GIGABYTE PROJECT STEALTH boards, which have their connectors on the back, and with iCUE LINK.
- Flexible cooling - Room for up to nine 120 mm or six 140 mm fans: three in the roof, three in the floor, two on the side and one at the rear. Radiators up to 360 mm in the roof and floor, 240 mm on the side and 120 mm at the rear.
- Space for big hardware - Graphics cards up to 400 mm, CPU coolers up to 180 mm tall and ATX power supplies up to 225 mm. Four horizontal expansion slots, plus four vertical with the separately sold vertical mount kit.
- Modern front I/O - One USB 3.2 Gen 2 Type-C port, two USB 3.2 Gen 1 Type-A ports, a headphone/microphone combo jack and power and reset buttons.
- Storage in the rear chamber - A removable drive cage for two 3.5-inch drives and room for two more 2.5-inch SSDs.
Specifications| Manufacturer | Corsair | | Model | 2500X | | Part number | CC-9011265-WW | | Case type | Mid-Tower, dual chamber | | Motherboard support | Mini-ITX, Micro ATX, including reverse-connector boards | | Power supply | ATX, up to 225 mm long | | Max GPU length | 400 mm | | Max CPU cooler height | 180 mm | | Expansion slots | 4 horizontal (4 vertical with separately sold kit) | | Drive bays | 2 x 3.5-inch, 2 x 2.5-inch | | Included fans | None | | Fan support | Top 3 x 120/140 mm, bottom 3 x 120/140 mm, side 2 x 120 mm, rear 1 x 120 mm | | Radiator support | Top and bottom 240/280/360 mm, side 240 mm, rear 120 mm | | Front ports | USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Type-A, headphone/mic combo jack | | Cable routing space | 106 mm | | Materials | Steel, tempered glass, plastic | | Side panels | Left tempered glass, right mesh | | Dimensions | 479 x 304 x 376 mm (L x W x H) | | Color | Black |
In the box- Corsair 2500X case
- 28 x QuikTurn fan screws
- 18 x motherboard/HDD screws
- 12 x SSD screws
- 1 x motherboard standoff
- 8 x washers
- 12 x cable ties
- Front I/O adapter
- SFX PSU bracket (pre-installed)
|
