Power Supply Corsair CX Series CX650 CP-9020278-EU Non modular 80 Plus Bronze 650W

Power Supply Corsair CX Series CX650

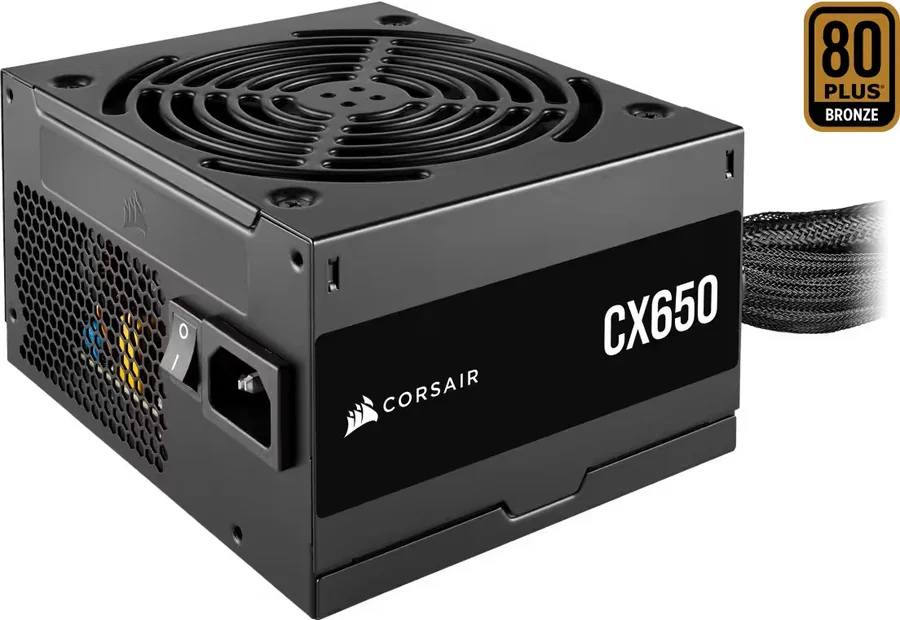

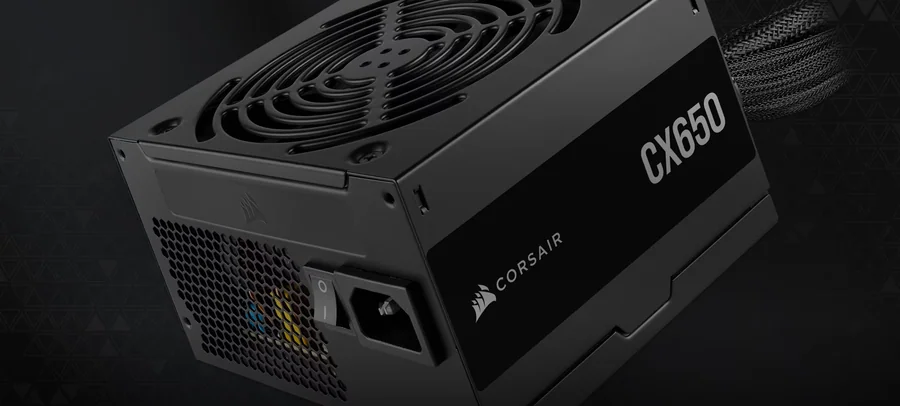

The Corsair CX650 (2023 model, RPS0128) is a non-modular ATX power supply rated for 650W continuous, with 80 PLUS Bronze certification and up to 88% efficiency. Less energy turns into heat, so your PC runs cooler and your power bill stays lower.

A single 12V rail delivers up to 52A (624W), where most of the PC load sits: the CPU and graphics card. It comes with a sleeved 24-pin ATX cable, an EPS 8-pin (4+4) CPU cable, two PCIe 6+2 connectors for the graphics card, three SATA and two Molex connectors, with mostly flat cables for easy routing.

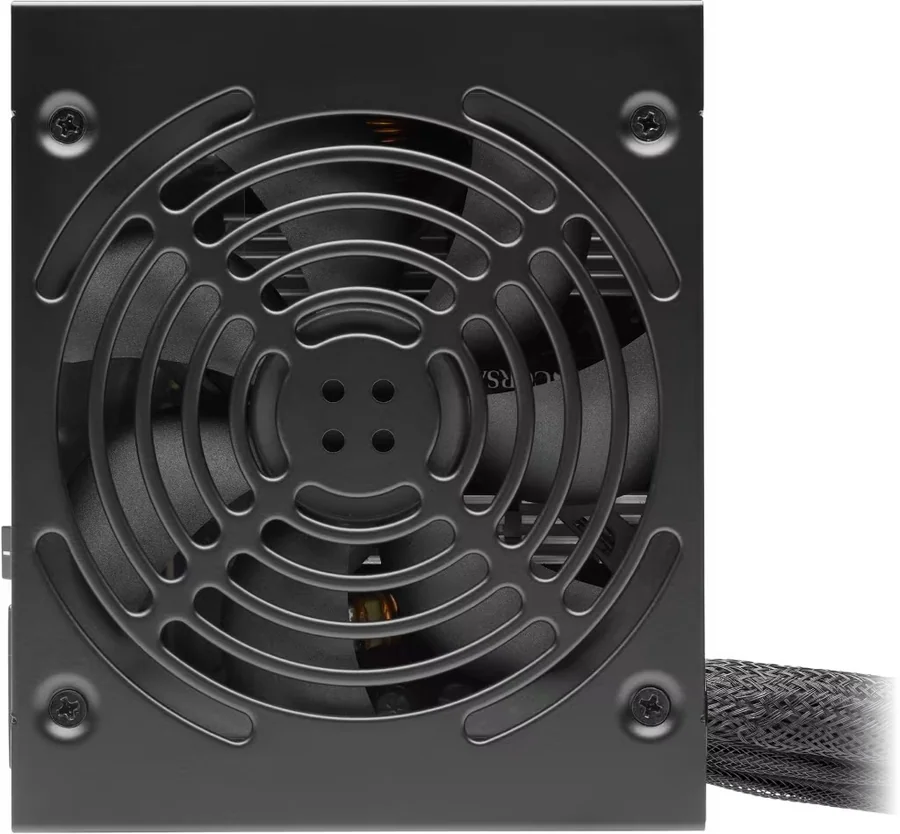

The 120 mm thermally controlled fan only spins fast under heavy load and slows down automatically for quiet operation, and the compact 125 mm long casing fits almost every modern case. Continuous output is rated at 30°C, with an MTBF of 100,000 hours.

Key features

• 80 PLUS Bronze, up to 88% efficiency - Consistent power for your PC with up to 88% efficiency, less heat and lower energy costs.
• Quiet 120 mm fan - A thermally controlled fan that spins at high speed only under heavy load and slows down automatically for quiet operation at lower loads.

• Compact, 125 mm - A 125 mm long casing that fits easily into almost all modern PC cases.
• 52A on the 12V rail - Up to 624W on a single 12V rail for the CPU and graphics card, out of 650W continuous.

• Flat cables and sleeved ATX - A sleeved 24-pin ATX cable and flat EPS, PCIe, SATA and Molex cables for tidy routing.
• Reliability - Continuous output rated at 30°C and 100,000 hours MTBF.

Specifications

In the box

• CX650 power supply
• AC power cord
• Mounting screws
