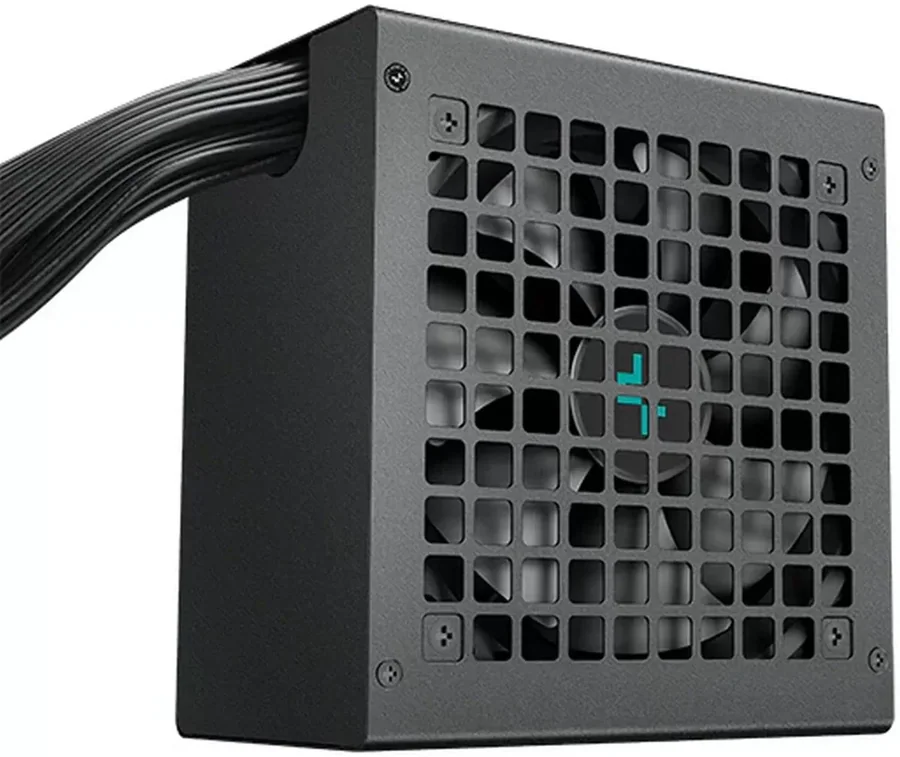

Power Supply DEEPCOOL PL650D V2 R-PL650D-FC0B-WO-V2 Non modular 80 Plus Bronze 650W

Power Supply DEEPCOOL PL650D V2 ATX 3.1 650W

The DEEPCOOL PL650D V2 (R-PL650D-FC0B-WO-V2) is a 650W power supply built to the Intel ATX 3.1 standard, with a native 12V-2x6 (PCIe 5.1) cable rated up to 300W. It can deliver twice the total system power for 0.1 ms, so graphics card power spikes will not shut the PC down.

It suits mid-range gaming and work PCs: it provides a 12V-2x6 cable, three PCIe 6+2 connectors, two CPU 4+4 connectors and three SATA connectors, and it is 80 PLUS Bronze certified (at least 85% efficiency at 50% load) as well as Cybenetics Silver.

A dual-transistor forward topology with active PFC and DC to DC conversion delivers stable voltages, premium electrolytic capacitors keep hold-up time at 16 ms or more under full load, and the 120 mm hydro-bearing fan is quiet and durable.

Key features

• Native ATX 3.1 with 12V-2x6 - A native PCIe 5.1 connector rated up to 300W for new-generation graphics cards, and 2x total power excursion for 0.1 ms per ATX 3.1.

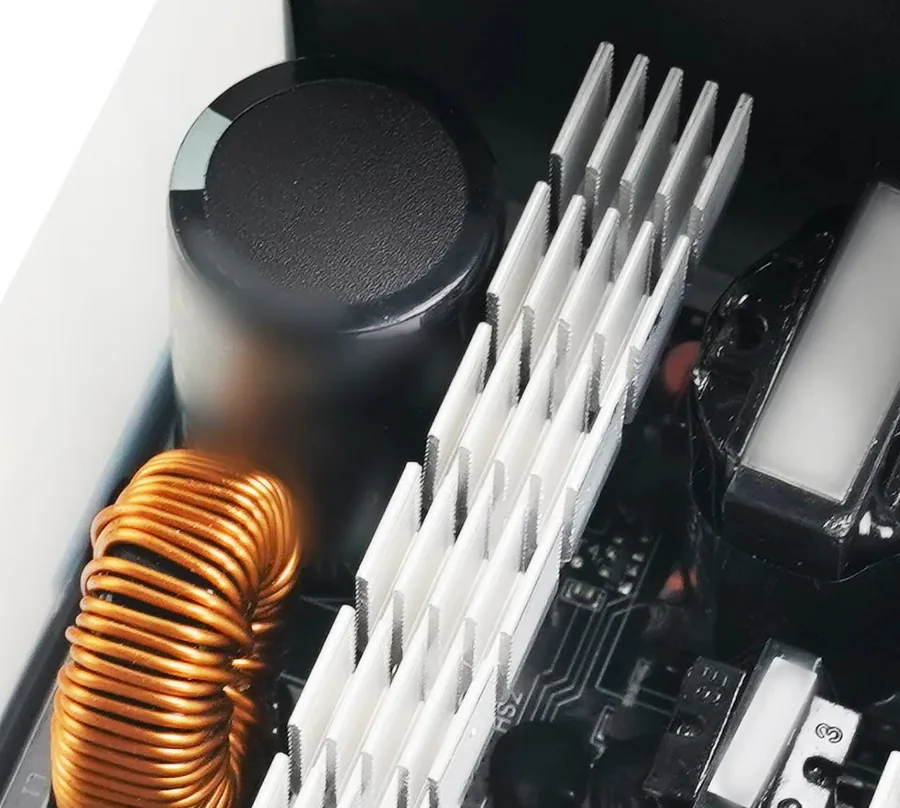

• Premium electrolytic capacitors - High-grade capacitors keep hold-up time at 16 ms or more under full load (100%), so the PSU handles brief power interruptions well.

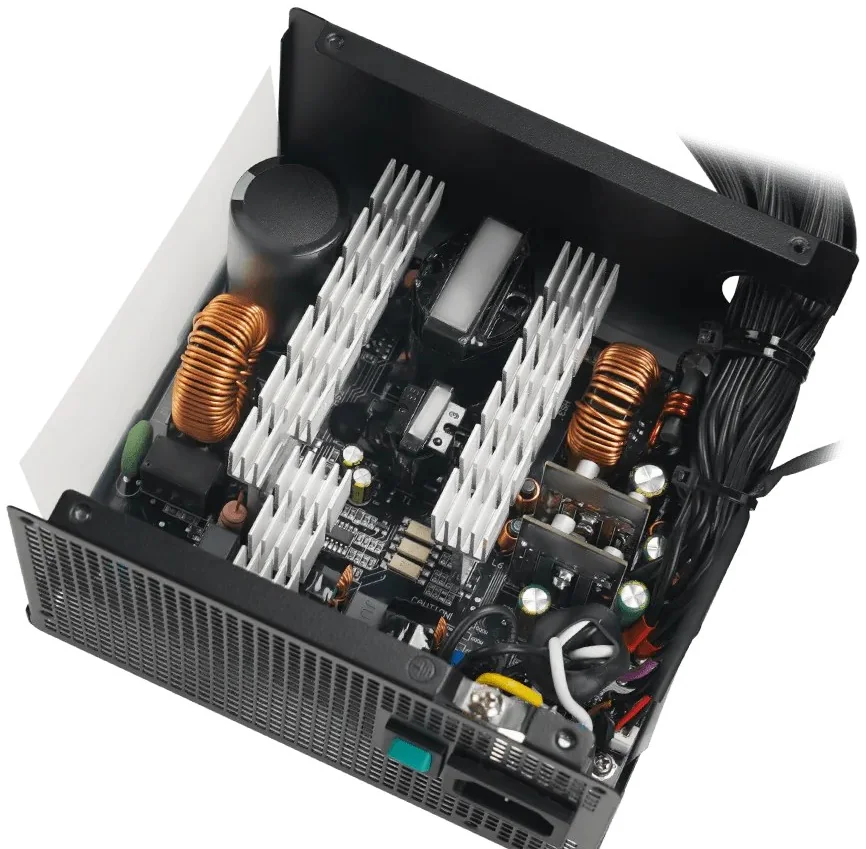

• Rock solid reliability - Dual-transistor forward topology with active PFC and DC to DC conversion, quality components and operation at altitudes of up to 5,000 meters.

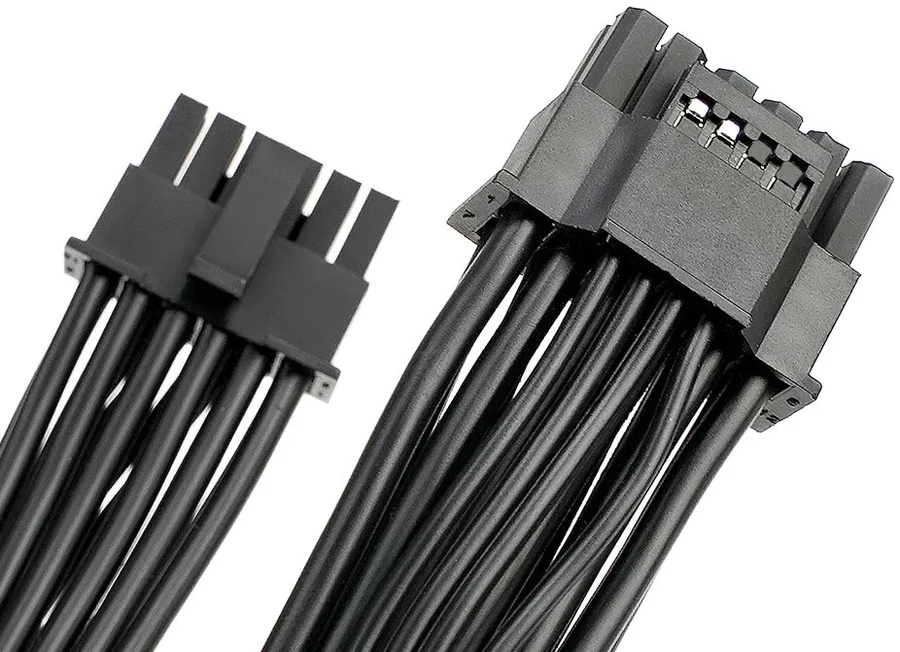

• Cables for past, present and future - Three PCIe, two EPS and a 16AWG 12V-2x6 cable power both legacy and next-generation PCs.

• Bold Bronze - 80 PLUS Bronze certified with at least 85% efficiency under typical (50%) load, plus a Cybenetics Silver rating.
• Full set of safeguards - OPP, OVP, SCP, OTP, OCP, UVP, SIP and NLO protect against overload, over-voltage, short circuit, overheating, over-current, under-voltage and surges.
