Power Supply FSP Hydro PTM PRO 850W HPT2-850M Full Modular 80 Plus Platinum

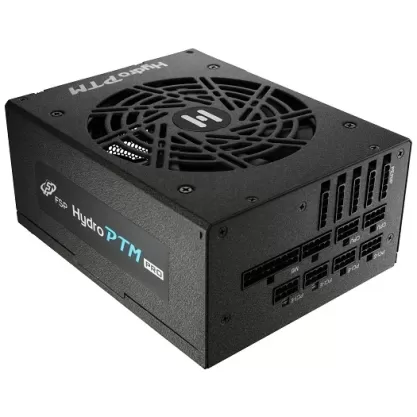

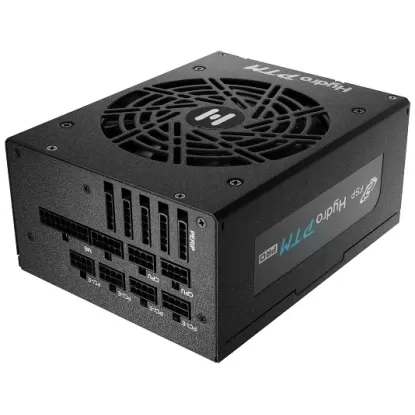

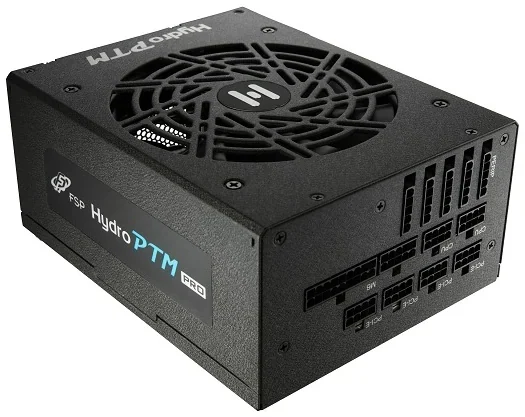

FSP Hydro PTM PRO 850W Power Supply

The FSP Hydro PTM PRO 850W (model HPT2-850M) is an ATX power supply with 80 Plus Platinum certification and 92% or higher efficiency at typical load. It uses an LLC full-bridge topology with DC-DC modules and keeps voltage regulation within ±1% above 10% load.

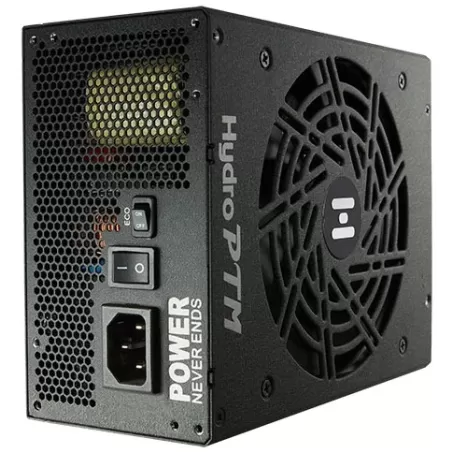

All cables are modular, so you connect only what you need. An Eco switch enables a mode in which the fan stays off up to 30% load, and the internal components carry a conformal coating tested at up to 95% relative humidity.

Key features

• 80 Plus Platinum - At least 92% efficiency at 50% load, which means less heat and less wasted power.

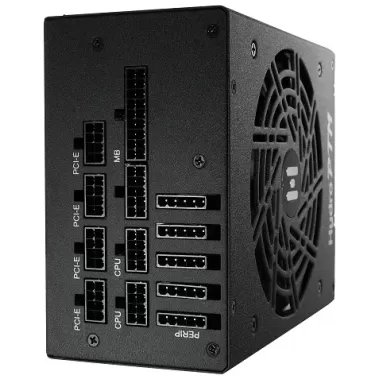

• Fully modular - Every cable is detachable, which makes the build easier and keeps the case tidy.

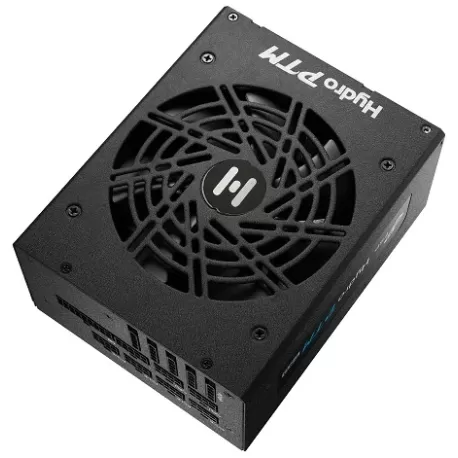

• Eco switch and FDB fan - In Eco mode the fan does not spin below 30% load. The 135 mm fan uses a fluid dynamic bearing for quiet, long-lasting operation.
• Single 12V rail - Up to 70.83A on a single 12V rail, with DC-DC modules for 3.3V and 5V and ±1% voltage regulation.

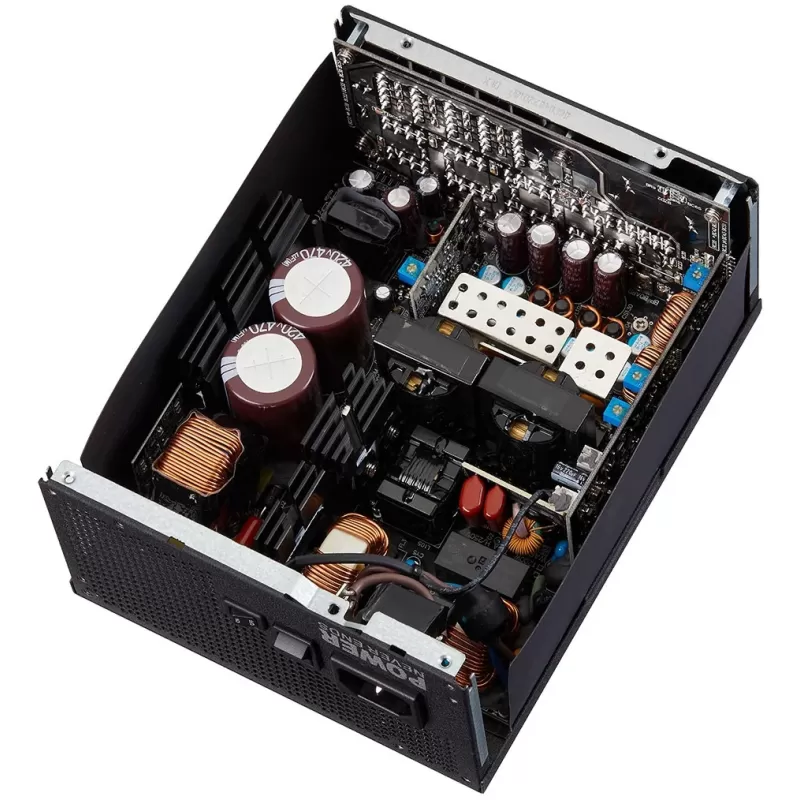

• Conformal coating and Japanese capacitors - A conformal coating protects against dust, humidity and stains, and the unit uses Japanese electrolytic capacitors.
• Full protection - OCP, OVP, SCP, OPP, OTP and UVP protect the rest of the system.

Specifications
