Power Supply Gamdias HELIOS E1-500 Non modular 500W 12V:384W

Power Supply Gamdias HELIOS E1-500

The GAMDIAS HELIOS E1-500 is a non-modular ATX12V v2.4 power supply with 500W total output, for building or upgrading a home, office or entry-level gaming PC. The 12V rail delivers up to 32A, or 384W for the CPU and graphics card, and efficiency reaches up to 80%.

It comes with a 20+4 motherboard cable, a 4+4 CPU connector, two PCI-E 6+2 connectors for a graphics card, five SATA, two Molex and a floppy connector, enough for drives and a graphics card with its own power input.

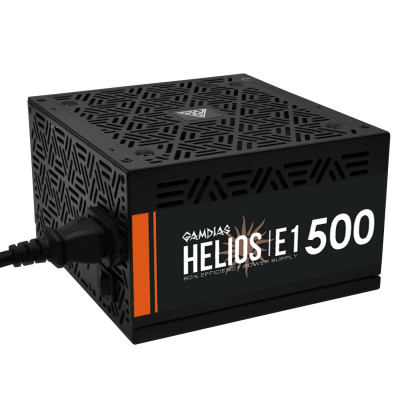

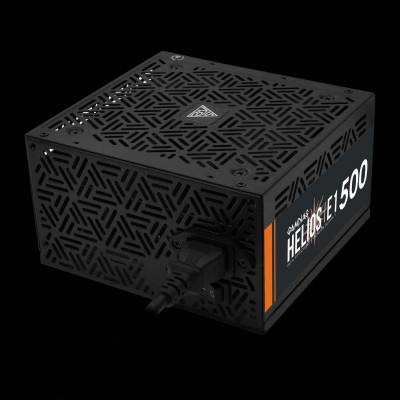

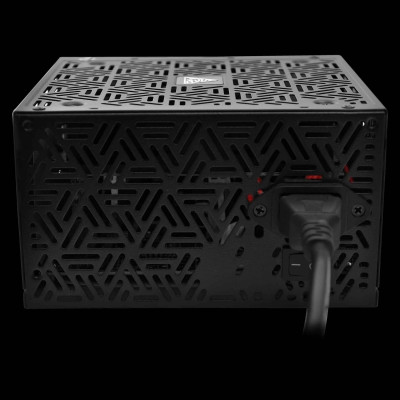

The black housing is perforated all over in GAMDIAS's geometric pattern with an orange side stripe and measures 140 x 150 x 86 mm. Support for C6/C7 power states and protection against over-voltage, under-voltage, over-power and short circuit keep the PC safe.

Key features

• 500W with 384W on 12V - 500W total with a 32A 12V rail delivering 384W to the main components: CPU and graphics card.
• Up to 80% efficiency - Efficiency of up to 80% to reduce heat and wasted power.

• Electrical protections - OVP, UVP, OPP and SCP guard against over-voltage, under-voltage, over-power and short circuit.
• C6/C7 support - Supports the C6/C7 low-power states of modern CPUs, so the PC can enter deep idle states without stability issues.

• Full connector set - ATX 20+4, CPU 4+4, two PCI-E 6+2, five SATA, two Molex and a floppy connector.
• Perforated GAMDIAS design - A geometric perforated pattern across the housing and an orange side stripe for a distinctive look in a windowed case.

Specifications
