Power Supply LIAN-LI SX1000P white SX1000P 80 Plus Platinum 1000W

Power Supply LIAN-LI SX1000P White 80 Plus Platinum 1000W

The LIAN LI SX1000P is a 1000W ATX power supply from the SX Platinum series in a white finish, 80 PLUS Platinum and PPLP Platinum certified with up to 94% efficiency at 50% load. It complies with ATX 3.1 and PCIe 5.1, supports power excursions up to 200% of its rated output and provides a 12V-2x6 connector for current graphics cards.

It suits powerful gaming PCs and workstations with high-end graphics, especially white builds: it is fully modular with braided cables and cable combs, and at only 140 mm long it also fits compact mATX cases.

Inside are Japanese Rubycon, Nippon Chemi-Con or Nichicon 105°C capacitors, a 120 mm FDB fan that stops completely up to 40% load (with a switch to enable or disable the mode), and OCP, OVP, OTP, OPP, SCP, UVP, NLP and SIP protection.

Key features

• 80 PLUS Platinum and PPLP Platinum - Up to 94% efficiency at 50% load reduces AC losses and heat, so the system runs cooler, quieter and more cost-effectively over time.
• ATX 3.1 and PCIe 5.1 - Supports power excursions up to 200% of rated output, with a 12V-2x6 connector using high-current copper-alloy terminals for stable power to new graphics cards.

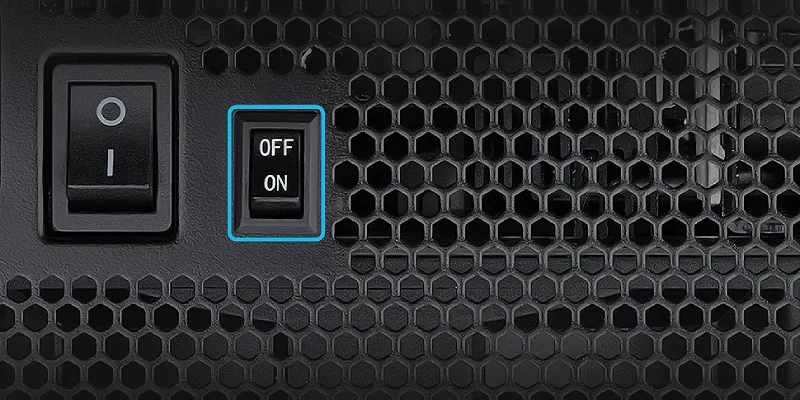

• Fanless mode - At or below 40% load the fan stops for silent operation, and a switch on the rear enables or disables the mode.

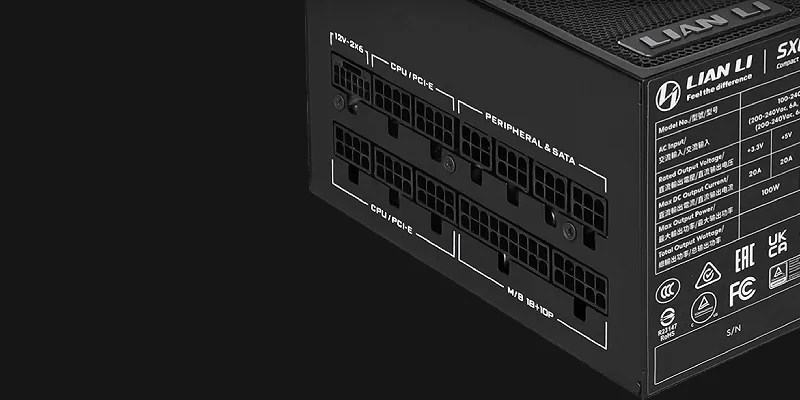

• Fully modular with braided cables - Install only the cables you need. Main cables are braided, and the 24-pin, CPU and 12V-2x6 cables include cable combs.
• Japanese 105°C capacitors - All electrolytic and solid capacitors come from Rubycon, Nippon Chemi-Con or Nichicon and are 105°C-rated, for stable voltage, lower ripple and long-term reliability.
• Only 140 mm long - A standard, short ATX form factor that fits a wide range of cases and leaves more room for cable routing.

• Multi-connector GPU support - Up to five PCIe 6+2 connectors: three PCIe cables plus two 12V-2x6 to dual PCIe 6+2 cables on the 1000W and 1200W models.
