Case Cooler Master MASTERBOX NR200P black Mini-ITX

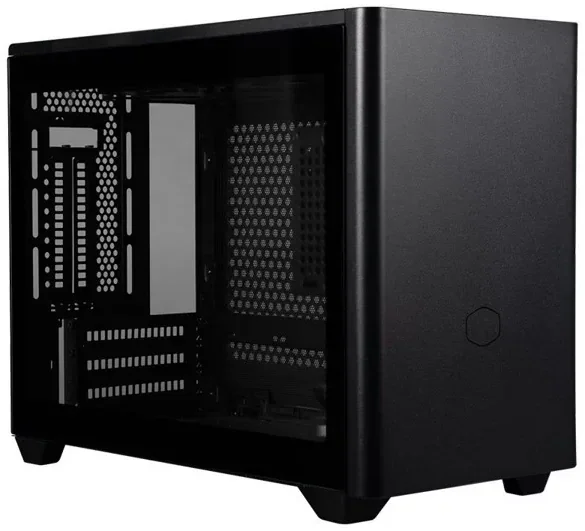

Cooler Master MASTERBOX NR200P Black Mini-ITX Case

The Cooler Master MasterBox NR200P is a small form factor case for Mini-ITX systems that brings features usually found in large ATX cases into a volume of only about 18 liters. Every part of the interior is laid out for component compatibility, airflow and easy assembly, and the frame is wrapped in black powder-coated steel.

Two side panels are included: a vented steel panel for maximum airflow and a clear tempered glass panel to show off the hardware. The case accepts graphics cards up to 330 mm long and three slots thick, SFX and SFX-L power supplies and up to 7 fans, and it comes with a riser cable for vertical GPU mounting.

Key features

• Two side panels in the box - Choose between a vented steel panel that improves airflow and a clear tempered glass panel that shows off the components. Both panels are included, so you can switch between them at any time.
• Big graphics card in a small case - Triple-slot graphics cards up to 330 mm long and 156 mm high are supported. A PCIe 3.0 x16 riser cable is included for vertical mounting. On a PCIe 4.0 motherboard, set the slot to PCIe 3.0 in the BIOS before using it.
• Up to 7 fans and a 280 mm radiator - Two SickleFlow 120mm PWM fans come installed on top. The side takes a radiator up to 280 mm and the bottom a radiator up to 240 mm, while air coolers up to 155 mm tall fit on the CPU.
• Ready for custom liquid cooling - Two pump mounting locations, together with side and bottom radiator positions, allow powerful custom water-cooled builds inside a compact enclosure.
• Tool-free access - All external panels, including the tempered glass and the top fan bracket, are held by pins and come off without tools. The frame parts are screwed together and can be dismantled, so you can work inside from any angle.
• SFX power and storage - SFX and SFX-L power supplies up to 130 mm long are supported, along with one 3.5" drive (up to 2), a 2.5"/3.5" combo bay and two 2.5" bays (up to 3).

Specifications

In the box

• Cooler Master MasterBox NR200P case
• Tempered glass side panel
• Vented steel side panel
• PCIe 3.0 x16 riser cable
