Case Fan Antec Nova 120 120mm PWM white Fan

Case Fan Antec Nova 120 120mm PWM White Fan

The Antec Nova 120 White is a 120x120x25 mm PWM case fan in white with a three-phase six-pole motor and an FDB bearing. It spins up to 3200 RPM with up to 95.32 CFM of airflow and up to 6.56 mmH2O of static pressure, so it also suits radiators and dense heatsinks.

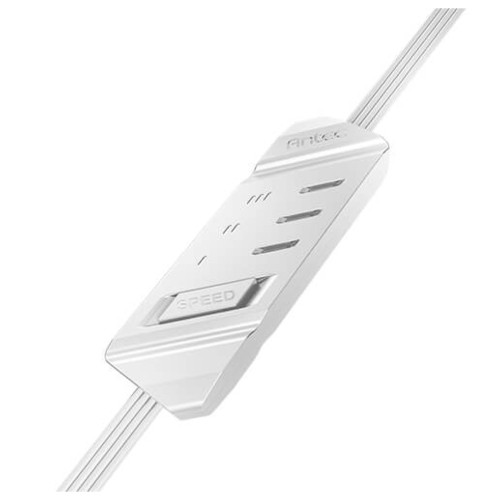

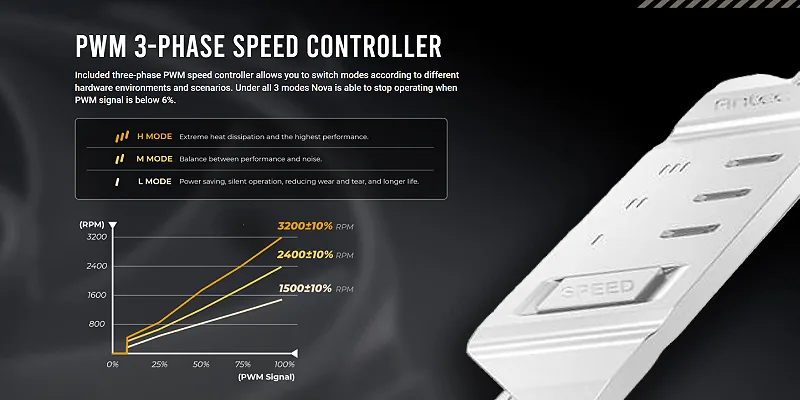

The included speed controller switches between three modes: L for quiet, power-saving use (up to 1500 RPM, 21.5dB(A)), M for balance (up to 2400 RPM) and H for maximum cooling (up to 3200 RPM). In all modes the fan stops when the PWM signal falls below 6%.

Frame and blades are made of industrial-grade Liquid Crystal Polymer (LCP), with 9 curved blades, only 0.5 mm of clearance between blades and frame, a metal shaft and a neodymium magnet that stabilizes rotation. Eight rubber pads and recessed corners cut vibration and noise.

Key features

• 3-mode PWM speed controller - Included controller for L (up to 1500 RPM), M (up to 2400 RPM) and H (up to 3200 RPM), with a full stop when PWM is below 6%.
• Three-phase six-pole motor - More power and torque, quick start-up, less noise and vibration, and closed-loop PWM with speed compensation.
• Metal shaft and neodymium magnet - An industrial-grade metal structure and a strong magnet at the base of the frame curb displacement at high speed and keep the fan stable.
• 9 blades, 0.5 mm clearance - CFD-designed curved blades and just 0.5±0.1 mm between blades and frame for a larger effective cooling area and higher pressure.
• LCP material - Blades and frame of strong Liquid Crystal Polymer for good heat dissipation, low noise and high durability.

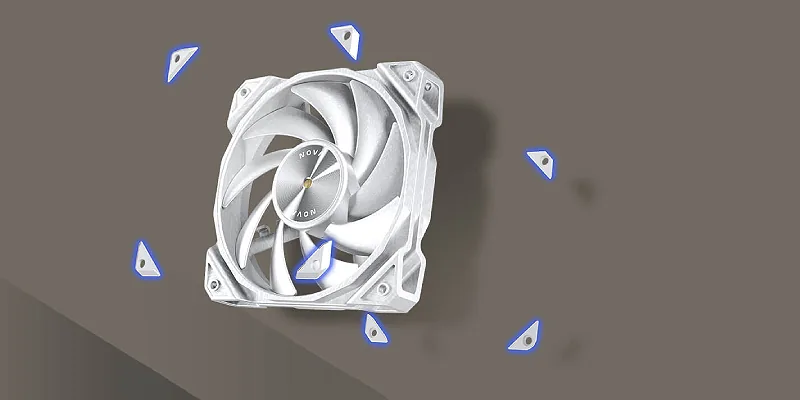

• Less vibration and noise - 8 rubber pads, exterior ribs and recessed corners that cut the contact area by 72%.
• PWM sharing and dustproof design - Daisy-chain several fans to one connection, and an enclosed drive that keeps dust out and extends fan life.

Specifications
