Case Fan Noctua NF-A12x25 G2 PWM Sx2-PP 2x120mm

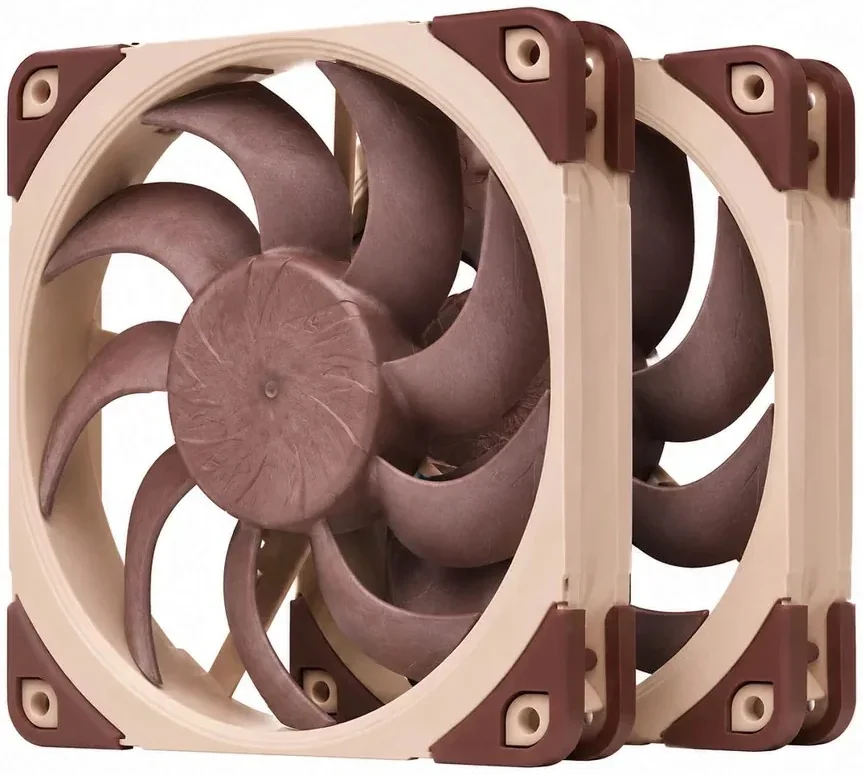

Noctua NF-A12x25 G2 PWM Sx2-PP 2x120mm Case Fan Set, Beige

The Noctua NF-A12x25 G2 PWM Sx2-PP is a set of two 120 x 25 mm fans from the new generation of the NF-A12x25 series, suited to case fan, CPU cooler and liquid cooling radiator use. The set is made specifically for push-pull setups and for two fans running side by side.

The two fans run at speeds that differ by about 50 RPM to avoid unwanted acoustic effects when they work together. They are built for high quiet performance in both high airflow and high static pressure applications.

Key features

• A push-pull set of two fans - Two NF-A12x25 G2 PWM fans whose speeds differ by about 50 RPM to avoid unwanted acoustic effects. Suited to push-pull setups and to situations where two or more fans run side by side, for example on a 240 or 360 mm radiator.
• New generation 120 x 25 mm design - A Progressive Bend blade with winglets and a Centrifugal Turbulator, Flow Acceleration channels, an AAO frame and Sterrox LCP construction with extremely tight tip clearance, for quiet cooling at high static pressure and high airflow.
• Speed, airflow and noise - A speed of up to 1800 RPM, airflow of up to 107.3 m³/h (63.15 CFM), static pressure of up to 3.14 mmH2O and noise of up to 22.5dB(A).
• Low-noise adapter - With the low-noise adapter (LNA) the maximum speed drops to 1500 RPM, noise to 18.1dB(A) and airflow to 87.2 m³/h (51.32 CFM).
• PWM connector and SSO2 bearing - A 4-pin connector for 12V PWM speed control, a premium SSO2 bearing (MTTF above 150,000 hours), UL and TÜV certifications, and protection against reverse polarity, over voltage and over current.
