Case Fan Noctua NF-A12x25 LS-PWM 120mm Color:Brown

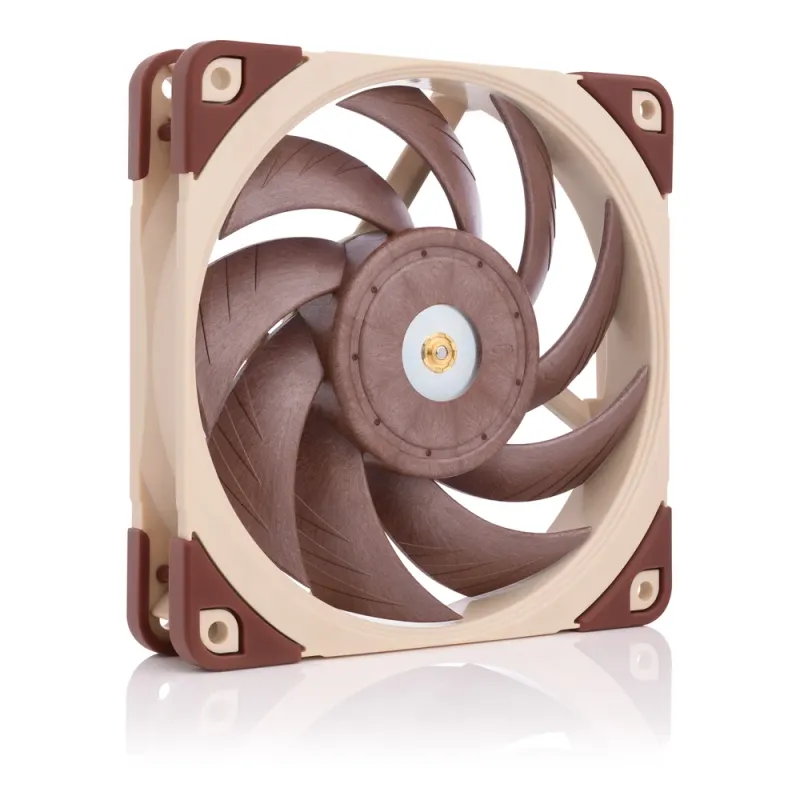

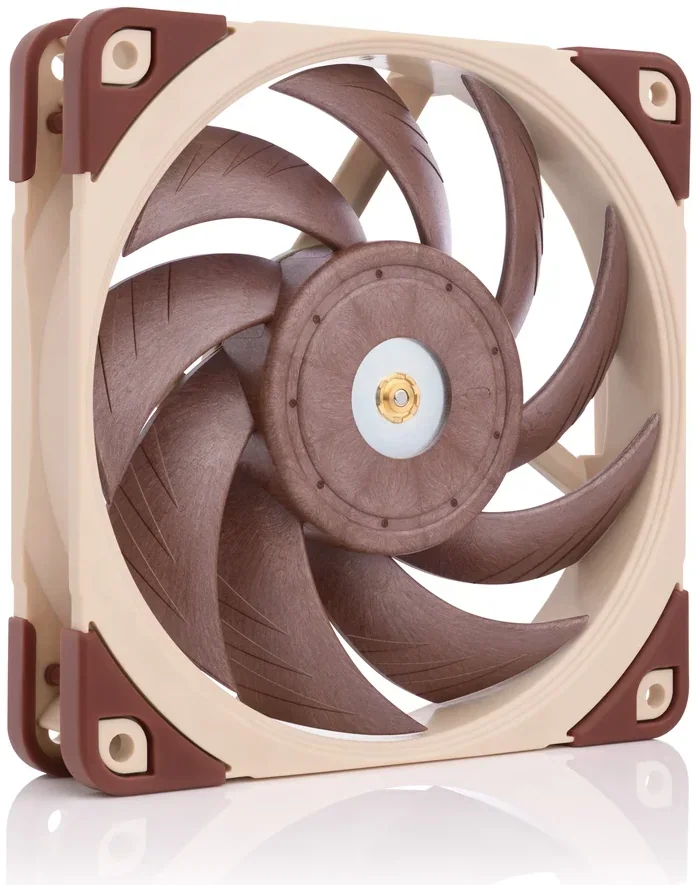

Noctua NF-A12x25 LS-PWM 120mm Case Fan

The Noctua NF-A12x25 LS-PWM is the low-speed version of the NF-A12x25, with Sterrox LCP blades and a tip clearance of only 0.5 mm. Top speed is 1200 rpm, and the fan stops completely when the PWM signal drops to 0%.

It suits quiet and semi-passive builds, case fans, CPU coolers and water-cooling radiators. The box includes a low-noise adaptor, a PWM splitter, an extension cable, anti-vibration mounts and a radiator gasket.

Key features

• Very quiet - Maximum 12.1 dB(A) at 1200 rpm, and only 7.6 dB(A) with the included L.N.A. adaptor (900 rpm).
• Stops at 0% PWM - The fan stops at 0% PWM and spins at 200 rpm at 20%, ideal for semi-passive setups.
• Sterrox LCP impeller - Glass-fiber reinforced LCP and a 0.5 mm tip clearance keep static pressure strong even at low speed.
• SSO2 bearing - Magnetically stabilized SSO2 bearing with MTTF over 150,000 hours, plus locked-rotor and polarity protection.
• Accessories included - NA-RC8 low-noise adaptor, PWM splitter, 30 cm extension cable, 4 anti-vibration mounts, radiator gasket and screws.
• Low power draw - 0.396W typical and 0.6W max at 12V.

Specifications

In the box

• Noctua NF-A12x25 LS-PWM fan
• NA-RC8 Low-Noise Adaptor (L.N.A.)
• NA-YC1 4-pin PWM splitter
• NA-EC1 30 cm extension cable
• 4 x NA-AV2 anti-vibration mounts
• NA-AVG1 radiator anti-vibration gasket
• Fan screws
