CPU Cooling CoolJag JACLR02C 1U LGA2011 Square

CoolJag JACLR02C 1U LGA2011 Square Server CPU Cooler

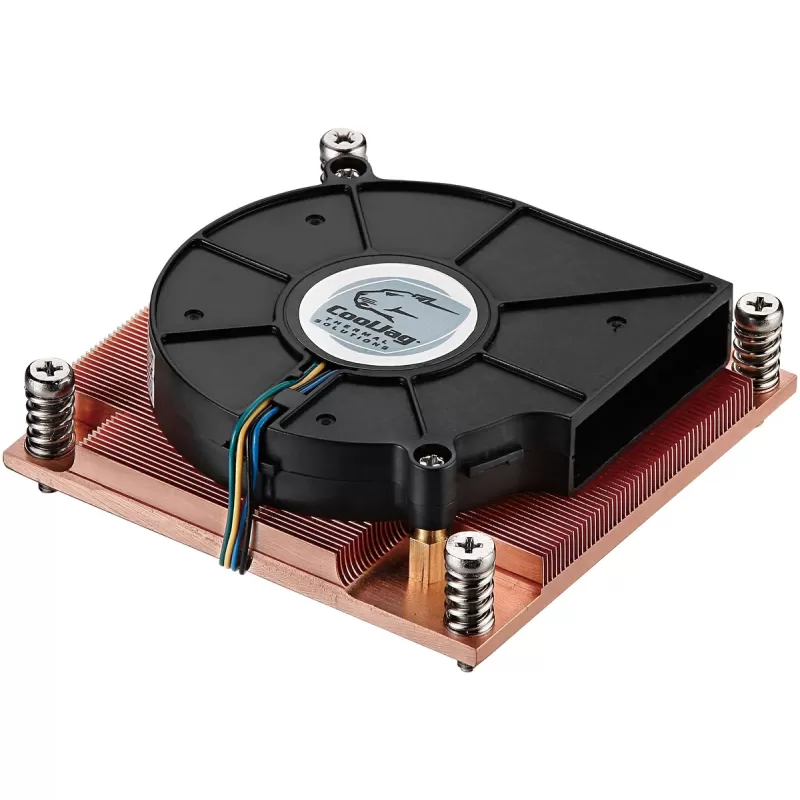

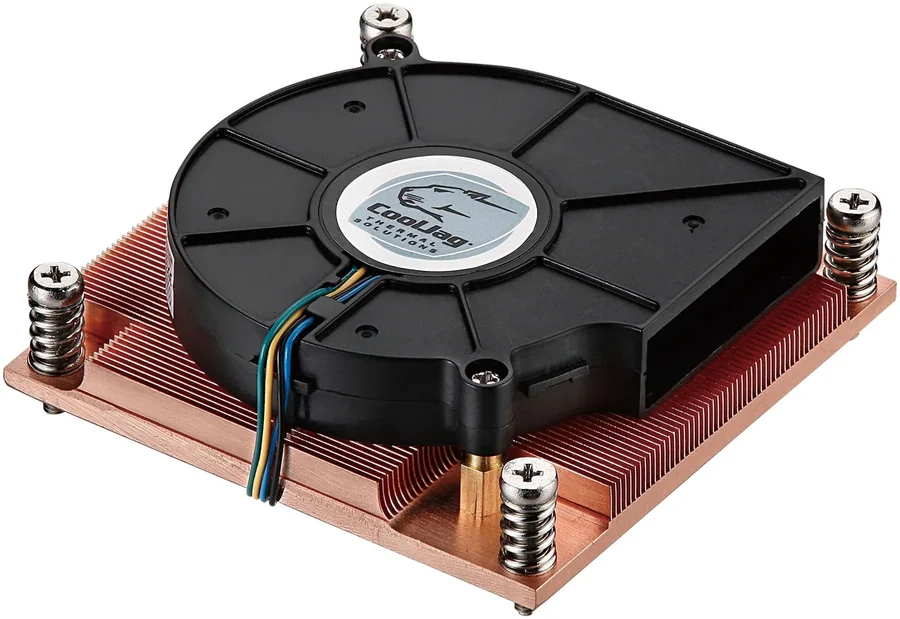

The CoolJag JACLR02C is a very low-profile active cooler for 1U servers with Intel Xeon processors on LGA 2011 with the square ILM. The heatsink is made of copper and carries a 75 x 75 x 15 mm blower that pushes air through the fins, for a total height of only 27 mm.

The cooler is rated for processors with a TDP up to 95W. The blower runs on 12V DC with two ball bearings, at up to 5500 RPM and 11.83 CFM airflow. It measures 90 x 90 x 27 mm and weighs 472 g.

Key features

• For 1U servers - Total height of only 27 mm, fits 1U chassis.
• LGA 2011 Square - For Intel Xeon processors on LGA 2011 with the square ILM.
• Copper heatsink - Copper body for efficient heat transfer.
• PWM blower - 75 x 75 x 15 mm blower with two ball bearings, up to 5500 RPM.
• 95W TDP - Rated for processors with a thermal design power up to 95W.

Specifications
