CPU Cooling DEEPCOOL AN600 Low Profile black

DEEPCOOL AN600 Low Profile Black CPU Cooler

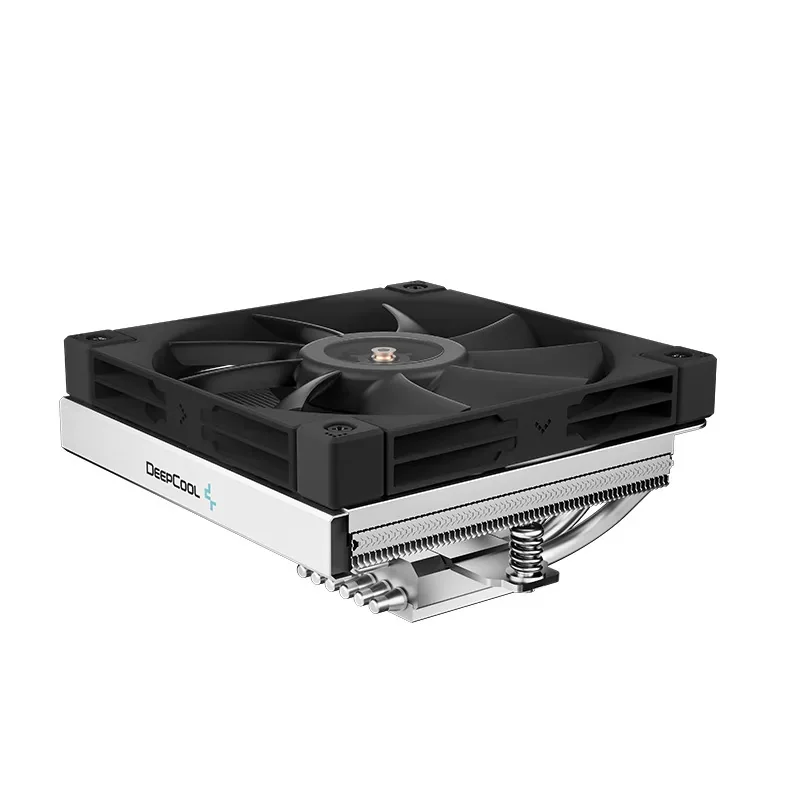

The DeepCool AN600 is a CPU air cooler with a low profile of only 67 mm and a top-flow design in which the fan blows air down onto the processor. It suits small cases, including ITX cases, and delivers cooling for up to 180W.

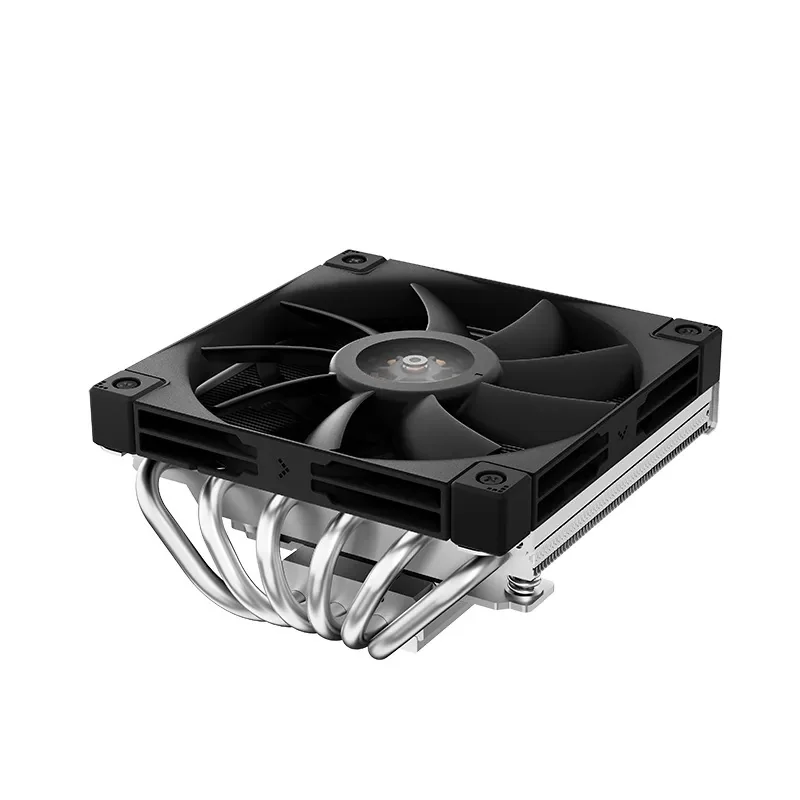

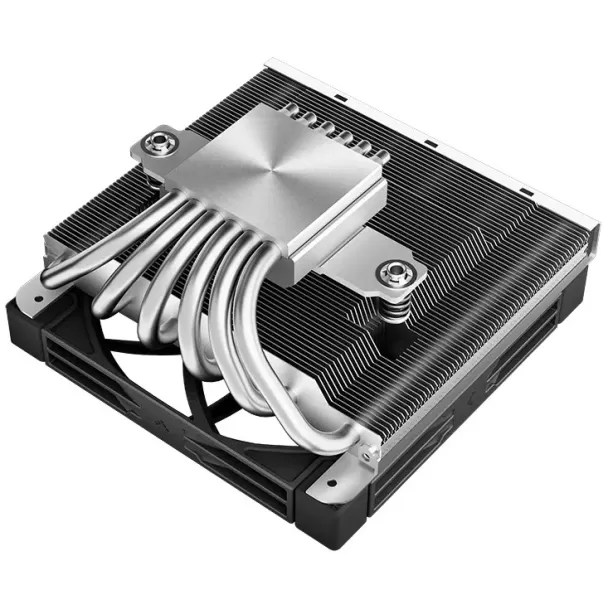

The heatsink has six 6 mm heat pipes, a raised copper cold plate and 62 aluminum fins. The 120mm fan also cools the memory modules and the VRM components around the processor.

Key features

• 67 mm low profile - A total height of 67 mm, in a design made for small cases and ITX cases.
• Cooling for up to 180W - Six heat pipes, a raised copper cold plate and 62 aluminum fins carry heat away from the processor.
• Cools memory too - Top-down airflow also cools the memory and VRM. The overhanging design allows memory modules up to 40 mm tall.

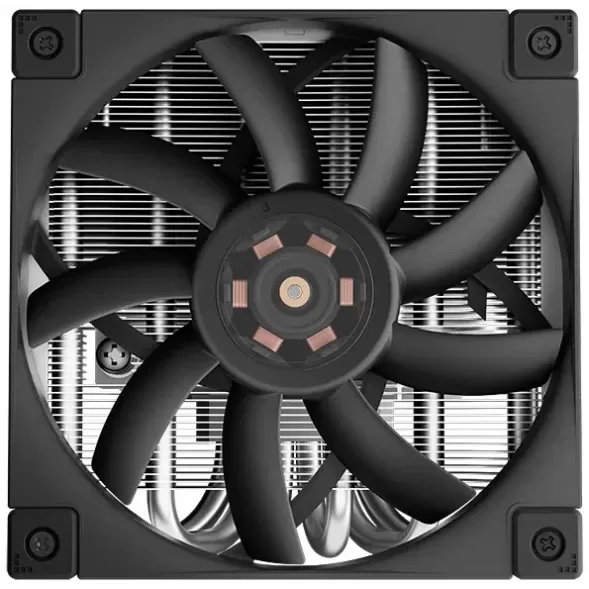

• Quiet PWM fan - A 120mm, 15 mm thick FDB fan runs from 500 to 1850 RPM, delivering up to 61.56 CFM of airflow at up to 24.4 dB(A).

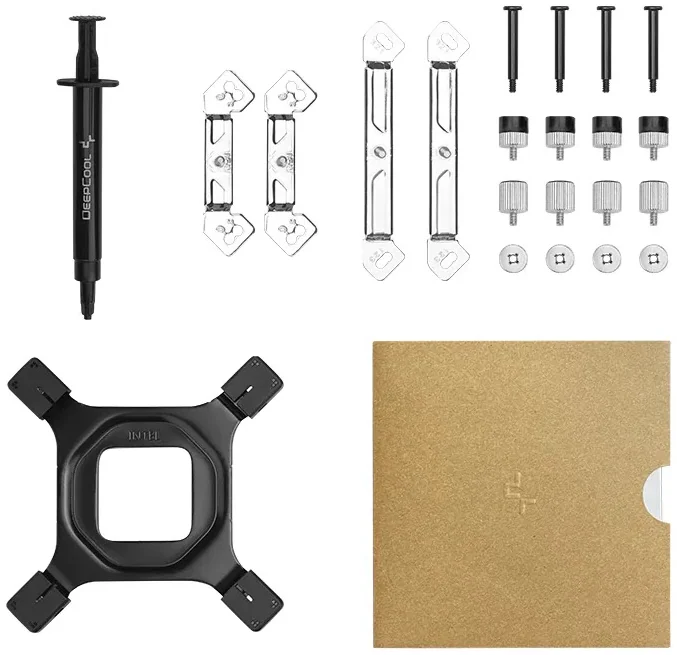

• Wide compatibility and metal backplate - Supports current Intel and AMD sockets and includes an all-metal backplate that spreads pressure and reinforces the area behind the CPU.

Specifications
