Fan Controller Zalman ZM-PWM10FH 10-Port PWM Controller ZM-PWM10FH

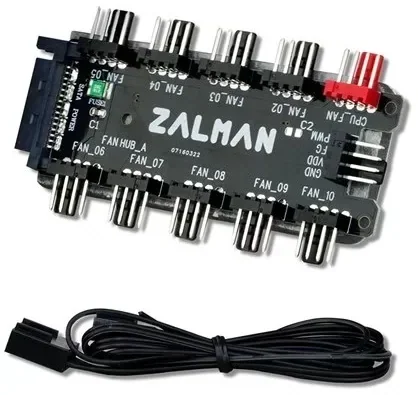

Zalman ZM-PWM10FH 10-Port PWM Controller

The Zalman ZM-PWM10FH lets you connect up to 10 fans and control all of them from a single fan header on the motherboard. The motherboard sends the PWM signal and the hub passes it to every connected fan, so they all speed up and slow down together with the temperature.

Power for the fans comes straight from the power supply through a 12V SATA connector instead of the motherboard header, so the connection stays stable even with many fans. The hub supports 4-pin PWM fans and also 3-pin fans, which receive power but are not PWM controlled. It measures 90 x 46 x 12 mm and weighs only 18 g.

Key features

• 10 fan ports - Connect up to 10 fans to one hub and build a complete cooling setup in your case.
• PWM control from the motherboard - 4-pin fans receive the PWM signal from one motherboard header, so you set the speed of all of them together in the BIOS or motherboard software.
• 12V SATA power - Power comes from the PSU, not from the motherboard, at 12V with a 2.6A rated current for a stable, strong connection.
• 3-pin fans too - You can also connect 3-pin non-PWM fans. They get power, but their speed is not PWM controlled.
• Small and light - Only 90 x 46 x 12 mm and 18 g for easy installation inside the case.

Specifications
