Thermal pad Thermal Grizzly Minus Pad High Compression 3mm 2pcs TG-MP-HC-120-100-30-2 Color:gray

Thermal Pad Thermal Grizzly Minus Pad High Compression 3mm 2pcs

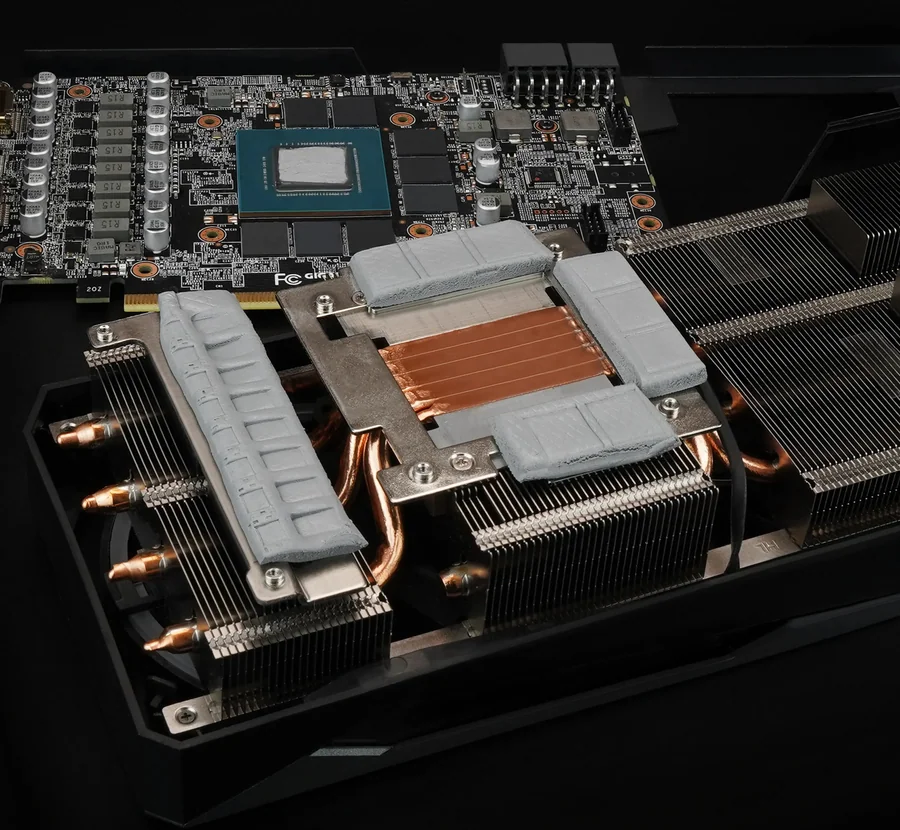

Thermal Grizzly Minus Pad High Compression thermal pads offer very high compressibility and adapt to height differences between components. In many cases this lets you use one pad thickness for several contact points on the same cooler, such as VRAM, voltage regulators and other contact surfaces on a graphics card.

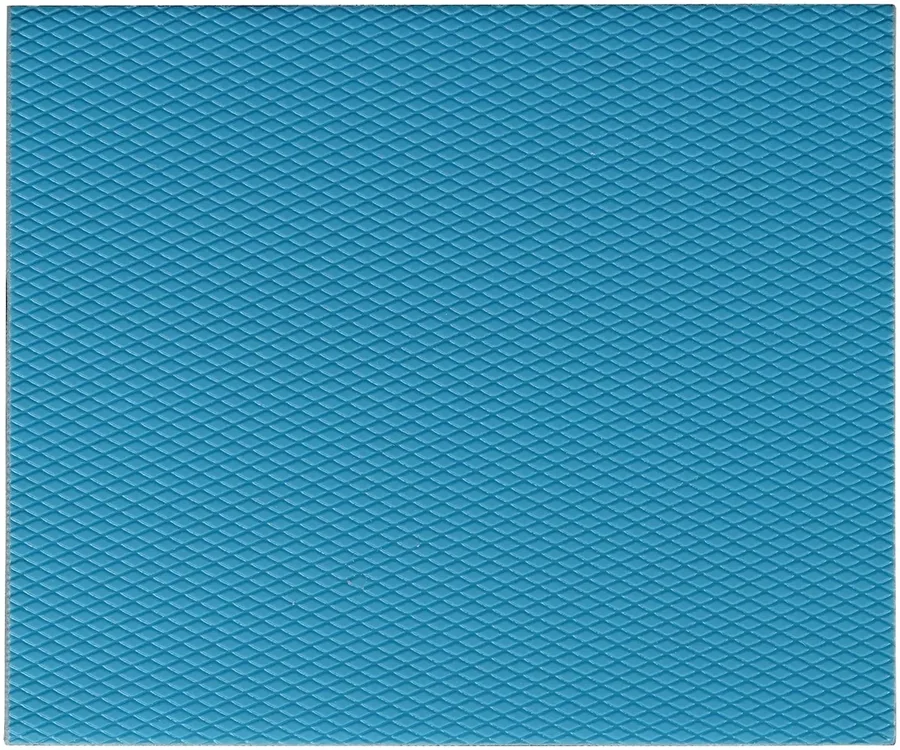

The set contains two 120 x 100 mm pads, 3 mm thick. They are especially useful when converting a graphics card to a water block or replacing the pads of a GPU cooler. According to the manufacturer, the pads keep good thermal conductivity under heavy compression, and conductivity can even increase with contact pressure. Choose a thickness slightly above the measured gap, and do not use thick pads in laptops with low contact pressure.

Key features

• Very high compressibility - The material compresses easily and bridges varying height differences, so one thickness can serve several components on the same cooler.
• Conductivity under pressure - The pads keep efficient heat transfer under heavy compression, and per the manufacturer conductivity can even rise with contact pressure.
• Electrically non-conductive - The material does not conduct electricity and suits use around VRAM, voltage regulators and other electronic components.
• Large sheets to cut - Two 120 x 100 mm pads, 24,000 mm² in total, to cut to the required shape.
• Choosing the thickness - Pick a pad one step thicker than the stock pad, for example 3 mm instead of 2.4 mm, and make sure the GPU die still contacts the cooler directly.
