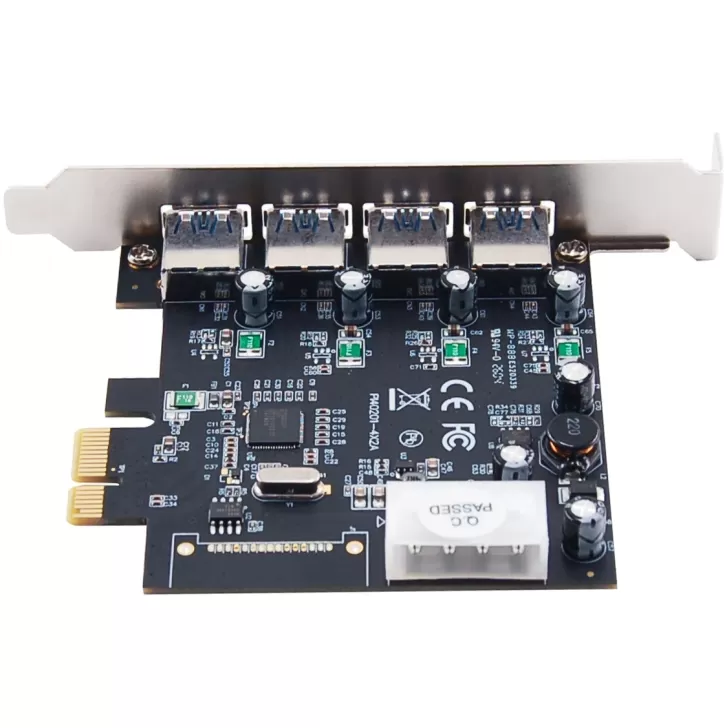

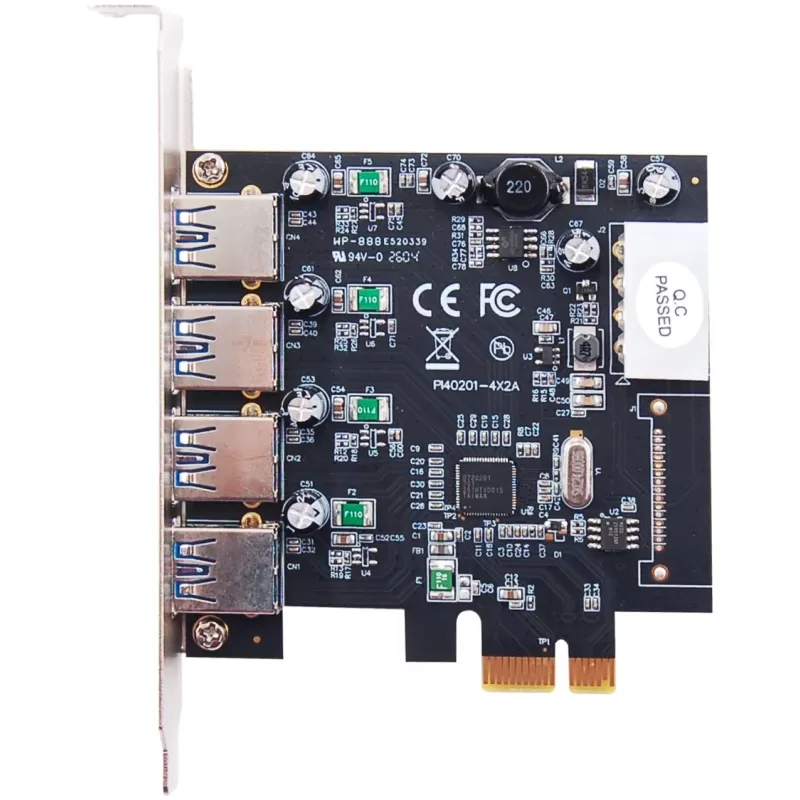

Expansion Card St-Lab 4 Ports PCIe USB3.0 ST-U-1270

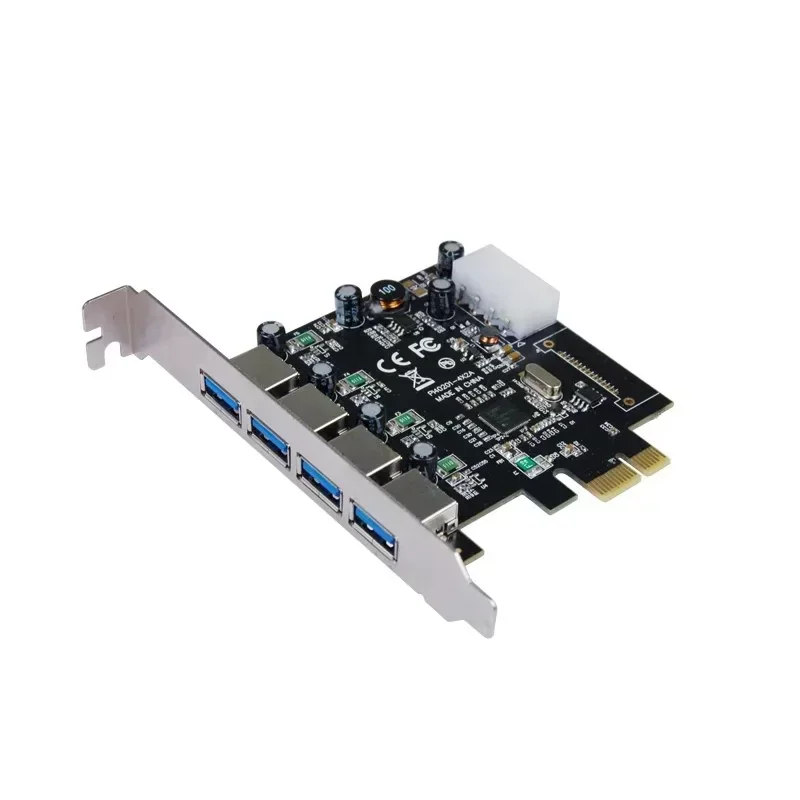

St-Lab 4 Ports PCIe USB3.0 Card

The St-Lab U-1270 is a PCI Express x1 card that adds four USB 3.0 Type-A ports to a desktop computer. It suits external drives, external DVD writers, card readers, digital cameras, webcams and any other USB device.

The card is based on the uPD720201 controller, complies with PCI Express 2.0 and xHCI 1.0, and reaches up to 5Gbps with USB 3.0 devices while staying compatible with USB 2.0 and USB 1.1. A 4-pin power connector takes extra power from the computer's power supply, and the card supports the USB Battery Charging 1.2 specification.

Key features

• Four USB 3.0 ports - Four Type-A ports work at all speeds, with USB 3.0, USB 2.0 and USB 1.1 devices running at the same time.
• Up to 5Gbps - Transfer speeds of up to 5Gbps in a PCIe x1 slot, ten times USB 2.0 according to the manufacturer.
• 4-pin power connector - A connection to the computer's power supply provides extra power for the attached devices.
• BC 1.2 charging - Supports the USB Battery Charging 1.2 specification for charging devices through the ports.
• Hot swapping - Devices can be connected and disconnected without powering down the computer.

Specifications

In the box

• PCIe USB 3.0 4-port card
• User manual
