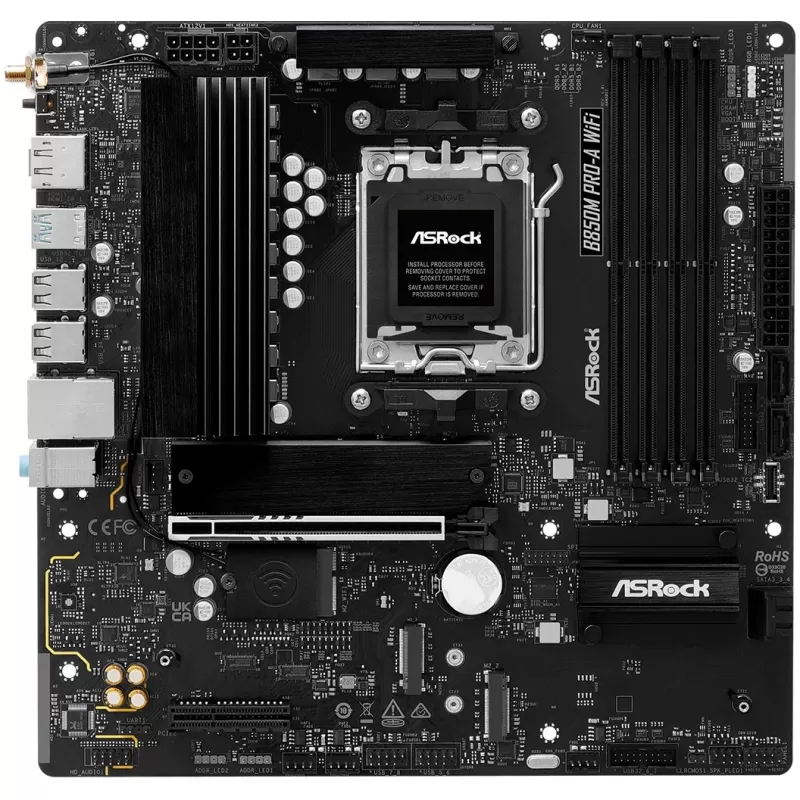

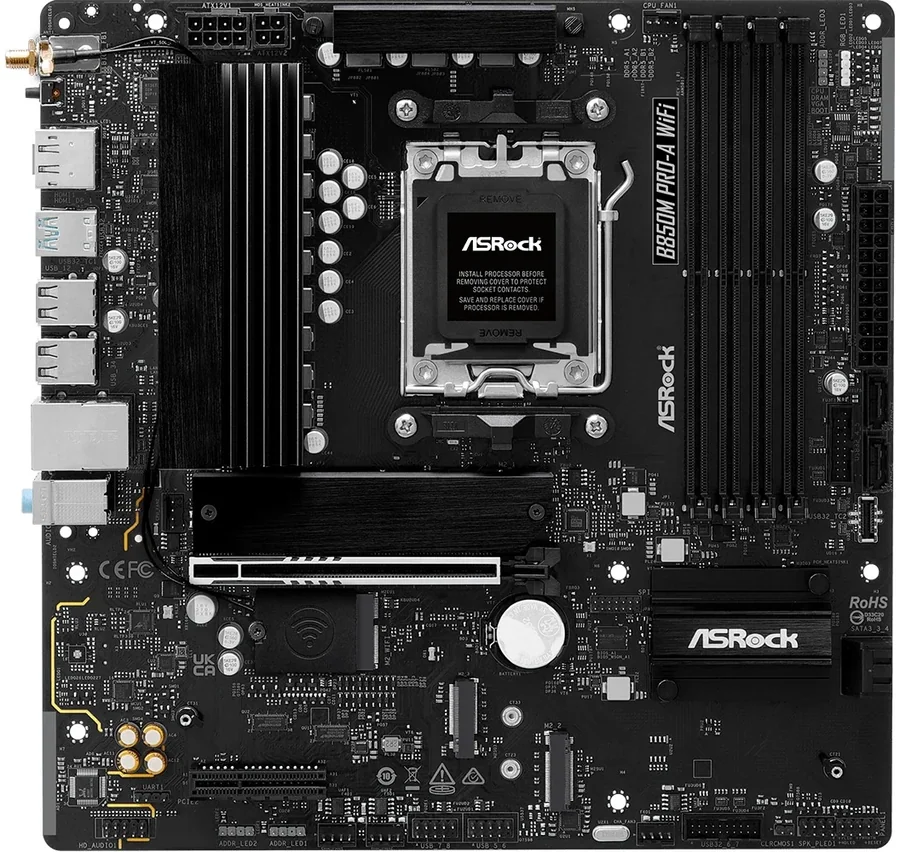

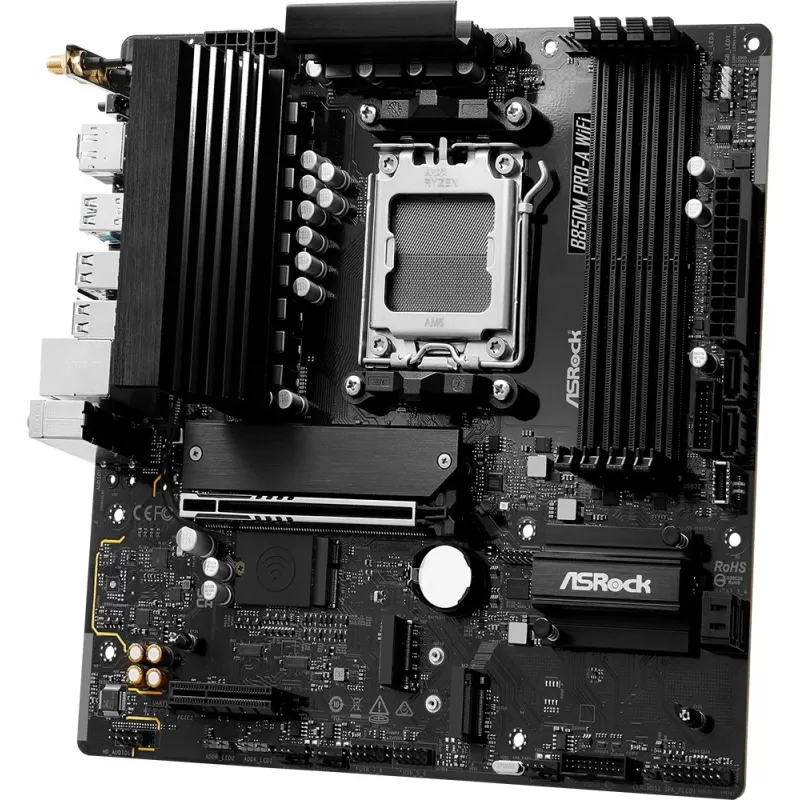

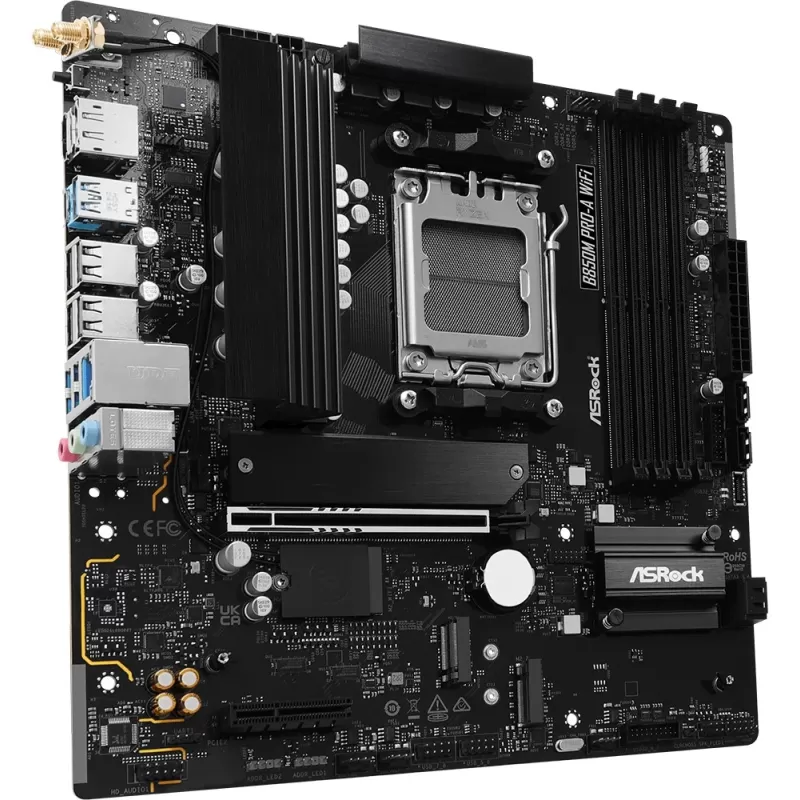

| Revew | ASRock B850M Pro-A WiFi MotherboardThe ASRock B850M Pro-A WiFi is a Micro ATX (24.4 x 24.4 cm) motherboard for socket AM5 that supports AMD Ryzen 9000, 8000 and 7000 series processors. It is based on the AMD B850 chipset and suits everyday PCs, work systems and gaming builds. The board has four DDR5 slots for up to 256GB of memory, a PCIe 5.0 x16 graphics slot, three M.2 slots (one of them PCIe 5.0) and four SATA ports. It also brings 2.5 Gigabit LAN, Wi-Fi 6E and Bluetooth 5.2, plus HDMI and DisplayPort outputs for the processor's integrated graphics.
Key features- 8+2+1 phase power - Dr.MOS stages for VCore, SOC and MISC and a 6-layer PCB deliver stable power to the processor and memory.
- DDR5 up to 8000+ (OC) - Four dual-channel DDR5 slots for up to 256GB with XMP and EXPO profile support. The board also supports unbuffered ECC memory.
- PCIe 5.0 for graphics and storage - A PCIe 5.0 x16 slot with 15μ gold contacts and a Blazing M.2 PCIe Gen5x4 slot at up to 128Gb/s. Two Hyper M.2 PCIe Gen4x4 slots and four SATA3 ports with RAID complete the storage.
- Wired and wireless networking - Dragon 2.5G LAN based on Realtek RTL8125BG, a 2x2 Wi-Fi 6E module and Bluetooth 5.2. Two antennas are included.

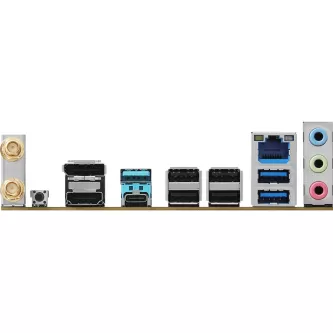

- Plenty of USB - The rear panel has USB 3.2 Gen2 Type-C and Type-A, two USB 3.2 Gen1 and four USB 2.0 ports. Internal headers add a front USB-C port and more USB ports for the case.
- Cooling, lighting and BIOS Flashback - Aluminum heatsinks, 2 CPU fan and 3 chassis fan headers, one RGB and three ARGB headers with Polychrome RGB, and a BIOS Flashback button on the rear panel.
Specifications| Manufacturer | ASRock | | Model | B850M Pro-A WiFi | | Part number | 90-MXBR90-A0UAYZ | | Form factor | Micro ATX, 24.4 x 24.4 cm | | Socket | AM5 | | Supported processors | AMD Ryzen 9000, 8000, 7000 | | Chipset | AMD B850 | | Memory | 4 x DDR5 DIMM, dual channel, up to 256GB, up to 8000+ (OC), ECC/non-ECC unbuffered | | Expansion slots | PCIe 5.0 x16, PCIe 4.0 x4, M.2 Key E for Wi-Fi | | Storage | M.2 PCIe Gen5x4, 2 x M.2 PCIe Gen4x4, 4 x SATA3 | | RAID | 0, 1, 10 for SATA and NVMe | | Video outputs | HDMI 2.1 and DisplayPort 1.4, up to 4K 120Hz (integrated graphics) | | Audio | Realtek ALC897, 7.1 channel | | LAN | Realtek RTL8125BG, 2.5 Gigabit | | Wireless | Wi-Fi 6E 802.11ax 2x2, Bluetooth 5.2 | | Rear USB | USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0 | | Internal USB headers | Front USB-C Gen1, 2 x USB 3.2 Gen1 (4 ports), 2 x USB 2.0 (4 ports) | | Fans and lighting | 2 x CPU, 3 x chassis (4-pin), RGB x 1, ARGB x 3 | | Power connectors | 24-pin ATX, 8-pin + 4-pin 12V | | Operating system | Windows 10/11 64-bit |

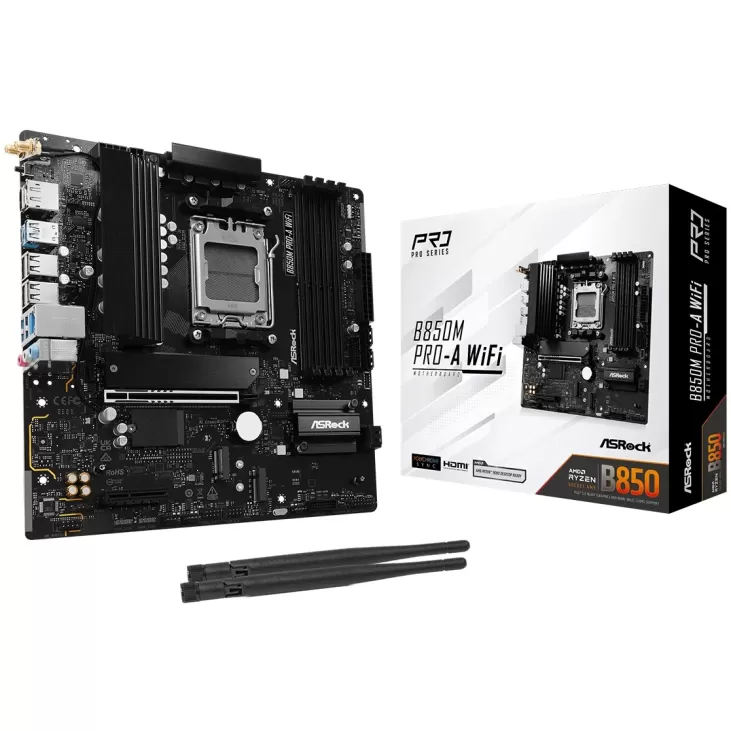

In the box- ASRock B850M Pro-A WiFi motherboard
- I/O shield
- 2 SATA data cables
- 2 Wi-Fi antennas
|
