- Наличие: In stock at supplier: delivery to branch within: 4 business days
- Print:
- Brand: Asus
- SKU: 54622
- MPN: 90MB1FI0-M0EAY0
Related Products
| Specification | |
| Revew | Asus PRIME B760M-K Motherboard - LGA1700, Micro ATXThe Asus PRIME B760M-K is a Micro ATX board built on the Intel B760 chipset and aimed at systems running 12th, 13th and 14th generation Intel Core processors. It is engineered to draw out the strengths of those CPUs while keeping the build compact and tidy. Platform & chipsetAt its core sit the Intel LGA 1700 socket and the B760 chipset, covering Core processors from the 12th through 14th generations. Asus highlights a strong power-delivery design and smart tuning through intuitive firmware and software, so the platform is also prepared for advanced AI-driven computing workloads.
Memory & expansionThe board runs DDR4 memory and provides fast connectivity that includes a PCIe 4.0 interface. Storage is served by two M.2 slots in PCIe 4.0 form for quick NVMe drives, with SATA3 ports on hand for additional disks. That mix allows a flexible storage layout inside a small footprint. Power, cooling & connectivityCooling hardware brings a VRM heatsink and a PCH heatsink together with hybrid fan headers and Fan Xpert 2+ software for thermal control. Networking is handled by Realtek 2.5Gb Ethernet, and a front USB 3.2 Gen 1 header is supported. Onboard Aura Sync RGB with Addressable Gen 2 headers lets you sync lighting with compatible gear.
|
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | 90MB1FI0-M0EAY0 |
| Model | PRIME B760M-K |
| Condition | New |
| Video Card | VGA / HDMI |
| Manufacturer | Asus |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

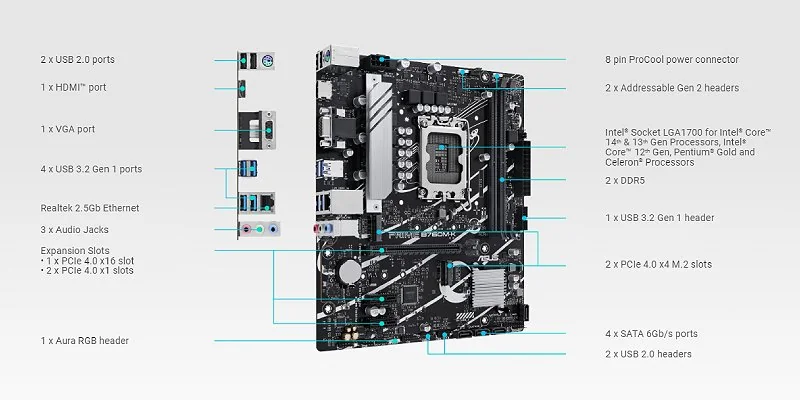

| Back Panel Connectors | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMITM&port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Chipset | B760 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | Micro ATX |
| Dimensions | 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Interface | USB 2.0 / USB 3.2 |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel®&Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit&https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Memory Interface | SATA3 / M.2 PCIe |
| Memory Type | DDR5 DIMM |
| Socket | LGA1700 |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®&13th&& 12th&Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®&B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel®&Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Wired Communication | 1 x Realtek 2.5Gb Ethernet |
| Series | Prime |

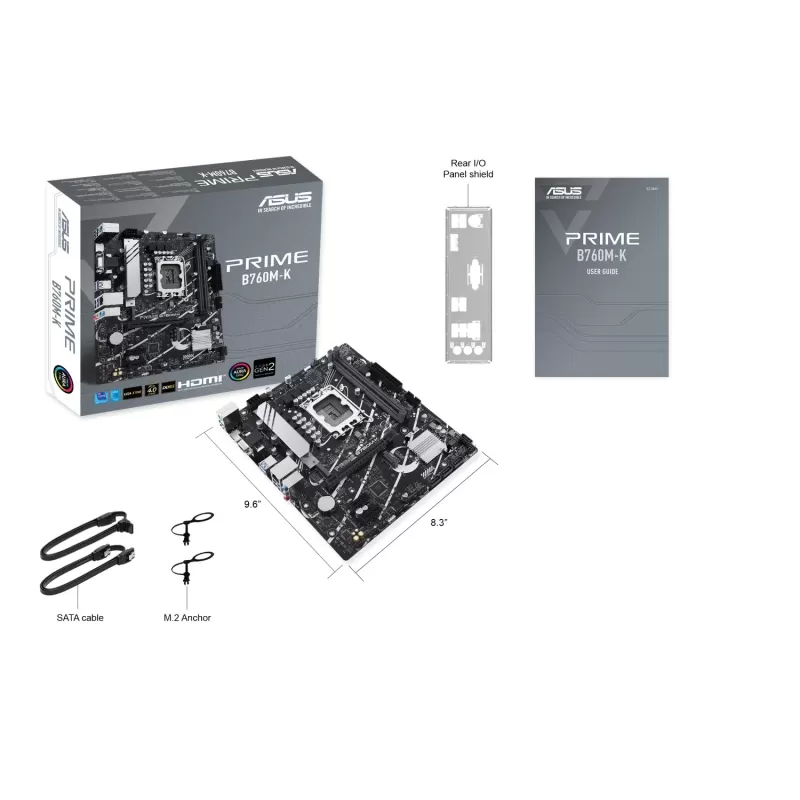

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus Prime PRIME B760M-K DDR5 DIMM LGA1700 |
