Motherboard BIOSTAR H610MH D5 DDR5 LGA1700

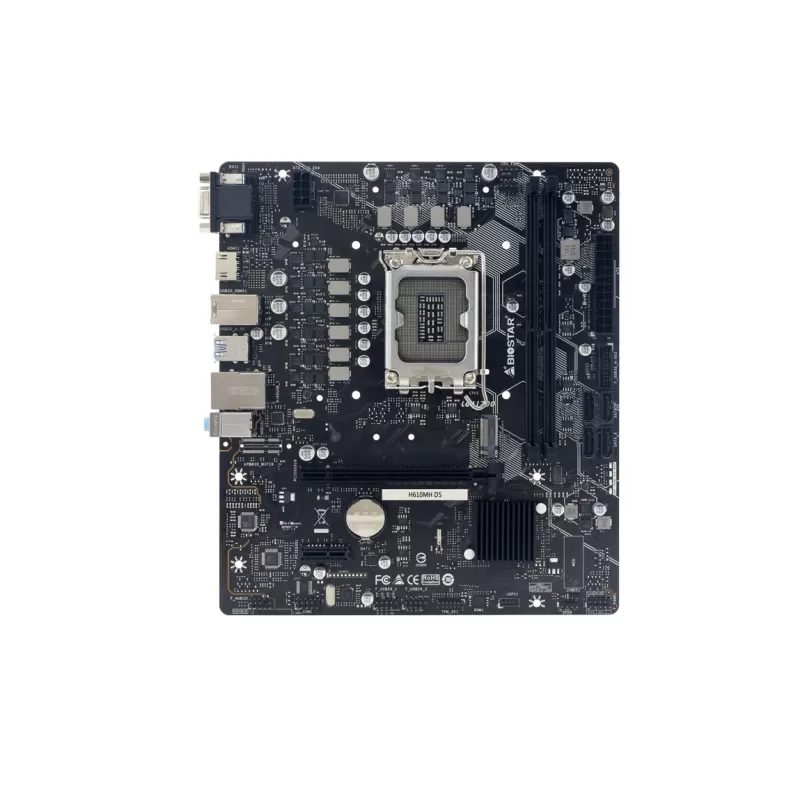

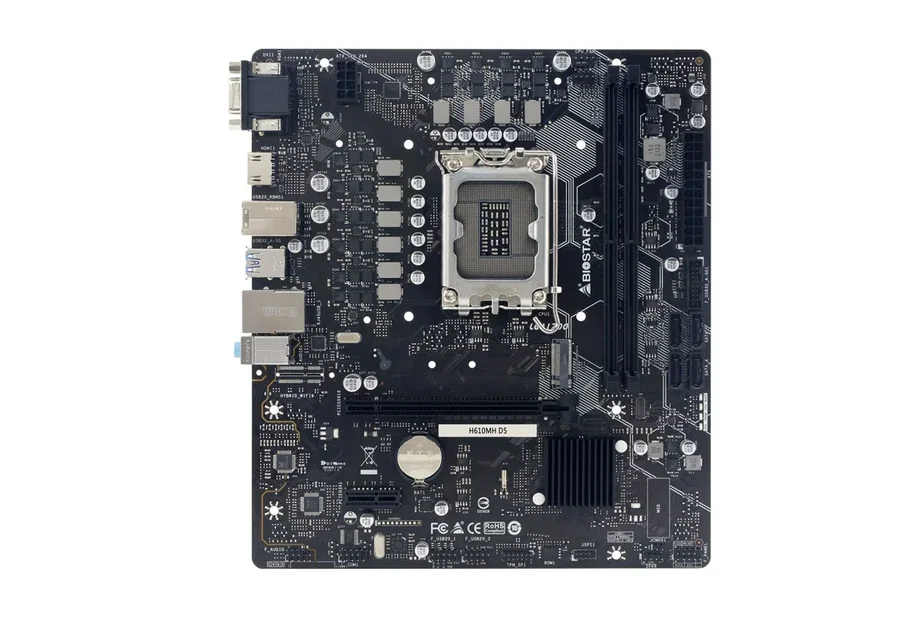

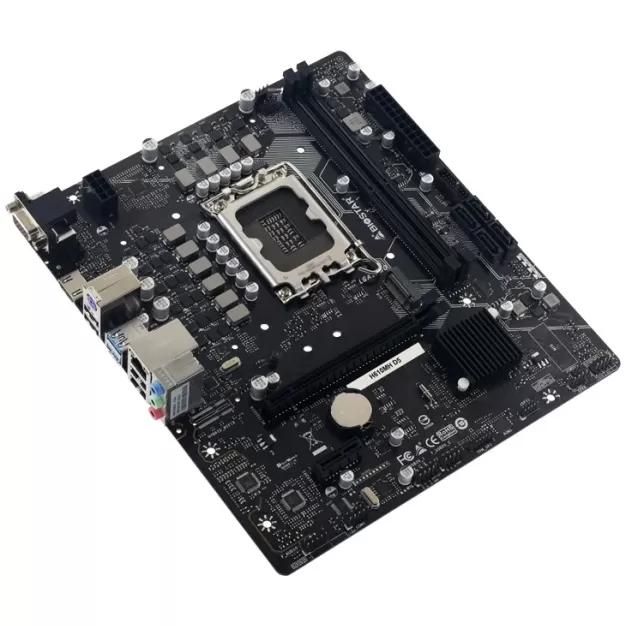

BIOSTAR H610MH D5 Motherboard

The BIOSTAR H610MH D5 is a Micro ATX motherboard for the LGA1700 socket with the Intel H610 chipset. It supports 12th, 13th and 14th generation Intel Core processors as well as Pentium and Celeron, and is aimed at office and home PCs.

The board offers two DDR5 slots up to 96GB, a PCIe 4.0 x16 slot, an M.2 slot and four SATA III ports, Intel Gigabit LAN, and HDMI and VGA video outputs for processors with integrated graphics.

Key features

• LGA1700 socket and H610 chipset - Supports 12th, 13th and 14th generation Intel Core processors (i9, i7, i5, i3) as well as Pentium and Celeron in the LGA1700 package.
• DDR5 memory up to 96GB - Two dual-channel DDR5 DIMM slots: up to 4800 with 12th generation CPUs and up to 5600 with 13th and 14th generation CPUs, modules up to 48GB each and XMP support.
• Expansion and storage - A PCIe 4.0 x16 slot wired to the CPU, a PCIe 3.0 x1 slot, an M.2 M Key slot for NVMe or SATA drives in 2242, 2260 and 2280 sizes, and four SATA III ports.

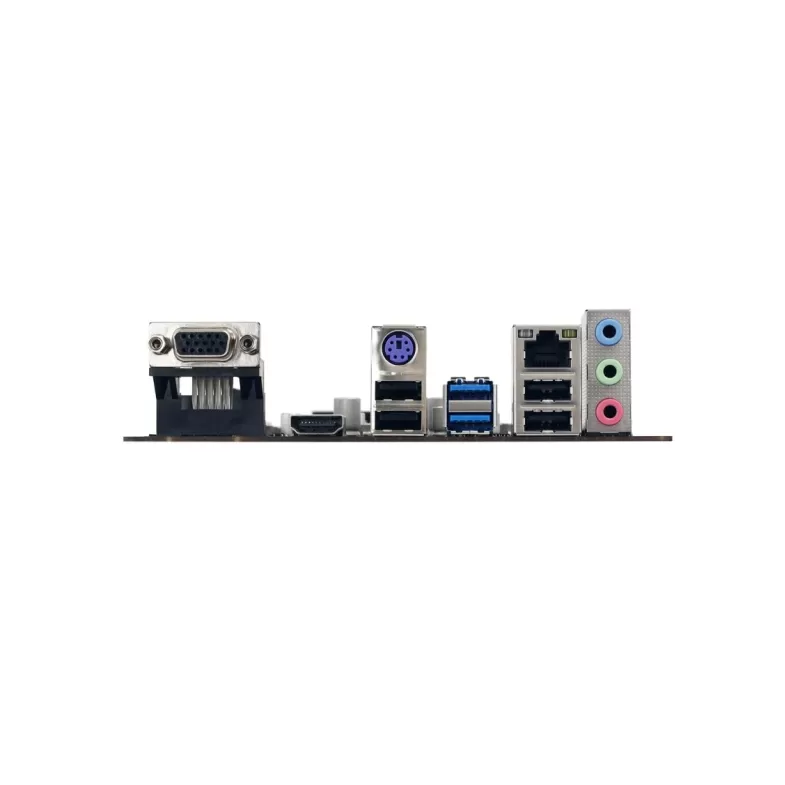

• Network, audio and ports - Intel I219V Gigabit LAN, an ALC897 codec with 7.1 audio, four USB 3.2 Gen1 ports and eight USB 2.0 ports (including internal headers).
• Video output and extras - HDMI (4K2K) and VGA outputs, DX12 and HDCP support, A.I FAN fan control and a Debug LED.

Specifications

In the box

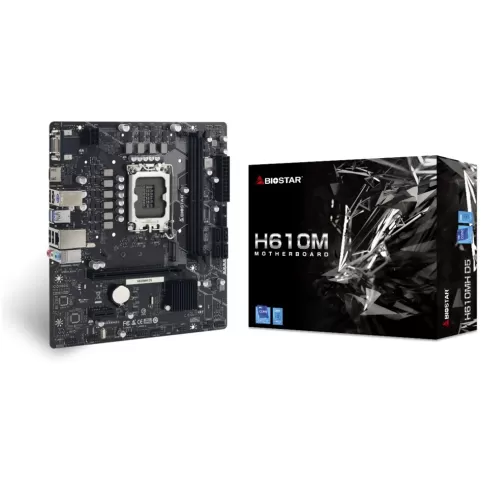

• BIOSTAR H610MH D5 motherboard
• 2 SATA cables
• I/O shield
• Driver DVD
• Quick guide
