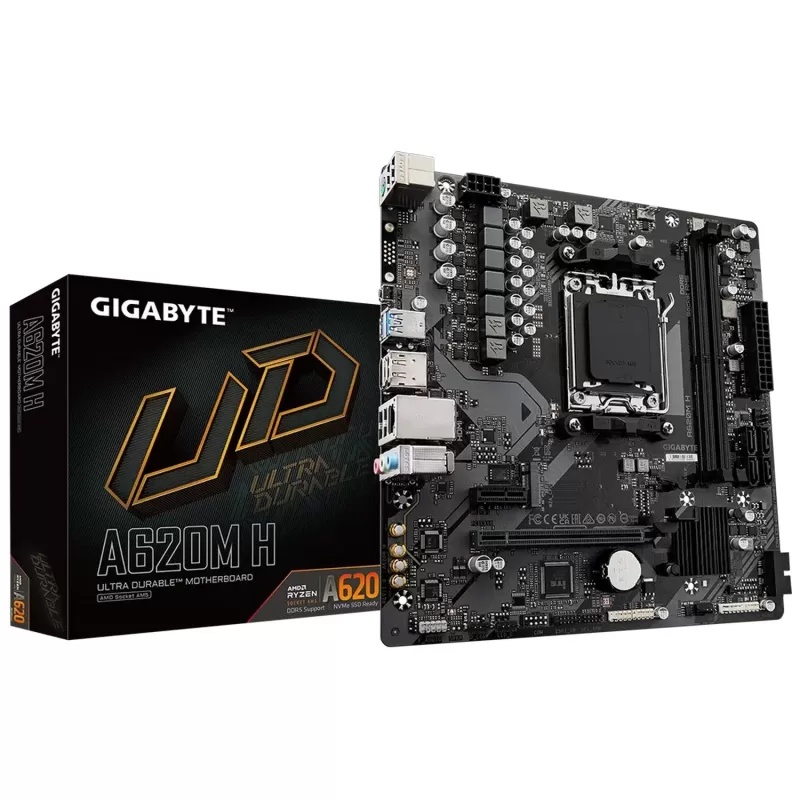

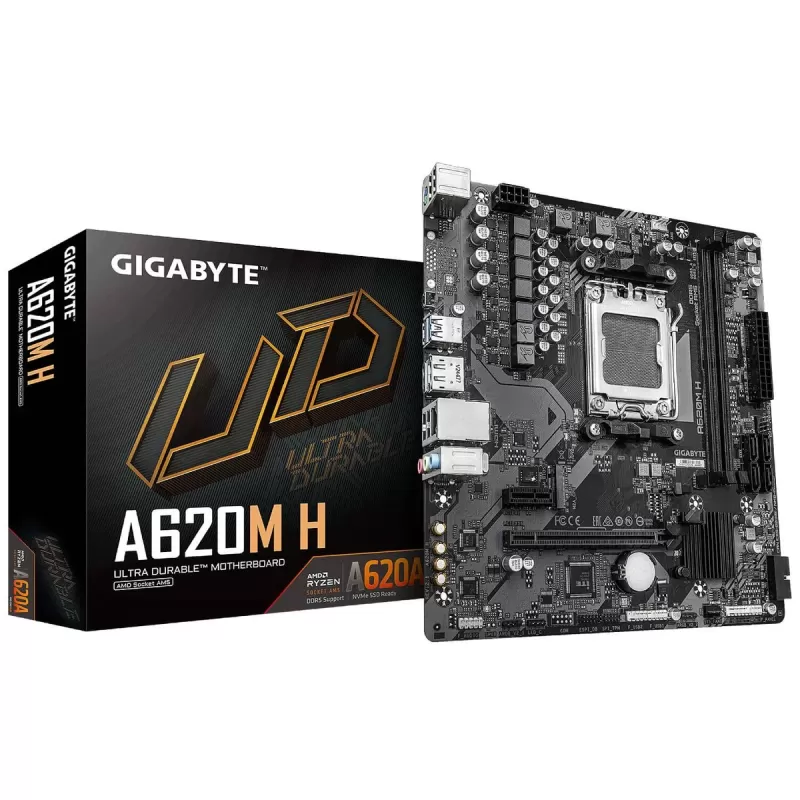

Motherboard Gigabyte A620M H DDR5 DIMM AM5

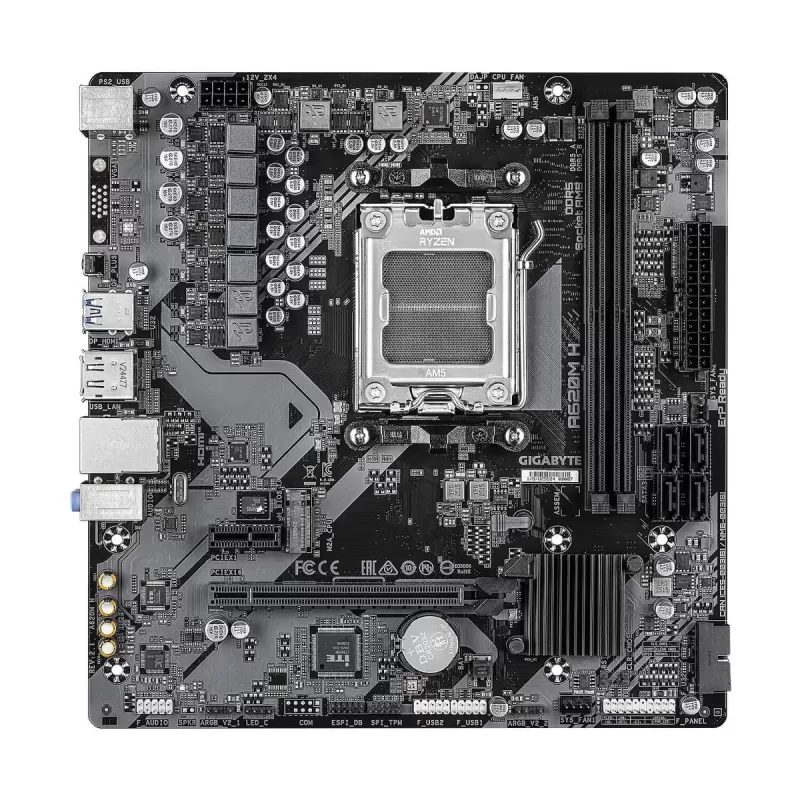

Gigabyte A620M H 2.2 - Micro ATX Motherboard for the AM5 Socket

The Gigabyte A620M H 2.2 is a compact motherboard based on the A620 chipset and the AMD AM5 socket. It is designed as an accessible, stable base for home, office and entry-level gaming systems, with support for fast DDR5 memory and current AMD processor generations.

Platform & chipset

The board is built around the AMD AM5 socket and the A620 chipset, in a Micro ATX form factor suited to compact cases. It supports AMD Ryzen 7000, 8000 and 9000 series processors, so you can assemble a space-saving system without giving up compatibility with AMD's current processor lineup.

Memory & expansion

Two memory slots support DDR5 at a maximum clock of up to 7600, providing generous bandwidth for everyday loads and games. For expansion there is a PCIE 4.0 X16 slot for an add-in card, plus four SATA ports for storage with RAID support in 0, 1 and 10 configurations for flexibility when setting up the drive array.

Power, cooling & connectivity

The connectivity set includes dual display outputs with HDMI and Display Port, so up to three monitors can run at once using the processor's integrated graphics. The board features Realtek audio and a Realtek GbE wired network controller, alongside USB 3.2 Gen 1 ports at the case front and rear, a USB 2.0 header, a PS/2 connector for a mouse or keyboard, and two case fan headers for managing cooling.

• Socket: AMD AM5, A620 chipset
• Form factor: Micro ATX
• Memory: DDR5, two slots, up to 7600
• Expansion: PCIE 4.0 X16 slot
• Storage: 4 SATA connectors, RAID 0/1/10
• Display: HDMI and Display Port, up to 3 monitors
• Network: Realtek GbE, Realtek audio, PS/2 connector

1. 4 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x Q-Flash Plus button
4. 2 x USB 3.2 Gen 1 ports
5. 1 x DisplayPort
6. 1 x HDMI port
7. 1 x RJ-45 port
8. 3 x audio jacks

1. 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

1. 4 x SATA 6Gb/s connectors
