Motherboard Gigabyte B550 X EAGLE WIFI6E DDR4 AM4 - official importer

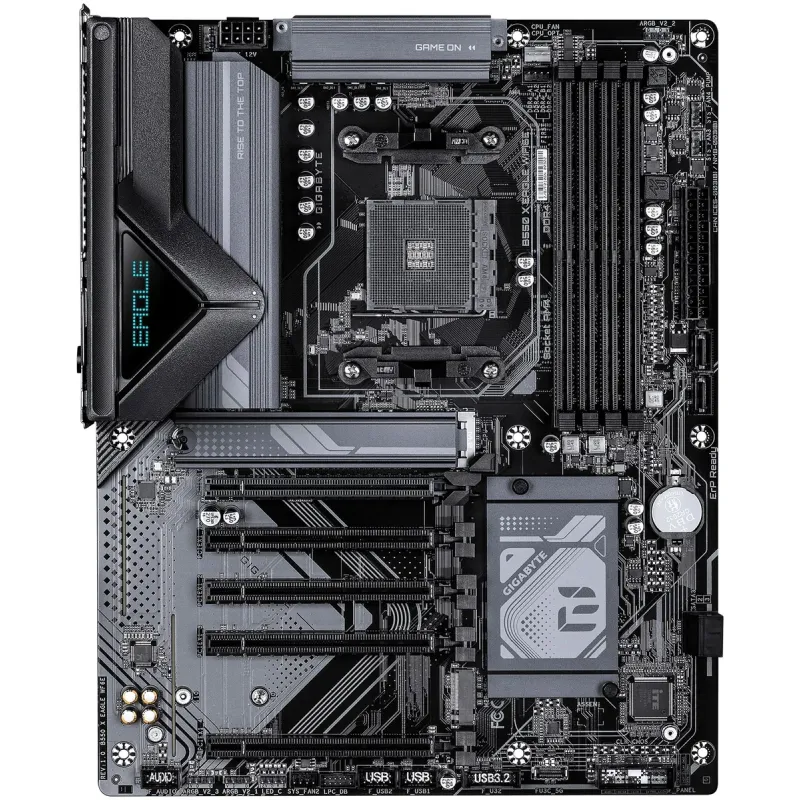

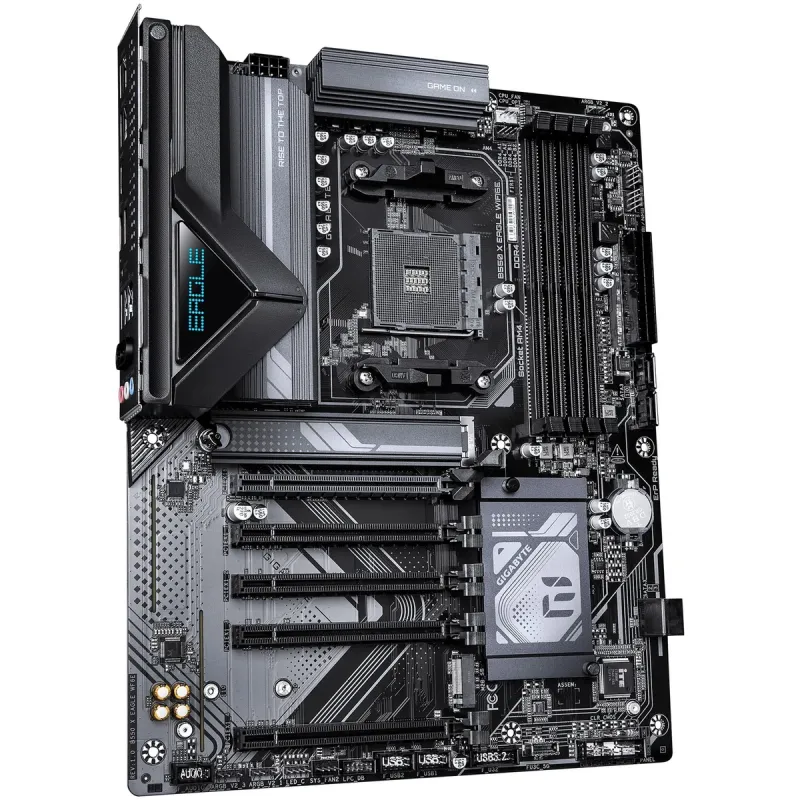

Gigabyte B550 X EAGLE WIFI6E Motherboard

The Gigabyte B550 X EAGLE WIFI6E is an ATX motherboard for Socket AM4 built on the AMD B550 chipset. It supports AMD Ryzen 3000, 4000 and 5000 series processors, including G-series models with integrated graphics, and suits a gaming or work PC build.

The board offers four DDR4 slots for up to 128GB, two M.2 slots, a 2.5 Gigabit wired network port and a Wi-Fi 6E wireless module with Bluetooth 5.3 and its antenna.

Key features

• AM4 platform with the B550 chipset - Support for AMD Ryzen 3000, 4000 and 5000 series processors including G-series models, and a PCIe 4.0 x16 slot for the graphics card.
• DDR4 memory up to 128GB - Four DIMM slots in dual-channel mode with up to 32GB per slot, supporting unbuffered non-ECC and ECC memory at speeds up to 3200MHz.
• Two M.2 slots and four SATA ports - One M.2 slot runs at PCIe 4.0 and one at PCIe 3.0, alongside four SATA III ports and RAID 0, 1 and 10 support.
• Fast networking and wireless - A Realtek RTL8125 controller for 2.5 Gigabit Ethernet, plus a Wi-Fi 6E (802.11ax) module with Bluetooth 5.3 and two antenna connectors on the back panel.

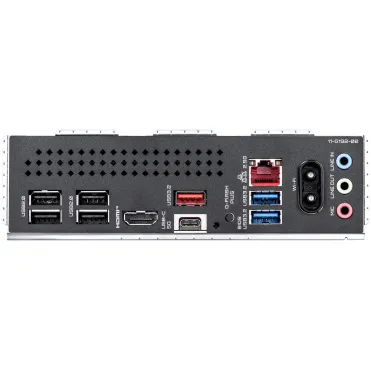

• Rear panel connectivity - Four USB 2.0 ports, two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 1 Type-C port, one USB 3.2 Gen 2 Type-A port, an HDMI 2.1 output and audio jacks.
• Cooling, lighting and audio - Two CPU fan headers, four chassis fan headers, two water pump headers and four LED headers, with a Realtek ALC897 codec for 7.1-channel audio.

Specifications
