Out of stock
* The picture is for illustration only
Short review: ASRock X570 Phantom Gaming-ITX/TB3 - memory type DDR4, cpu socket AM4, chipset X570. Suited for building a PC or upgrading the platform., Manufacturer: Asrock, Memory Frequency: 4533MHz, Socket: AM4, Chipset: X570, Memory Type: DDR4, Condition: New, SKU: 39541

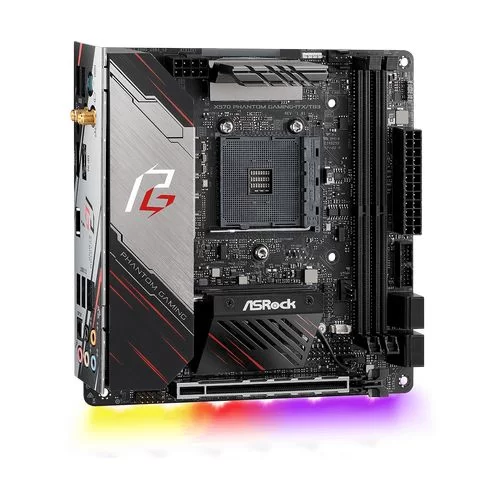

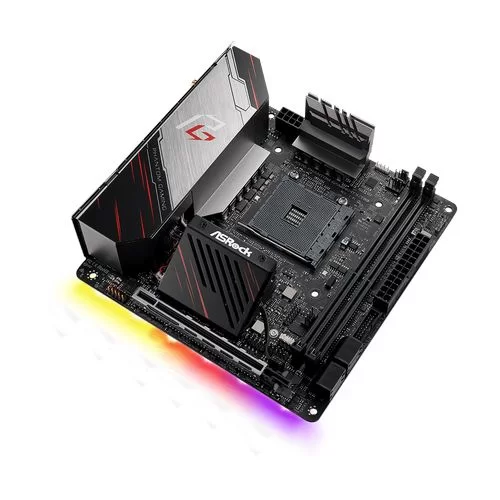

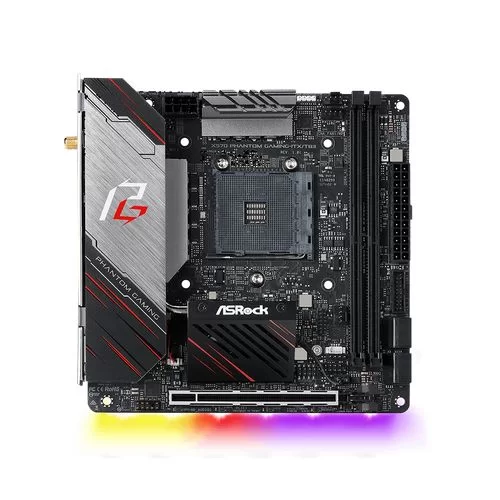

Motherboard ASRock X570 Phantom Gaming-ITX/TB3 DDR4 AM4
Pick up and delivery options:
- Collection from the Ashdod branch - 0₪
- PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
- Home delivery - 45 shekels - over 2999₪ - Free Delivery
- Self-collection from the importer - 0₪ - contact us for pick up option
*Except for cases of abnormal size/weight
Payment options:
- Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
- Bank transfer (Deferred payment not accepted), Bit, PayBox
- Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
- PayPal - Only Shipments With a Tracking Number
| Specification | |
| Revew | ASRock X570 Phantom Gaming-ITX/TB3ASRock X570 Phantom Gaming-ITX/TB3 - memory type DDR4, cpu socket AM4, chipset X570. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: X570 Phantom Gaming-ITX/TB3. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | X570 Phantom Gaming-ITX/TB3 |
| Model | X570 Phantom Gaming-ITX/TB3 |
| Condition | New |
| Manufacturer | Asrock |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Supports Creative Sound Blaster Cinema 5 |

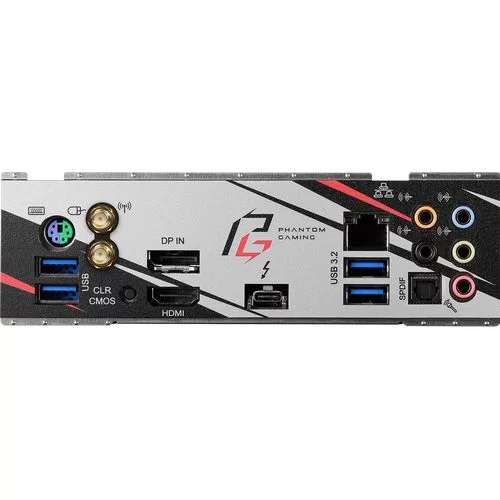

| Back Panel Connectors | - 2 x Antenna Ports (on I/O Panel Shield) - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 Input - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Thunderbolt 3 Type-C Port (40Gb/s for Thunderbolt protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection) - 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Chipset | X570 |
| Compatibility for computer assembly | AMD Motherboards |
| Configuration | Mini-ITX |
| Interface | DDR4: 2, SATA3: 4 |
| Internal Ports / Inputs | - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x SPI TPM Header******* *Supports in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. ******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI |
| Memory Frequency | 4533MHz |
| Memory Type | DDR4 |
| Socket | AM4 |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket, supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* *Supports NVMe SSD as boot disks Support RAID 0/1/10 |
| Wired Communication | - Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Wireless network | - Intel 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports WiFi6 802.11ax (2.4Gbps) - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.0 + High speed class II - Supports MU-MIMO |

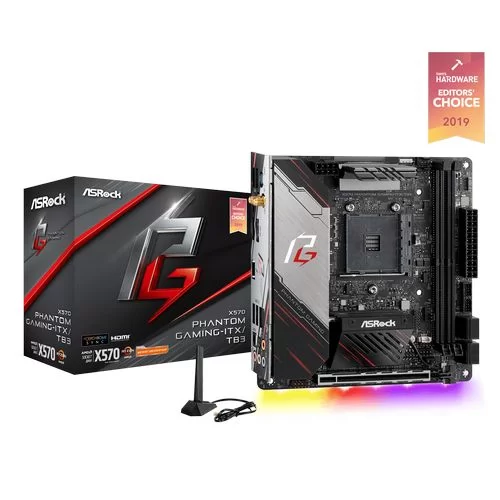

| What'S In The Box? | - Quick Installation Guide, Support CD - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x Screw for M.2 Socket |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard ASRock X570 Phantom Gaming-ITX/TB3 DDR4 AM4 |
| Matching SKUs | ID:~39541~, NEW, OC: 33543, TZG: 16775, MPN: X570 Phantom Gaming-ITX/TB3 |
