In the importer's stock
| Specification | |||||||||||||||||||||||||||||||||||||||||

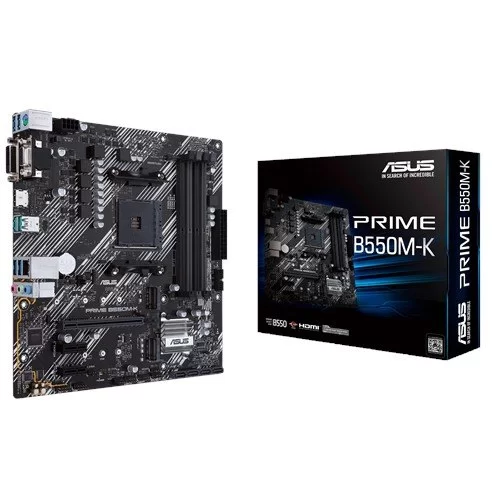

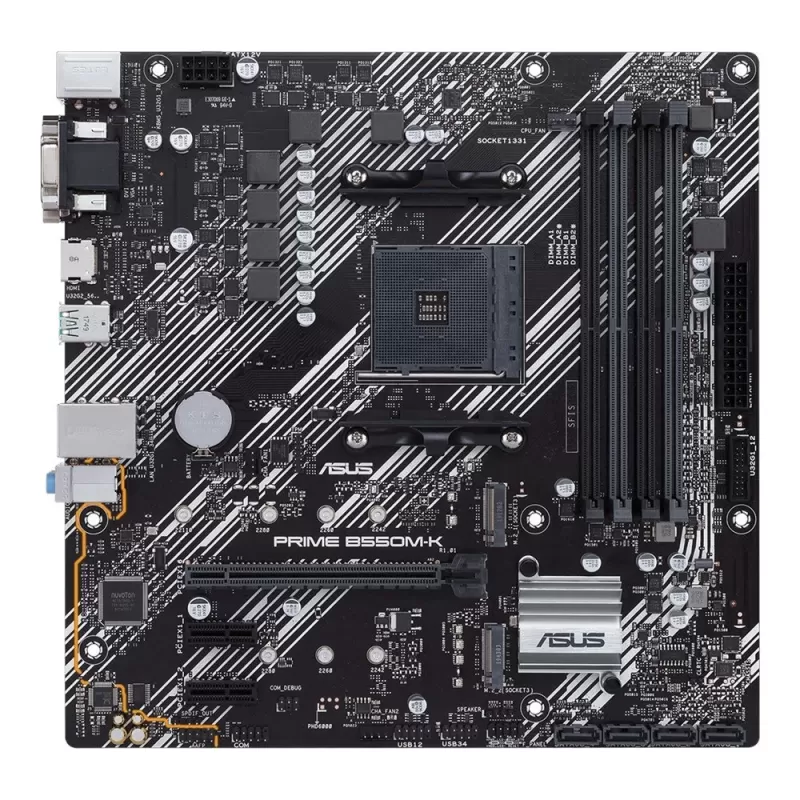

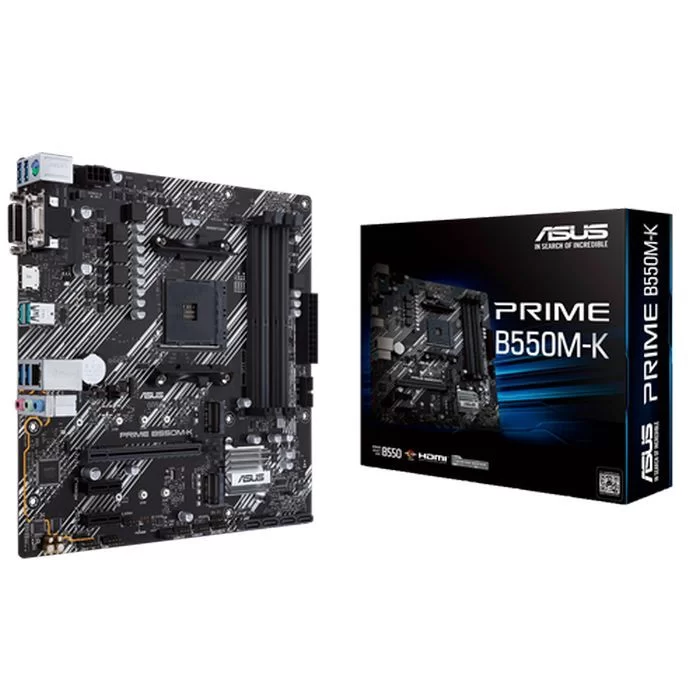

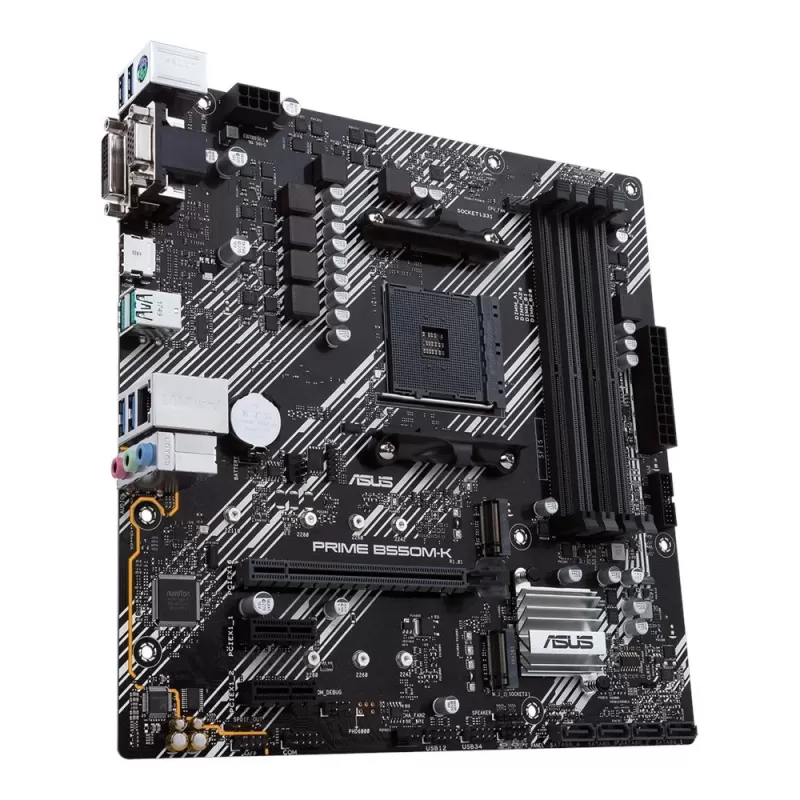

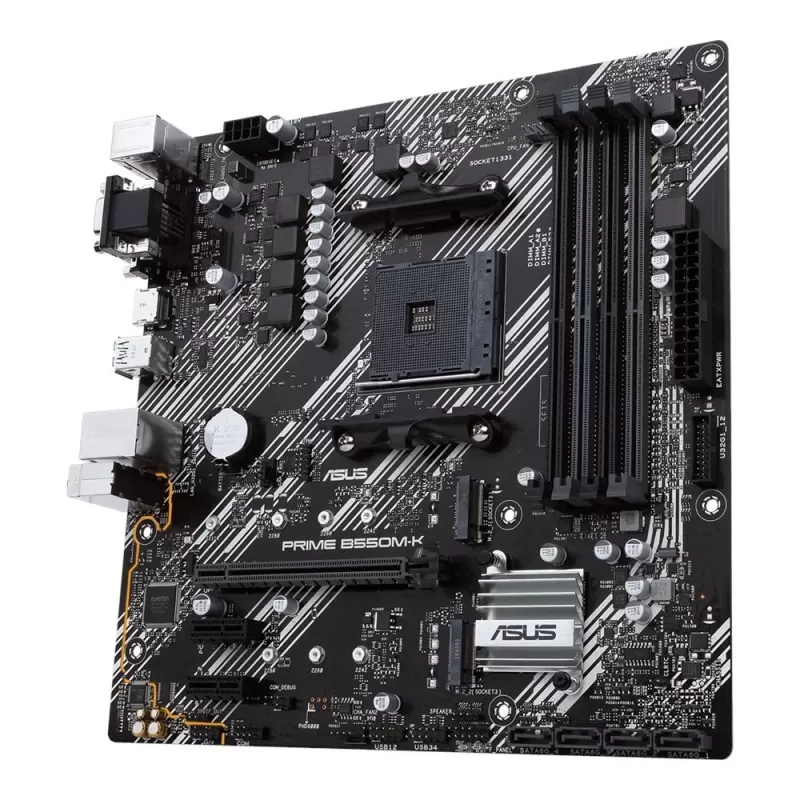

| Revew | Asus PRIME B550M-K MotherboardThe Asus PRIME B550M-K is a Prime series Micro ATX motherboard built on the AMD B550 chipset for AMD Ryzen 5000, 5000 G, 4000 G and 3000 Series processors in the AM4 socket. It suits an affordable home, office or gaming build and is also a good way to upgrade an existing AM4 PC. The board offers four DDR4 slots for up to 128GB, a PCIe 4.0 x16 graphics slot, two M.2 slots with RAID support, two USB 3.2 Gen 2 and four USB 3.2 Gen 1 rear ports, and three outputs for integrated graphics: D-Sub, DVI-D and HDMI. Cooling comes from chipset and VRM heatsinks with Fan Xpert 2+, and protection from ASUS 5X Protection III.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | 90MB14V0-M0EAY0, 90MB14V0-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | PRIME B550M-K | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4718017758284 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| 1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * AMD RyzenTM 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. | ||||||||||||||||||||||||||||||||||||||||
| Back Panel Connectors | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B550 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | Micro ATX | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector | ||||||||||||||||||||||||||||||||||||||||
| Memory Frequency | 4600MHz | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR4 DIMM | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM4 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD RyzenTM 4000 G-Series Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | Realtek RTL8111H 1Gb Ethernet ASUS LANGuard | ||||||||||||||||||||||||||||||||||||||||

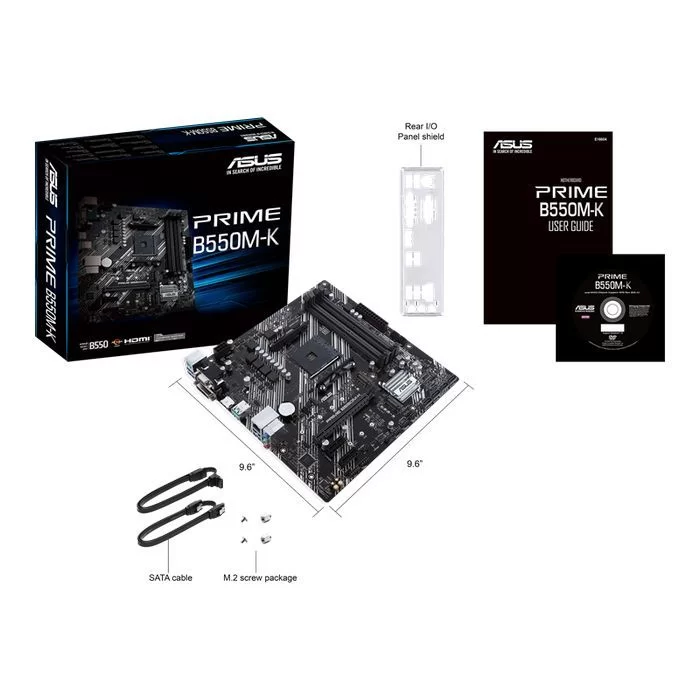

| What'S In The Box? | User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) | ||||||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Asus PRIME B550M-K DDR4 DIMM AM4 | ||||||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~41369~, NEW, OC: 33678, EASX: 90MB14V0-M0EAY0, VSL: PRIME B550M-K, CD: 90MB14V0-M0EAY0, MPN: 90MB14V0-M0EAY0, MPN2: 90MB14V0-M0EAY0, EAN: 4718017758284 | ||||||||||||||||||||||||||||||||||||||||
