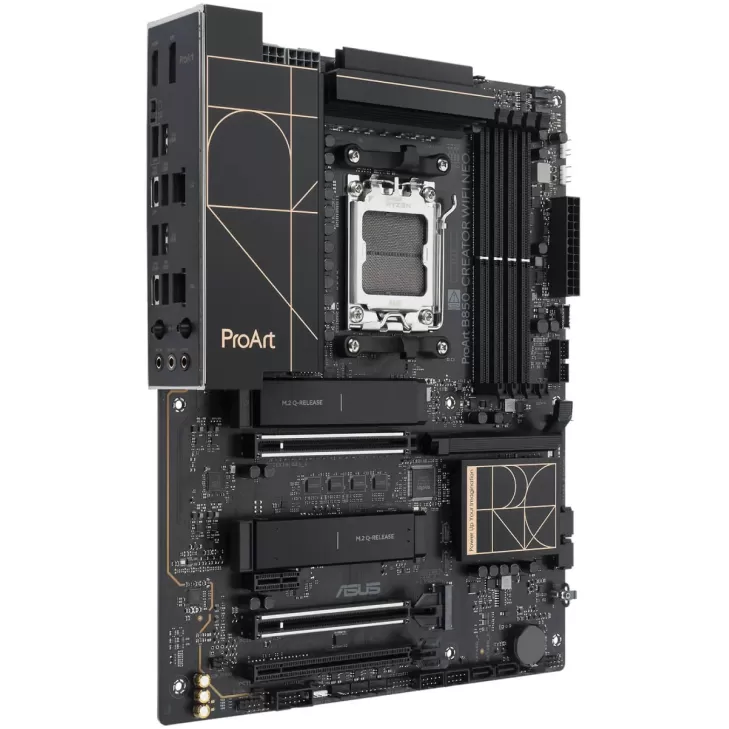

Motherboard Asus ProArt B850-CREATOR WiFi NEO DDR5 AM5

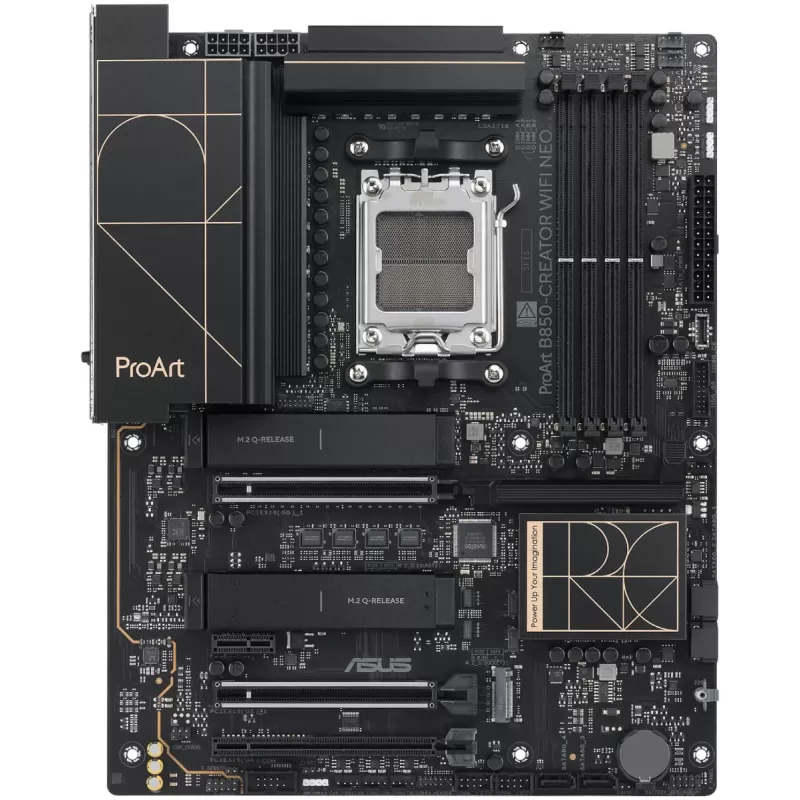

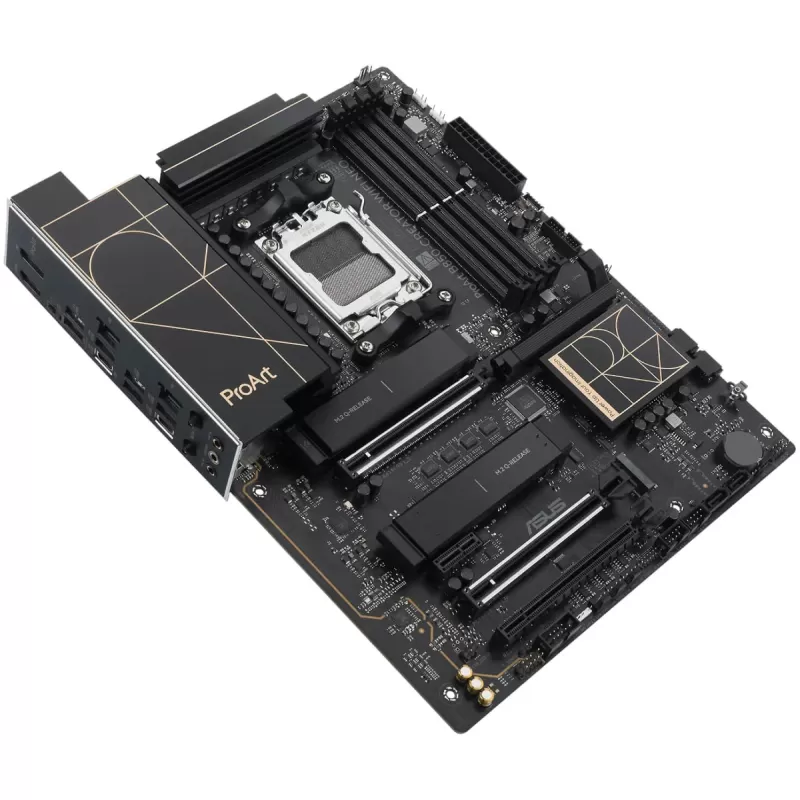

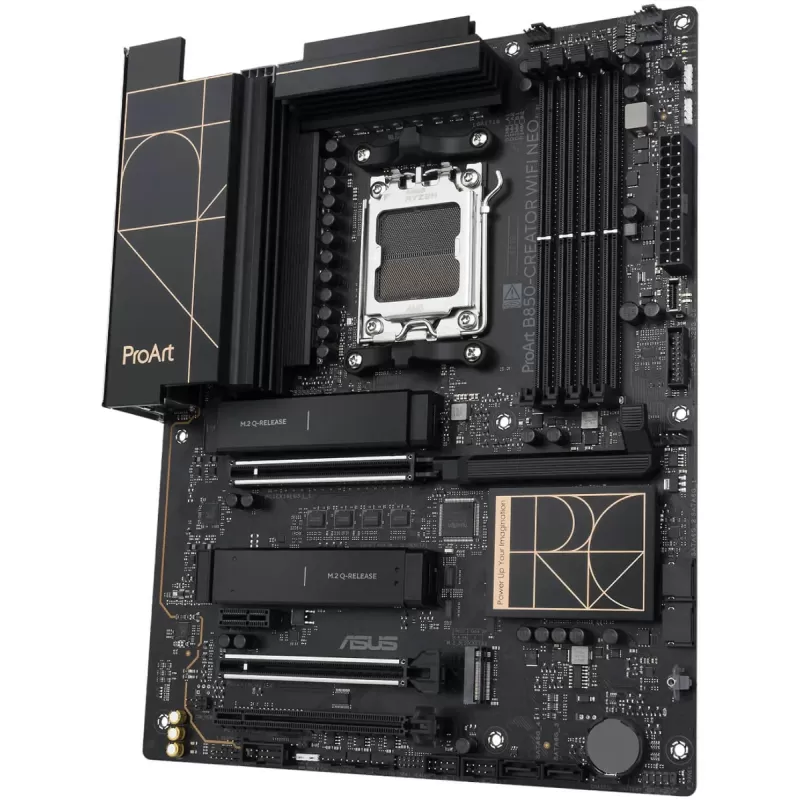

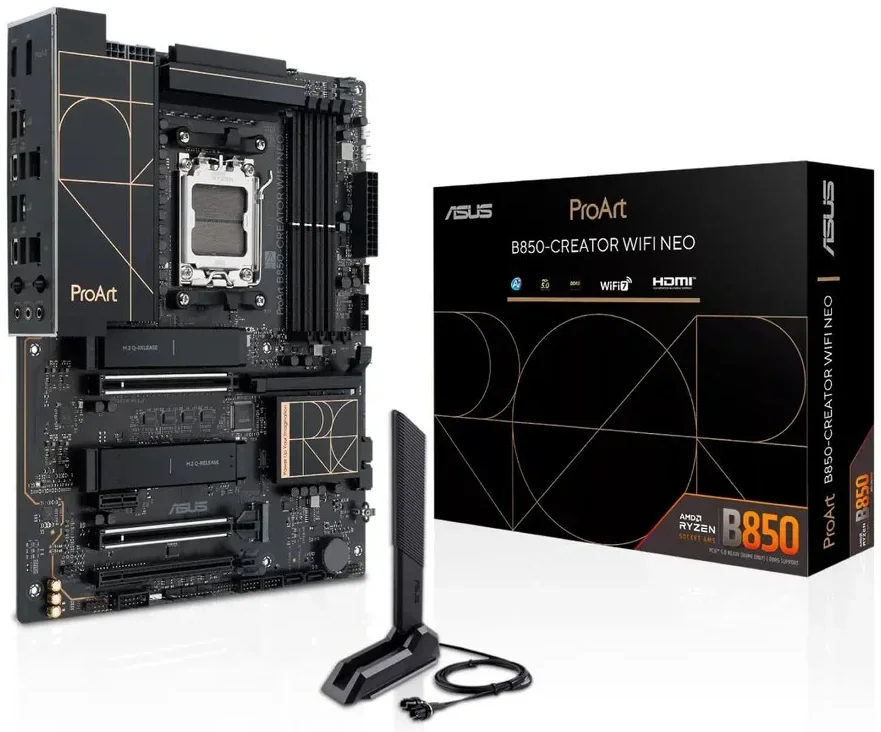

Asus ProArt B850-CREATOR WiFi NEO Motherboard

The Asus ProArt B850-CREATOR WiFi NEO is an ATX motherboard for the AMD AM5 platform, aimed at professional content-creation systems, AI applications and workstations. It supports compatible AMD Ryzen 9000, 8000 and 7000 series processors and AMD EPYC 4005 series processors.

The board combines DDR5 memory, PCIe 5.0 expansion, fast NVMe storage and fast wired and wireless connectivity.

Key features

• 14+2+1 power delivery - A power stage design rated at 80A per stage, an eight-layer server-grade PCB and ProCool connectors suit multi-core processors.
• DDR5 up to 256GB - Four DIMM slots with dual-channel memory, speeds up to 9000MT/s with compatible hardware and settings, and AMD EXPO and ASUS AEMP profiles.

• PCIe 5.0 expansion - Two reinforced SafeSlot PCIe 5.0 x16 slots in a single x16 or dual x8/x8 configuration, plus an extra PCIe 4.0 x16 slot running at up to x4. PCIe Slot Q-Release makes removing a graphics card easier.
• Fast storage - Three onboard M.2 slots, two using PCIe 5.0 x4 and one using PCIe 4.0 x4, plus four SATA 6Gbps ports. Q-Release, Q-Slide and Q-Latch mechanisms simplify installation.

• Wired and wireless networking - Two Realtek 5Gb Ethernet ports, Wi-Fi 7 and Bluetooth 5.4, with the ASUS Q-Antenna included.

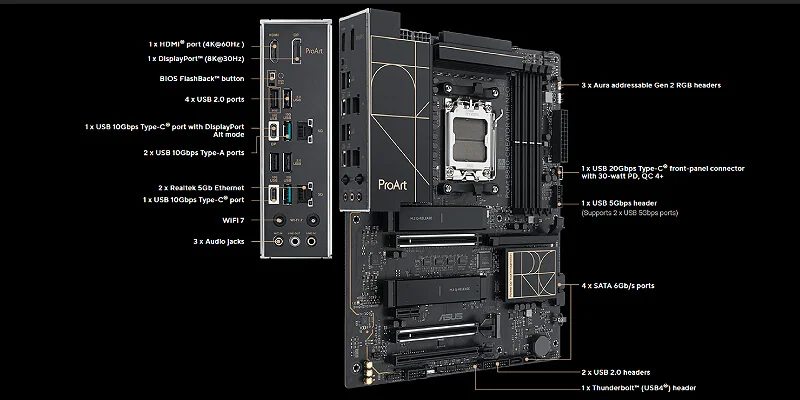

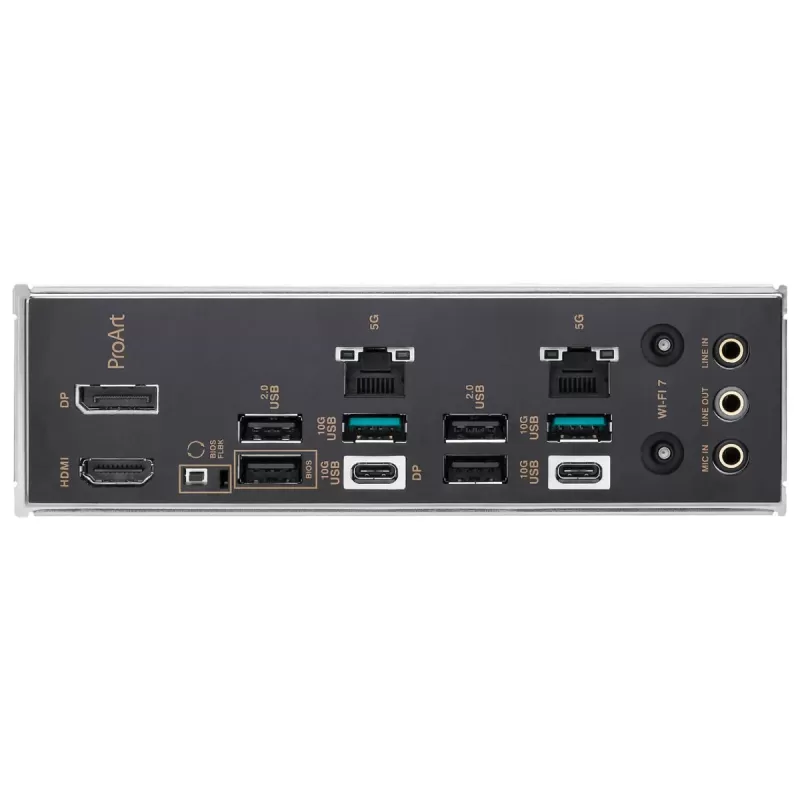

• USB and display - Two USB 10Gbps Type-C and two Type-A ports on the rear panel, and a front-panel USB 20Gbps Type-C connector with up to 30W charging. HDMI and DisplayPort outputs for use with a CPU with integrated graphics.

Specifications

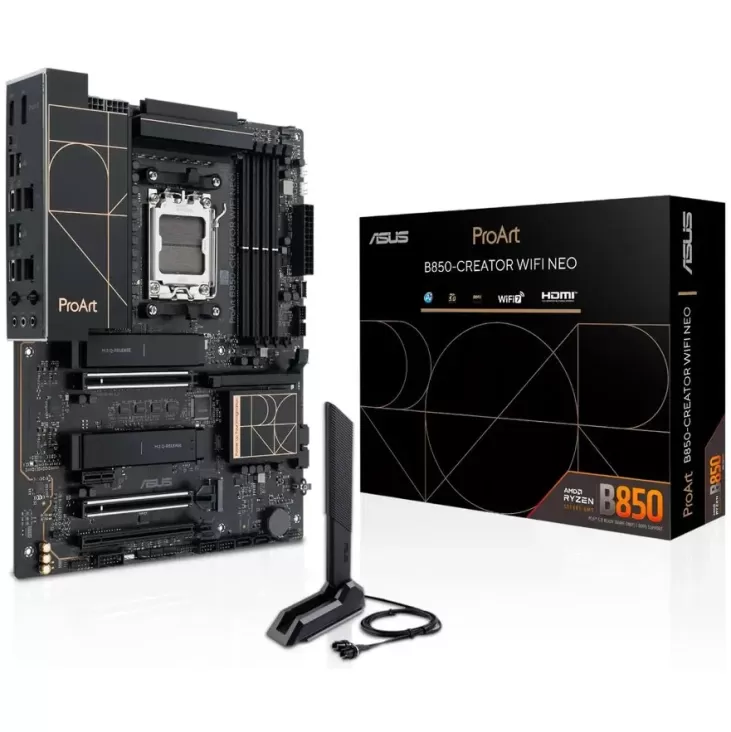

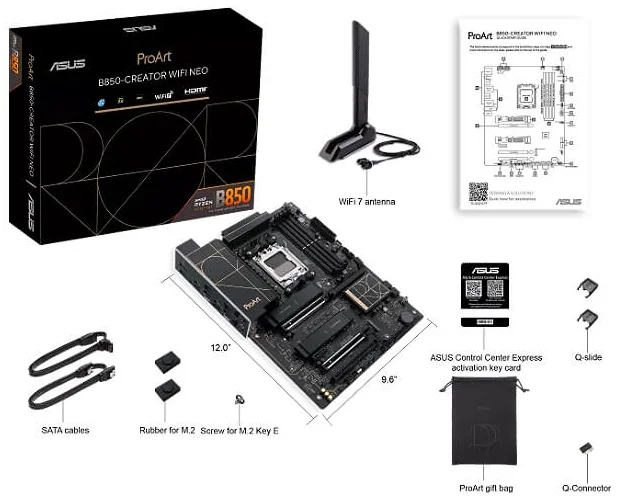

In the box

• ASUS Q-Antenna
• Bundled accessories (see the manufacturer's box image)
