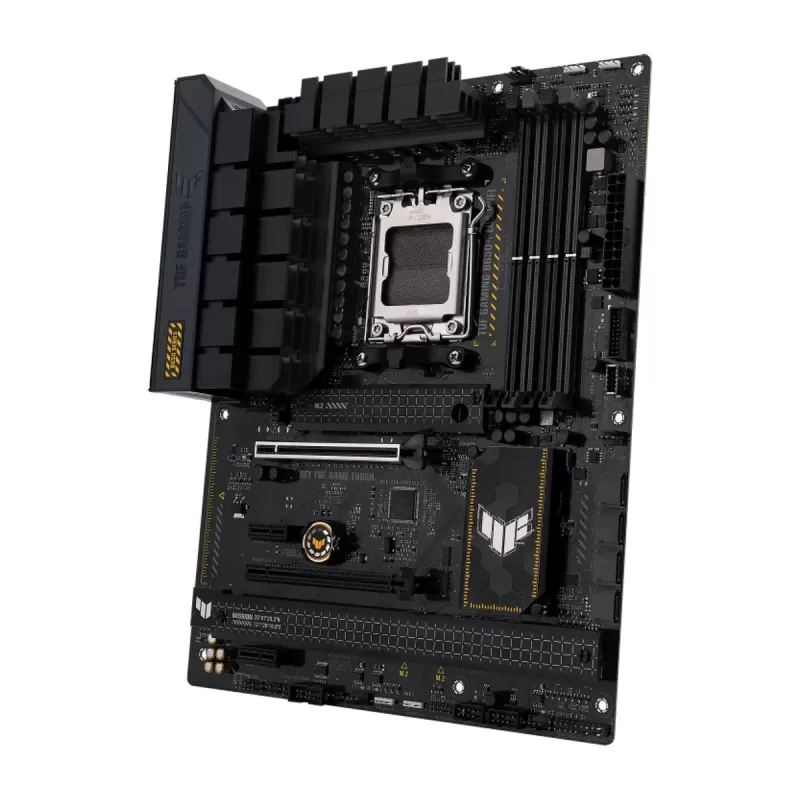

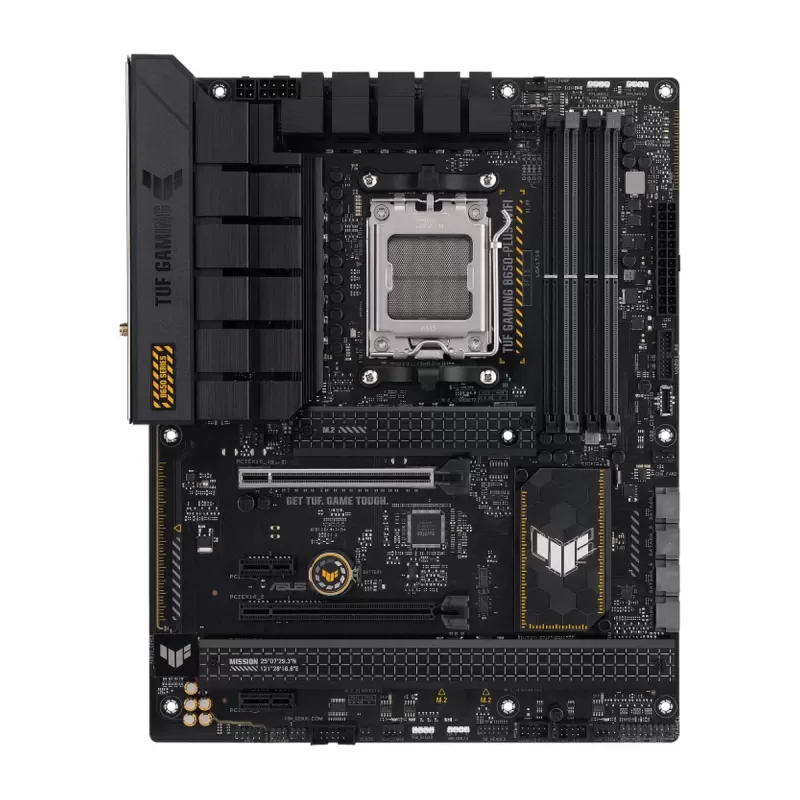

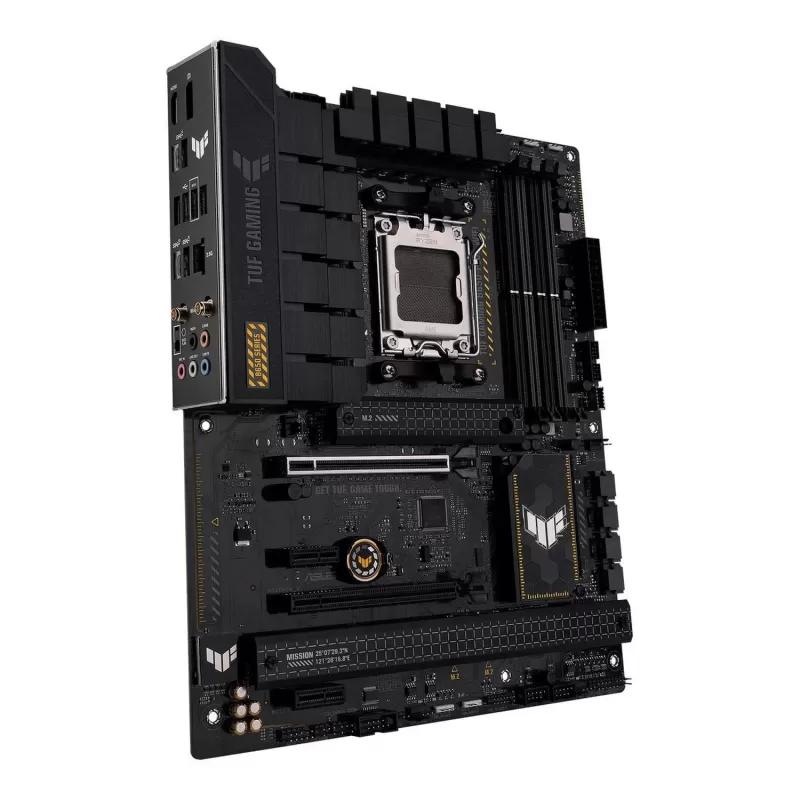

| Revew | Asus TUF GAMING B650-PLUS WIFI MotherboardThe ASUS TUF GAMING B650-PLUS WIFI is an ATX motherboard for AMD Ryzen 9000, 8000 and 7000 processors in the AM5 socket, built on the AMD B650 chipset. Like the rest of the TUF GAMING series it uses military-grade components and goes through endurance testing, with 12+2+2 60A power stages and enlarged VRM heatsinks. The board offers a PCIe 5.0 x4 M.2 slot for next-generation SSDs plus two more PCIe 4.0 M.2 slots, four DDR5 slots for up to 256GB, Wi-Fi 6 with Bluetooth, Realtek 2.5Gb Ethernet and a 20Gbps USB-C port on the rear panel. The BIOS FlashBack button updates the BIOS even without a CPU installed.
Key features
Specifications
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | 90MB1BZ0-M0EAY0, 90MB1BZ0-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | TUF GAMING B650-PLUS WIFI | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4711081912651 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek 7.1 Surround Sound High&Definition Audio CODEC* - Supports: Jack-detection,&Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input&noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth,&32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. **&A chassis with an HD audio module in the front panel is required to support 7.1&Surround Sound audio output. | ||||||||||||||||||||||||||||||||||||||||

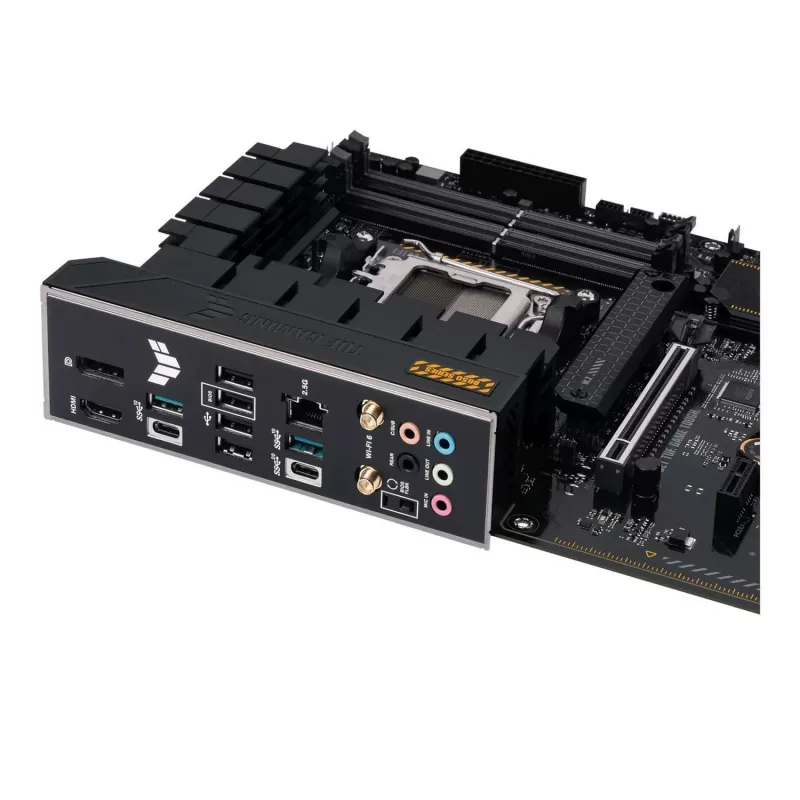

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB&Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x&USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x&BIOS FlashBack™ button | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B650 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | ATX | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB&Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4&additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis&intrude function 1 x Thunderbolt™ (USB4®) header& | ||||||||||||||||||||||||||||||||||||||||
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/&5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for&Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed),&and number of DRAM modules vary depending on the CPU and memory configuration,&for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 128GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM5 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Total supports 3 x M.2 slots and 4 x SATA&6Gb/s ports | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | 1 x Realtek 2.5Gb Ethernet TUF LANGuard | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 | ||||||||||||||||||||||||||||||||||||||||
