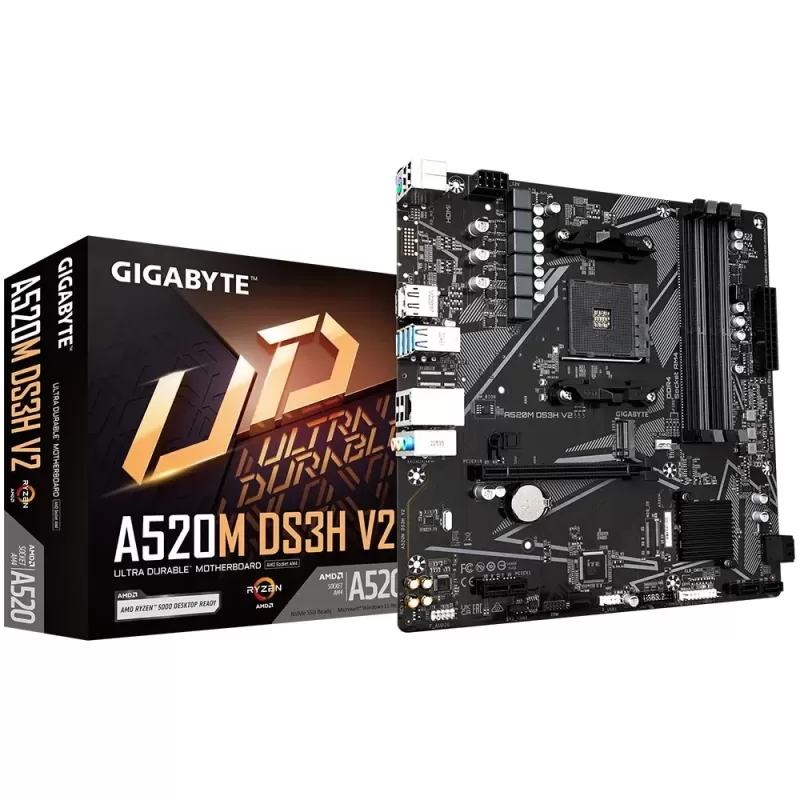

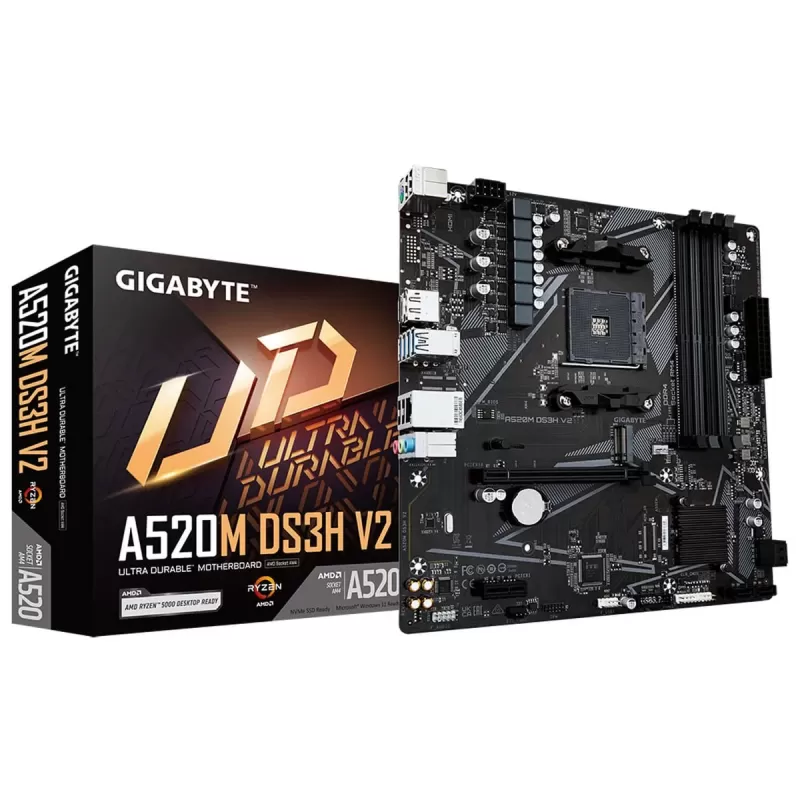

Motherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4 - official importer

Motherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4 - official importer
Motherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4 - official importer
Motherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4 - official importer
In the importer's stock
Motherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4 - official importer
Motherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4 - official importer
Motherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4 - official importer

* The picture is for illustration only

Short review: Micro ATX AM4 motherboard with the AMD A520 chipset: four DDR4 slots for up to 128GB, a PCIe 3.0 x4 M.2 slot, HDMI 2.1 and DisplayPort outputs and Gigabit LAN., Manufacturer: Gigabyte, Socket: AM4, Chipset: A520, Memory Volume: 128GB, Memory Type: DDR4 DIMM, Condition: New, SKU: 58314
Motherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4 - official importer

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: In stock at supplier: delivery to branch within: 4 business days
    • Print:
    • Brand: Gigabyte
    • SKU: 58314
    • MPN: A520M DS3H V2
    Gigabyte Gigabyte
    ₪311
    Add to Cart
    Buy Now!
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

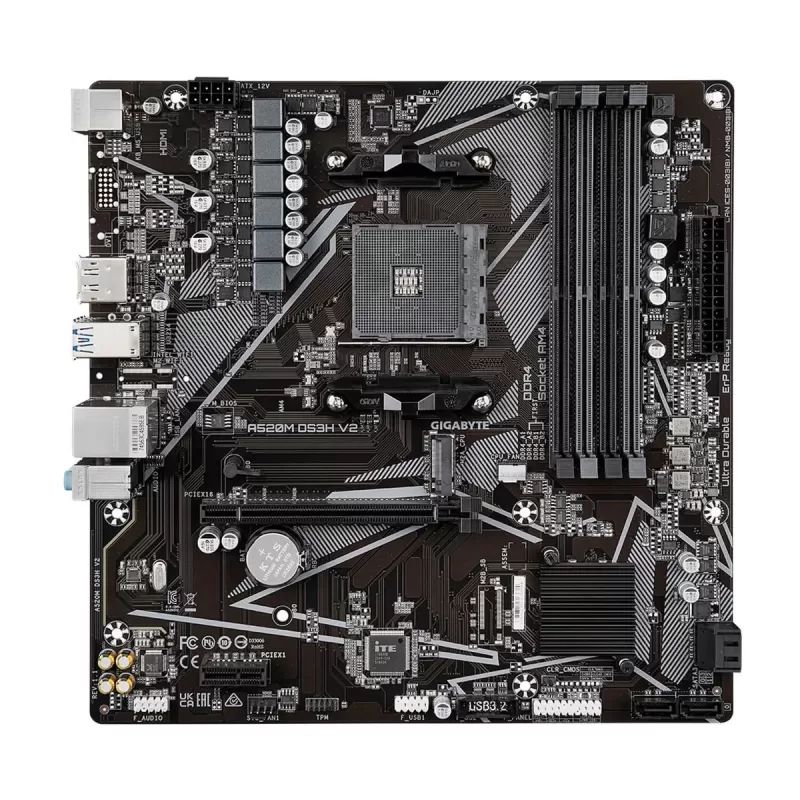

    Gigabyte A520M DS3H V2 Motherboard

    The Gigabyte A520M DS3H V2 is a Micro ATX motherboard for the AM4 socket, built for AMD Ryzen 5000, 5000G, 4000G, 3000 and 3000G series processors. It is based on the AMD A520 chipset and supports DDR4 memory in four slots, up to 128GB and up to 4733MHz (OC).

    The board belongs to the Ultra Durable series and uses a digital VRM with Low RDS(on) MOSFETs. It offers a reinforced PCIe 3.0 x16 slot, an M.2 slot for an NVMe drive, four SATA ports with RAID, Realtek Gigabit LAN and HDMI 2.1 and DisplayPort 1.4 outputs for Ryzen processors with integrated graphics.

    Key features

    • Ryzen up to the 5000 series - The AM4 socket supports Ryzen 5000, 5000G, 4000G, 3000 and 3000G processors. A digital VRM with Low RDS(on) MOSFETs delivers precise power with less heat.
    • Four DDR4 slots - Four dual-channel DDR4 slots take up to 128GB (32GB per module) at 3200MHz and up to 4733MHz (OC), with support for ECC Un-buffered memory and XMP profiles.
    • NVMe storage and RAID - A 2280 M.2 slot for PCIe 3.0 x4 or SATA drives and four SATA 6Gb/s ports with RAID 0, 1 and 10.
    • Video up to 5K - DisplayPort 1.4 up to 5120x2880 at 60Hz and HDMI 2.1 up to 4096x2160 at 60Hz, with HDR and HDCP 2.3, for Ryzen processors with integrated graphics.
    • USB and network - Four USB 3.2 Gen 1 and four USB 2.0 ports on the rear, and internal headers for two more USB 3.2 Gen 1 and two USB 2.0 ports. Realtek Gigabit LAN with bandwidth management software.
    • Cooling and durability - Smart Fan 5 with five temperature sensors and FAN STOP, an Ultra Durable reinforced PCIe slot, anti-sulfur resistors and high-quality audio capacitors with Audio Noise Guard.

    Specifications

    ManufacturerGigabyte
    ModelA520M DS3H V2
    SocketAMD AM4
    Supported CPUsAMD Ryzen 5000, 5000G, 4000G, 3000 and 3000G
    ChipsetAMD A520
    Memory4 x DDR4 DIMM, up to 128GB, dual channel, 3200MHz and up to 4733MHz (OC), ECC Un-buffered, XMP
    Expansion slotsPCIe 3.0 x16, PCIe 3.0 x1
    StorageM.2 2280 (PCIe 3.0 x4/x2 or SATA), 4 x SATA 6Gb/s, RAID 0/1/10
    LANRealtek GbE
    AudioRealtek HD Audio, 7.1 channels
    Video outputsDisplayPort 1.4 (5120x2880@60Hz), HDMI 2.1 (4096x2160@60Hz)
    Rear USB4 x USB 3.2 Gen 1, 4 x USB 2.0
    Internal USB headersUSB 3.2 Gen 1 (2 ports), USB 2.0 (2 ports)
    Other rear portsPS/2, RJ-45, 3 audio jacks
    Power connectors24-pin ATX, 8-pin CPU
    Fan headers1 x CPU fan, 1 x system fan
    Form factorMicro ATX, 24.4 x 24.4 cm
    Operating systemWindows 11 and Windows 10, 64-bit
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberA520M DS3H V2
    ModelA520M DS3H V2
    ConditionNew
    EAN4719331854690
    ManufacturerGigabyte
    Audio
    1. Realtek®&Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

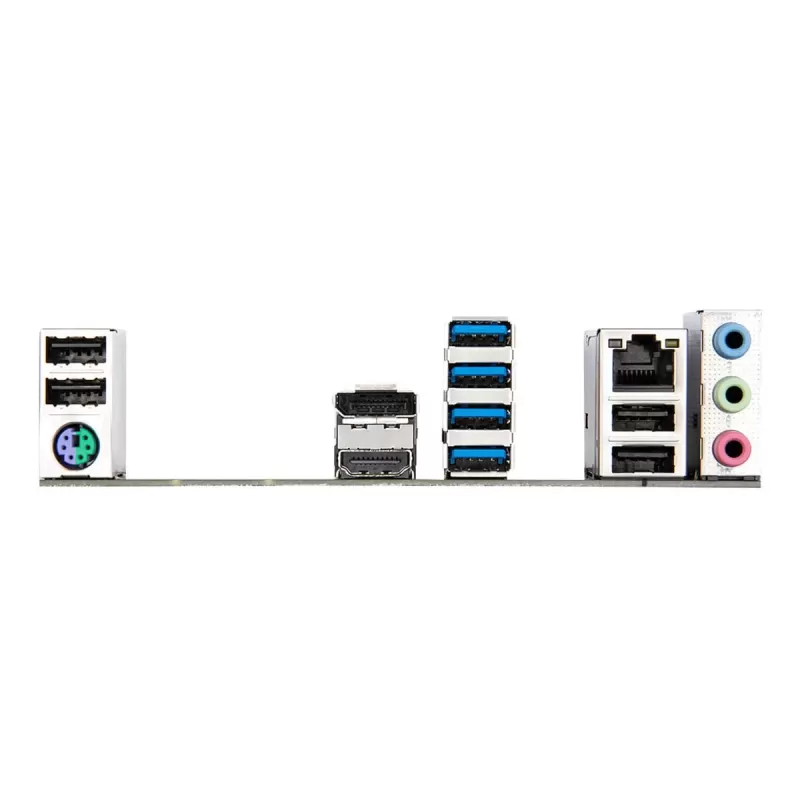

    Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DisplayPort
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
    ChipsetA520
    Compatibility for computer assemblyAMD Motherboards
    ConfigurationMicro ATX
    importerofficial
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 1 x USB 2.0/1.1 header
    11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    12. 1 x Clear CMOS jumper
    Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered&DIMM 1Rx8/2Rx8 memory modules
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)

    Memory TypeDDR4 DIMM
    Memory Volume128GB
    SocketAM4
    Storage
    &x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Supporting for RAID 0, RAID 1, and RAID 10
    Wired Communication1. Realtek GbE LAN chip (1 Gbps/100 Mbps)
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte A520M DS3H V2 DDR4 DIMM AM4
    Matching SKUsID:~58314~, NEW, OC: 36778, ML: 95A52006, ML2: 95A52007, CD: GA520MDS3HV2, MPN: A520M DS3H V2, EAN: 4719331854690
