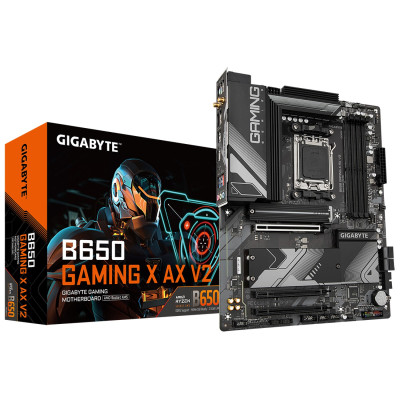

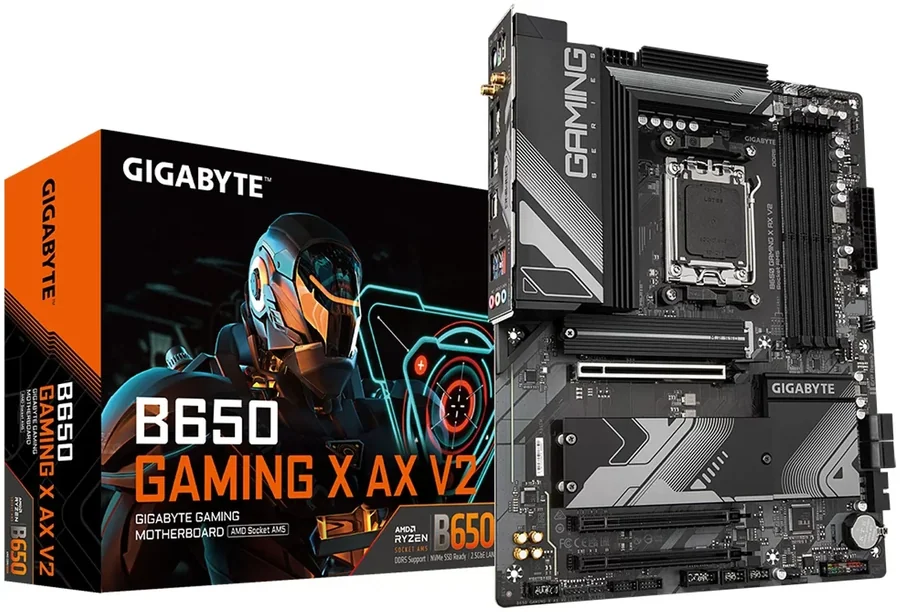

Gigabyte B650 GAMING X AX V2 Motherboard

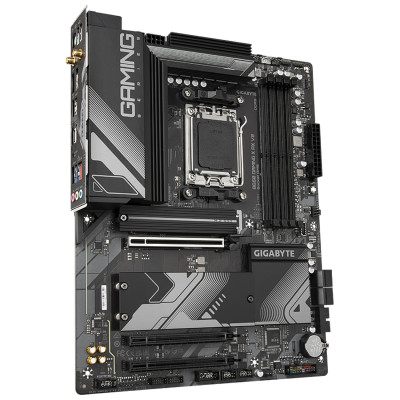

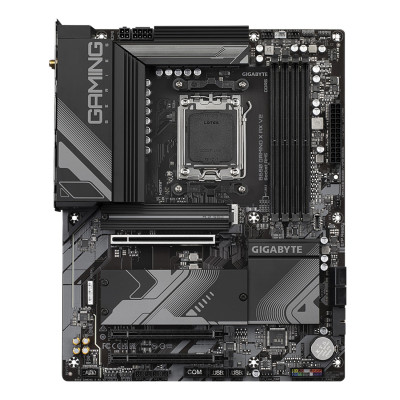

The Gigabyte B650 GAMING X AX V2 is an ATX motherboard for the AM5 socket, built for AMD Ryzen 7000, 8000 and 9000 Series processors. It is based on the AMD B650 chipset and supports DDR5 memory in four slots, up to 256GB and up to 8000 MT/s (OC), with AMD EXPO and XMP profiles.

An 8+2+2 direct digital VRM with 60A DrMOS, a six-layer 2X Copper PCB and fully covered MOSFET heatsinks provide a stable base. The board offers three M.2 slots with two enlarged heatsinks, 2.5GbE LAN, Wi-Fi 6E, a 20Gb/s front USB-C header and an integrated I/O shield.

Key features

• 8+2+2 power design - A direct digital VRM with 60A DrMOS, solid 8+4-pin CPU power connectors and a six-layer 2X Copper PCB deliver stable power to Ryzen processors.
• Three M.2 slots - A CPU M.2 slot running at PCIe 5.0 x4 with Ryzen 7000 and 9000 plus two PCIe 4.0 x4 slots, all for drives up to 25110, with two enlarged thermal guards. There are also four SATA 6Gb/s ports with RAID 0, 1 and 10.
• DDR5 memory - Four dual-channel DDR5 slots, up to 256GB and up to 8000 MT/s (OC), with AMD EXPO and XMP profiles.
• Network and wireless - Realtek 2.5GbE LAN and 2.4/5/6GHz Wi-Fi 6E with Bluetooth and two 2T2R SMA antenna connectors. The Wi-Fi module varies by board revision (Realtek, AMD or Intel AX210).
• Fast USB - An internal front USB-C header at USB 3.2 Gen 2x2 (20Gb/s), and on the rear USB-C and USB-A at USB 3.2 Gen 2, three USB 3.2 Gen 1 and three USB 2.0 ports.
• Assembly and cooling - PCIe EZ-Latch for graphics card release, a Multi-key button for reset, RGB switching or direct BIOS entry, a Q-Flash Plus button, Smart Fan 6 with five fan headers and RGB FUSION.
