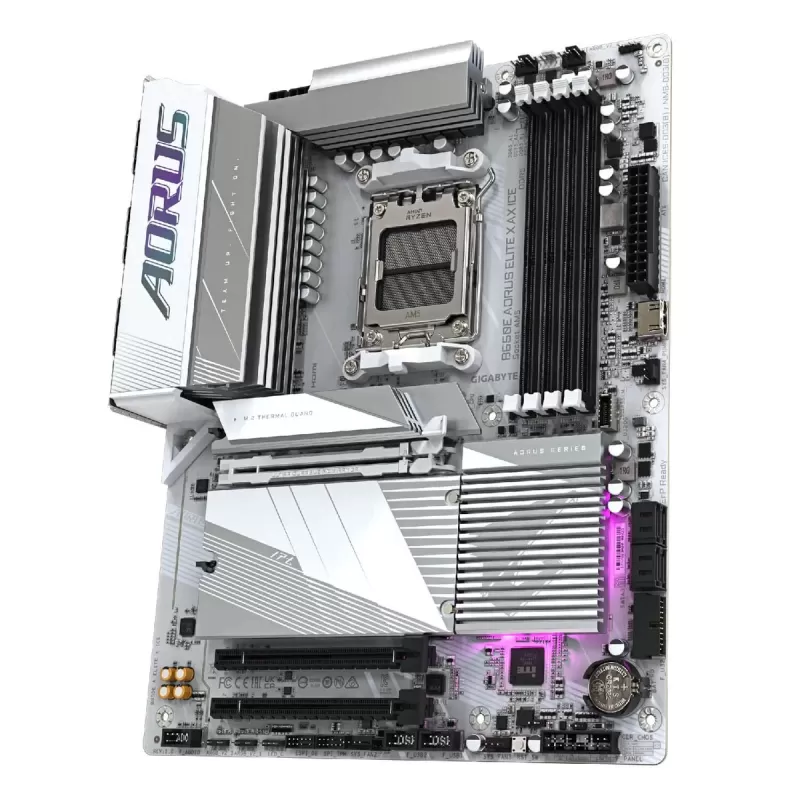

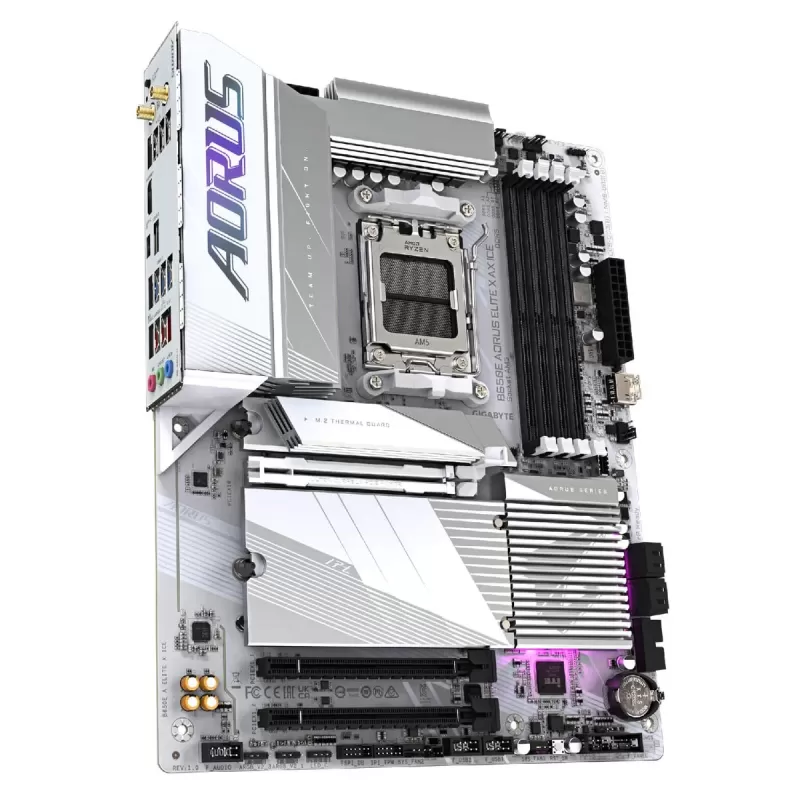

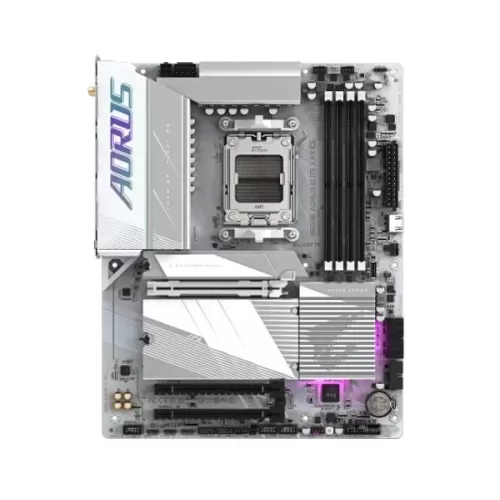

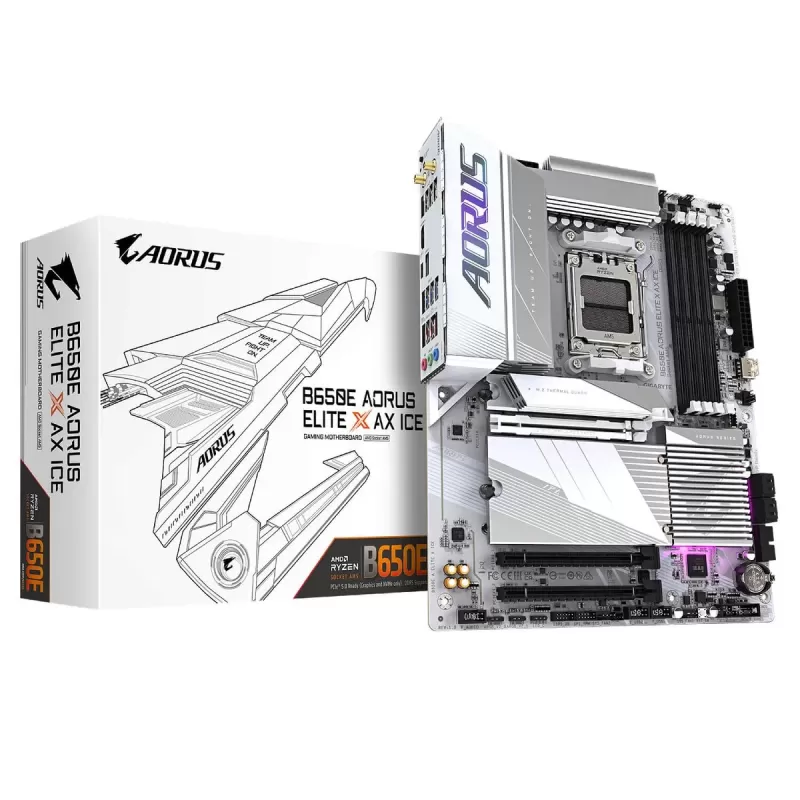

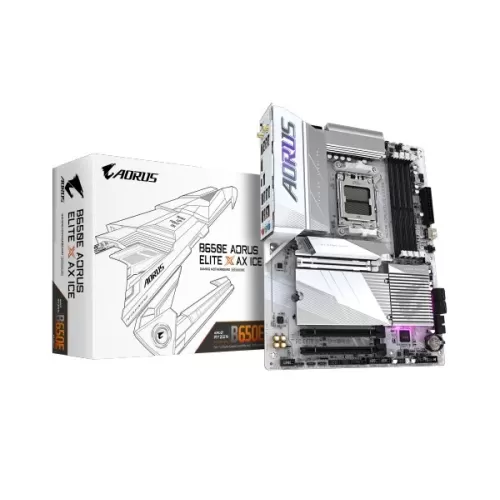

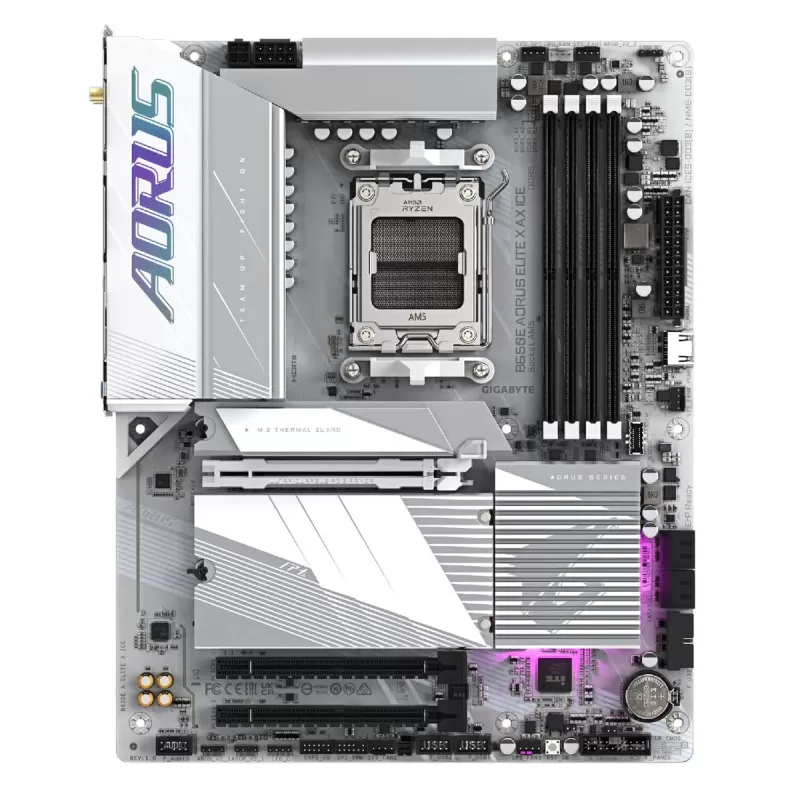

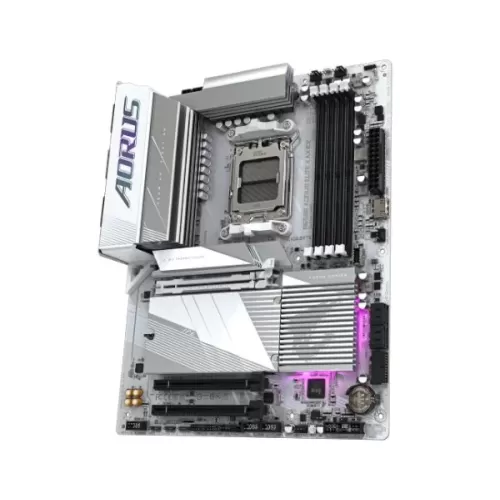

| Revew | Gigabyte B650E AORUS ELITE X AX ICE MotherboardThe Gigabyte B650E AORUS ELITE X AX ICE is a white ATX motherboard for the AM5 socket, built for AMD Ryzen 7000, 8000 and 9000 series processors. It is based on the AMD B650 chipset and supports DDR5 memory in four slots, up to 256GB and up to 8000 MT/s (OC) with AMD EXPO and XMP profiles. According to the manufacturer, the board uses a 12+2+2 digital VRM with 60A Dr.MOS, a 6 mm heatpipe and an M.2 Thermal Guard XL heatsink. It offers a PCIe 5.0 x16 slot, a PCIe 5.0 x4 M.2 slot, an HDMI port and a USB-C port with DisplayPort, 2.5GbE LAN and Wi-Fi 6E with Bluetooth 5.3.
Key features- 12+2+2 phase VRM - A Twin digital VRM with 60A Dr.MOS for the CPU cores and SOC, a 6-layer 2X Copper PCB and 8+4-pin CPU power connectors with solid pins.
- PCIe 5.0 for graphics and storage - A PCIe 5.0 x16 UD Slot X, 10 times stronger according to the manufacturer, and a PCIe 5.0 x4 M.2 slot (with Ryzen 7000 and 9000). Two PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports are also included.
- Advanced cooling - VRM Thermal Armor Advanced with a 6 mm heatpipe and a 7 W/mK thermal pad, and an M.2 Thermal Guard XL for the PCIe 5.0 drive. The I/O shield is integrated.
- Connectivity - An HDMI 2.1 port, a USB-C port with DisplayPort output (up to 40Gb/s with Ryzen 8000 and up to 10Gb/s with Ryzen 7000 and 9000), Realtek 2.5GbE LAN and Wi-Fi 6E with Bluetooth 5.3. A 20Gb/s front USB-C port is supported.
- Screwless building - EZ-Latch Plus and EZ-Latch Click let you install M.2 drives and heatsinks without screws, and PCIe EZ-Latch releases the graphics card easily. Sensor Panel Link (internal HDMI) drives an in-case info panel.
- White design and lighting - The ICE version in white suits light-themed builds, with RGB Fusion lighting: three ARGB Gen2 headers and one RGB header. 8-channel audio with a Realtek ALC897 codec and a rear Q-Flash Plus button.
Specifications| Manufacturer | Gigabyte | | Model | B650E AORUS ELITE X AX ICE (Rev. 1.0/1.1) | | Socket | AMD AM5 | | Supported CPUs | AMD Ryzen 7000, 8000 and 9000 | | Chipset | AMD B650 | | Memory | 4 x DDR5 DIMM, up to 256GB, dual channel, up to 8000 MT/s (OC), AMD EXPO and XMP | | Expansion slots | PCIe 5.0 x16 (with Ryzen 7000/9000), 2 x PCIe 3.0 x1 (x16 length) | | M.2 slots | 3: one PCIe 5.0 x4 and two PCIe 4.0 x4 | | SATA | 4 x SATA 6Gb/s, RAID 0/1/10 | | VRM | Twin digital 12+2+2, 60A Dr.MOS | | LAN | Realtek 2.5GbE | | Wireless | Wi-Fi 6E 2T2R, Bluetooth 5.3 | | Audio | Realtek ALC897, 7.1 channels | | Video outputs | HDMI 2.1, USB-C (DisplayPort 1.4), internal HDMI (Sensor Panel Link) | | Rear USB | USB-C, 2 x USB 3.2 Gen 2, 5 x USB 3.2 Gen 1, 4 x USB 2.0 | | Internal USB headers | USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (4 ports) | | Power connectors | 24-pin ATX, 8+4-pin CPU | | Lighting | 3 x ARGB Gen2 headers, 1 x RGB header | | Color | White | | Form factor | ATX, 30.5 x 24.4 cm |
|
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | B650E AORUS ELITE X AX ICE |
| Model | B650E AORUS ELITE X AX ICE |
| Color | white |
| Condition | New |
| EAN | 4719331860554 |
| Manufacturer | Gigabyte |
| Audio | Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Back Panel Connectors | 1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port |
| Chipset | B650 |
| Compatibility for computer assembly | AMD Motherboards |
| Configuration | ATX |
| Internal Ports / Inputs | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
* Only available with the AMD Radeon™ Graphics Processors.
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Memory Type | DDR5 DIMM |
| Socket | AM5 |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Wired Communication | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless network | Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless
(Actual data rate may vary depending on environment and equipment.) |
