| Specification | |

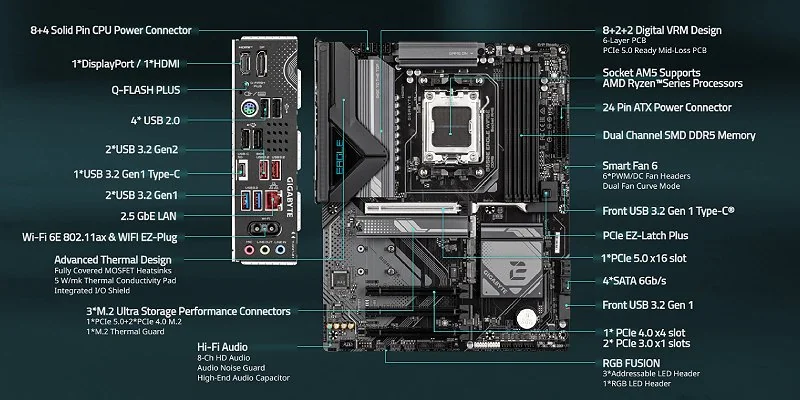

| Revew | Gigabyte B650E EAGLE WiFi6E AM5 ATX MotherboardThe B650E EAGLE targets builders who want a full AMD AM5 platform without giving up modern connectivity. Built in the ATX format, it pairs the B650E chipset with current-generation Ryzen support, a PCIe 5.0 path for both graphics and storage, and next-generation wireless. Platform & chipsetThe board is built around the AM5 socket and supports AMD Ryzen 7000, 8000 and 9000 series processors, so you can start with a current chip and upgrade later on the same board. The B650E chipset unlocks the primary PCIe 5.0 lane, which lets you run a fast graphics card alongside a fifth-generation M.2 drive. EZ-Latch Plus releases the PCIe x16 slot quickly and without screws, while Q-Flash Plus lets you flash the BIOS before a CPU, memory or graphics card is even installed.

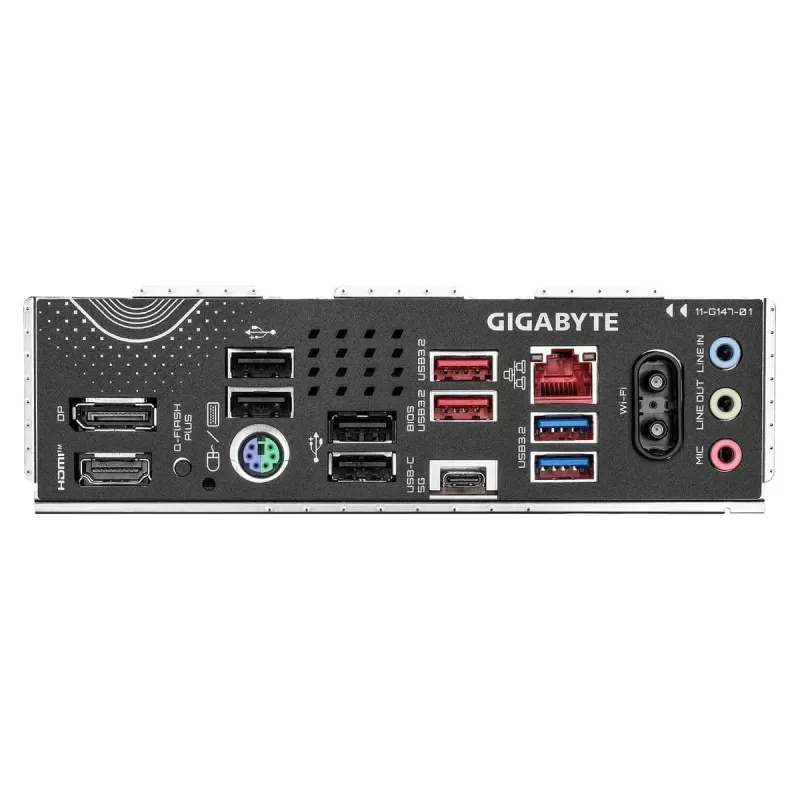

Memory & expansionFour DIMM slots in dual-channel configuration accept DDR5 memory, with AMD EXPO and Intel XMP profiles for one-step speed tuning. Beyond the PCIe 5.0 lane, additional M.2 slots run at PCIe 4.0, and an M.2 Thermal Guard keeps long 25110 drives cool so they hold their rated speeds. The result is a broad storage layout that combines one very fast primary drive with room for further capacity. Power, cooling & connectivityA digital 8+2+2 phase power array is designed to deliver steady voltage even under sustained load, and the VRM Thermal Armor Advanced moves heat away from those components. On the wireless side the board carries Wi-Fi 6E (802.11ax) alongside wired LAN, and WiFi EZ-Plug simplifies antenna attachment. The rear panel offers DisplayPort and HDMI for display output, USB ports rated up to 10Gb/s, and Smart Fan 6 control with multiple temperature sensors and FAN STOP support.
|
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | B650E EAGLE WIFI6E |
| Model | B650E EAGLE WiFi6E |
| Condition | New |
| Video Card | HDMI / DisplayPort |
| Manufacturer | Gigabyte |
| Audio | 3 port |
| Chipset | B650 |
| Compatibility for computer assembly | Hardware and Software |
| Configuration | ATX |
| importer | official |
| Interface | USB 2.0 / USB 3.2 / USB Type-C |
| Memory Interface | SATA3 / M.2 PCIe |
| Memory Type | DDR5 |
| Socket | AM5 |
| Wired Communication | Wi-Fi 6/6E (802.11ax) / LAN 2.5 Gb/s / Bluetooth 5.3 |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Gigabyte B650E EAGLE WiFi6E DDR5 AM5 |
| Matching SKUs | ID:~82646~, NEW, OC: 43797, ML: 95B65111, CD: GB650EEAGLEWIFI6E, MPN: B650E EAGLE WIFI6E |
