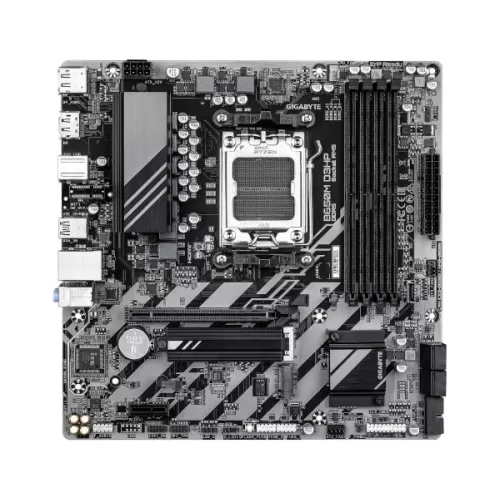

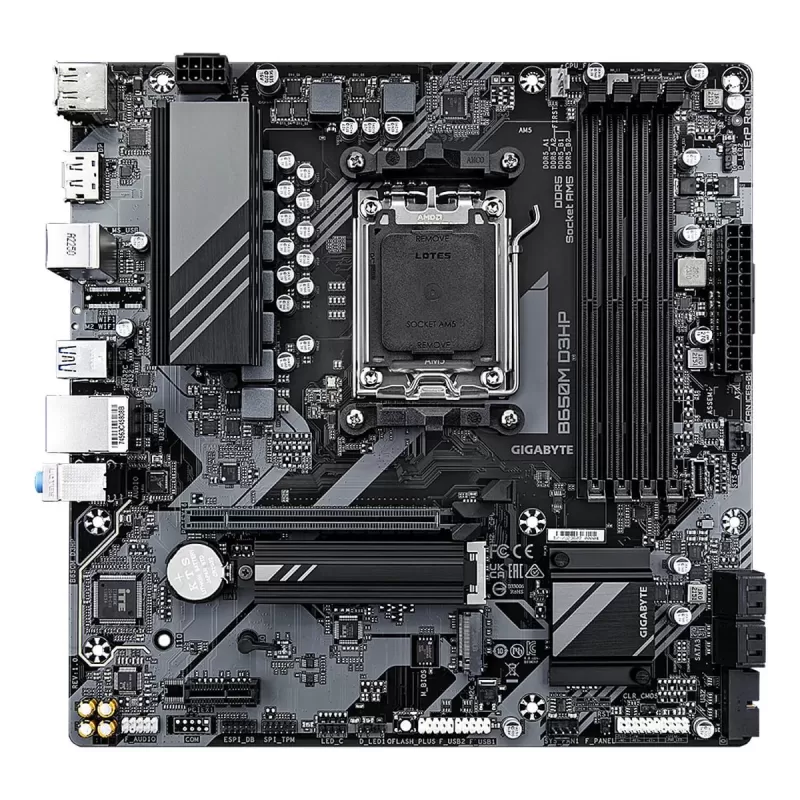

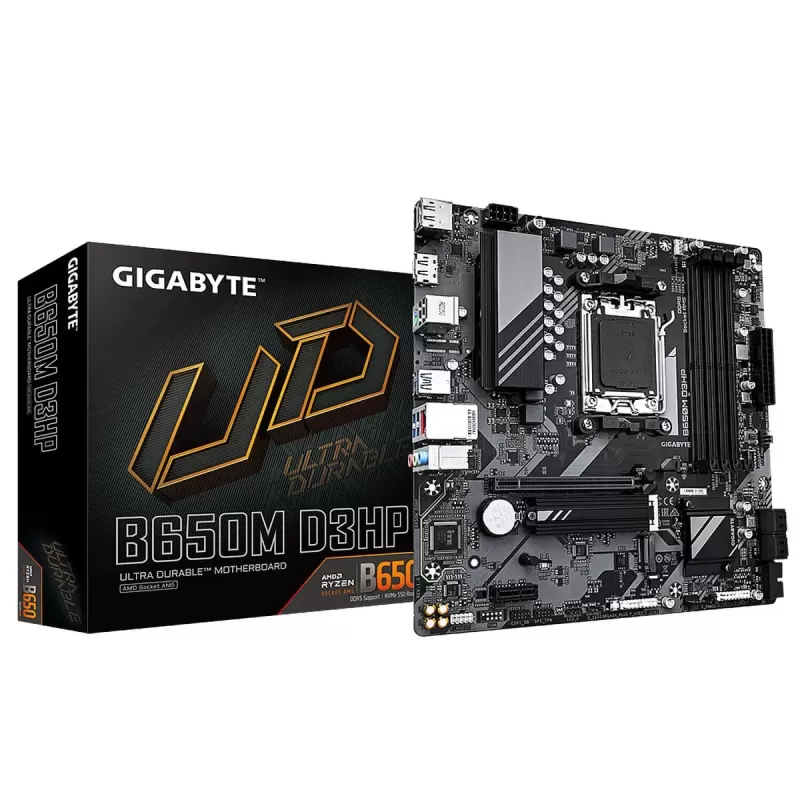

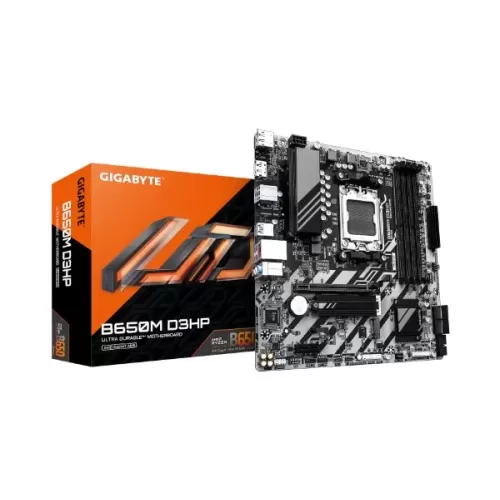

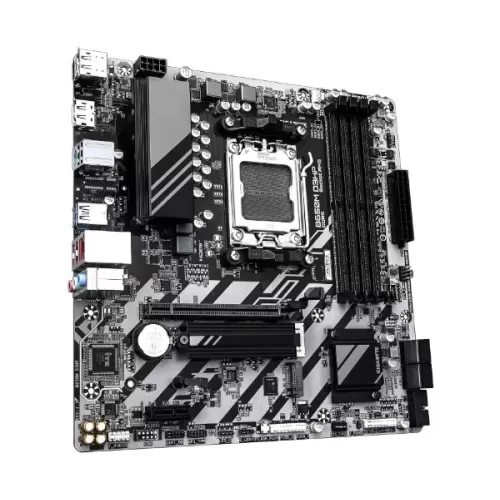

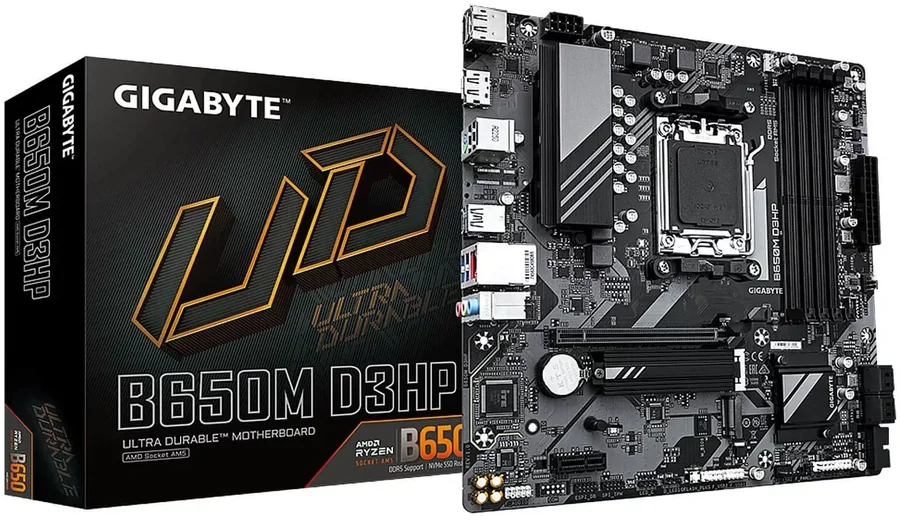

| Revew | Gigabyte B650M D3HP MotherboardThe Gigabyte B650M D3HP is a Micro ATX motherboard for socket AM5 from the manufacturer's Ultra Durable series, based on the AMD B650 chipset. It supports AMD Ryzen 7000, 8000 and 9000 series processors and DDR5 memory, and suits a modern gaming or work PC. The board has four DDR5 slots for up to 256GB of memory, a PCIe 4.0 x16 slot with EZ-Latch, two PCIe 4.0 x4 M.2 slots and Realtek 2.5GbE. The rear panel offers two DisplayPort outputs, one HDMI output and a USB-C port. This model has no Wi-Fi.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | B650M D3HP | ||||||||||||||||||||||||||||||||||||||
| Model | B650M D3HP | ||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||
| EAN | 4719331857851 | ||||||||||||||||||||||||||||||||||||||
| Manufacturer | Gigabyte | ||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | ||||||||||||||||||||||||||||||||||||||

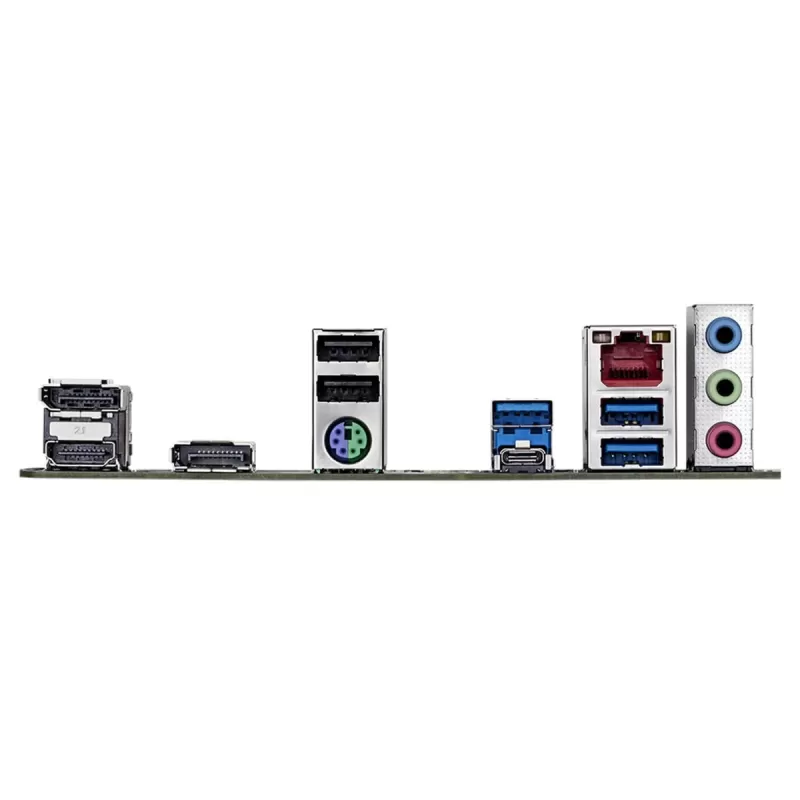

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks | ||||||||||||||||||||||||||||||||||||||
| Chipset | B650 | ||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||
| Configuration | Micro ATX | ||||||||||||||||||||||||||||||||||||||
| importer | official | ||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper | ||||||||||||||||||||||||||||||||||||||
| Memory | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | ||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 DIMM | ||||||||||||||||||||||||||||||||||||||
| Memory Volume | 192GB | ||||||||||||||||||||||||||||||||||||||
| Socket | AM5 | ||||||||||||||||||||||||||||||||||||||
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices | ||||||||||||||||||||||||||||||||||||||
| Wired Communication | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | ||||||||||||||||||||||||||||||||||||||
