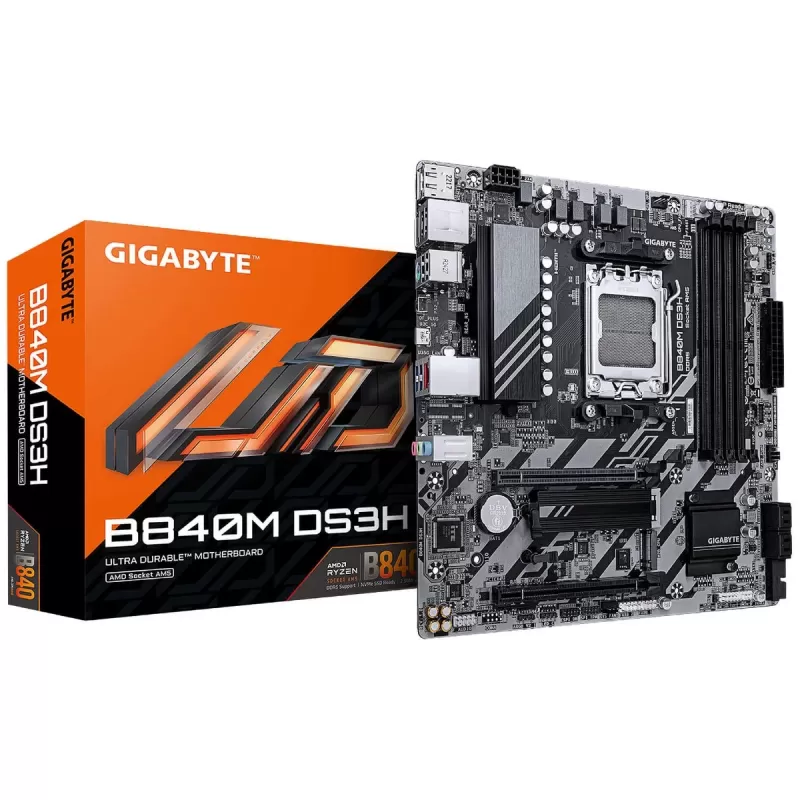

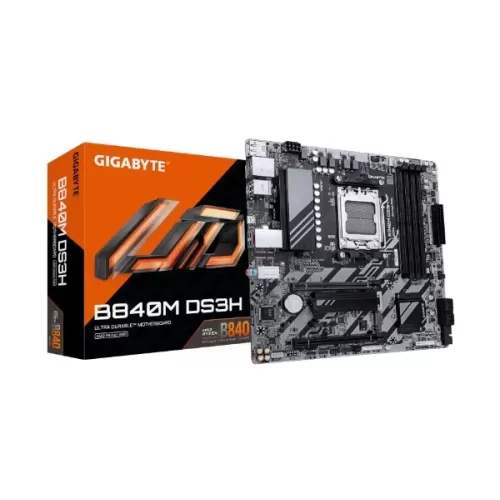

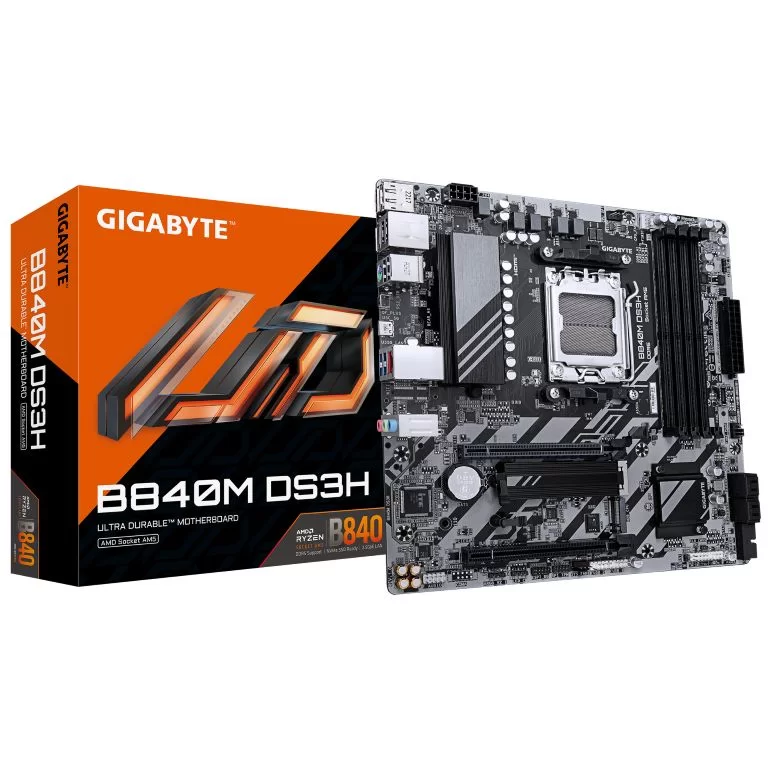

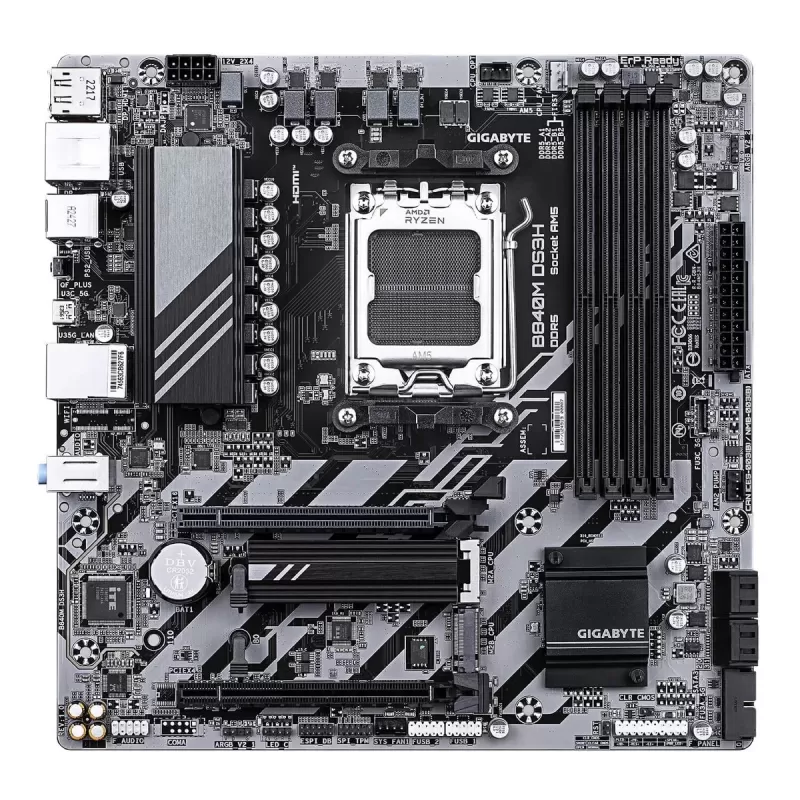

Motherboard Gigabyte B840M DS3H

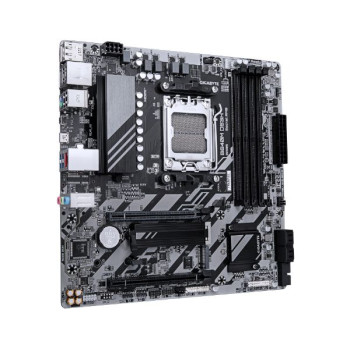

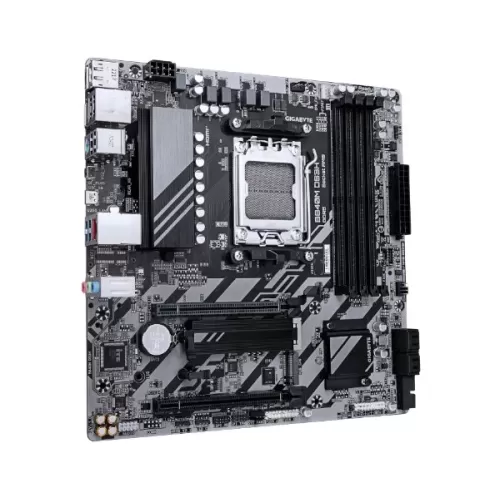

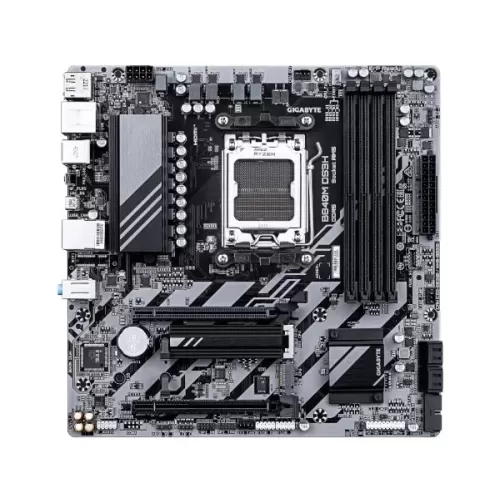

The GIGABYTE B840M DS3H is a Micro ATX (24.4 x 24.4 cm) motherboard with the AMD B840 chipset and socket AM5, supporting AMD Ryzen 9000, 8000 and 7000 Series processors. Four dual-channel DDR5 slots support up to 256GB at up to 8200 MT/s (OC), with AMD EXPO and XMP.

It is a great base for a current AM5 build: two M.2 slots on PCIe 4.0 x4 from the CPU, a PCIe 4.0 x16 slot with the EZ-Latch quick release, 2.5GbE LAN, rear USB-C, and HDMI plus two DisplayPort outputs for Ryzen integrated graphics.

X3D Turbo Mode in BIOS boosts gaming performance on Ryzen 9000 processors with one click. An 8+2+2 digital VRM with heatsink, M.2 Thermal Guard, Smart Fan 6 with 4 fan headers, a Q-Flash Plus button, EZ-Debug LEDs and two ARGB headers complete the board.

Key features

• X3D Turbo Mode - A one-click BIOS optimization that boosts gaming performance on Ryzen 9000 processors, up to 18% more FPS according to GIGABYTE, depending on the game.
• Fast DDR5 - Four dual-channel DDR5 slots, up to 256GB (64GB per DIMM), up to 8200 MT/s (OC), with AMD EXPO and XMP.
• Two PCIe 4.0 M.2 slots - Two CPU-connected M.2 slots supporting PCIe 4.0 x4/x2, one up to 25110 length, plus four SATA ports with RAID.

• PCIe 4.0 with EZ-Latch - A PCIe 4.0 x16 slot with quick-release design for easy graphics card installation and removal, plus a PCIe 3.0 x4 slot.
• 8+2+2 VRM and cooling - An 8+2+2 digital VRM with VRM heatsink, chipset heatsink and M.2 Thermal Guard.

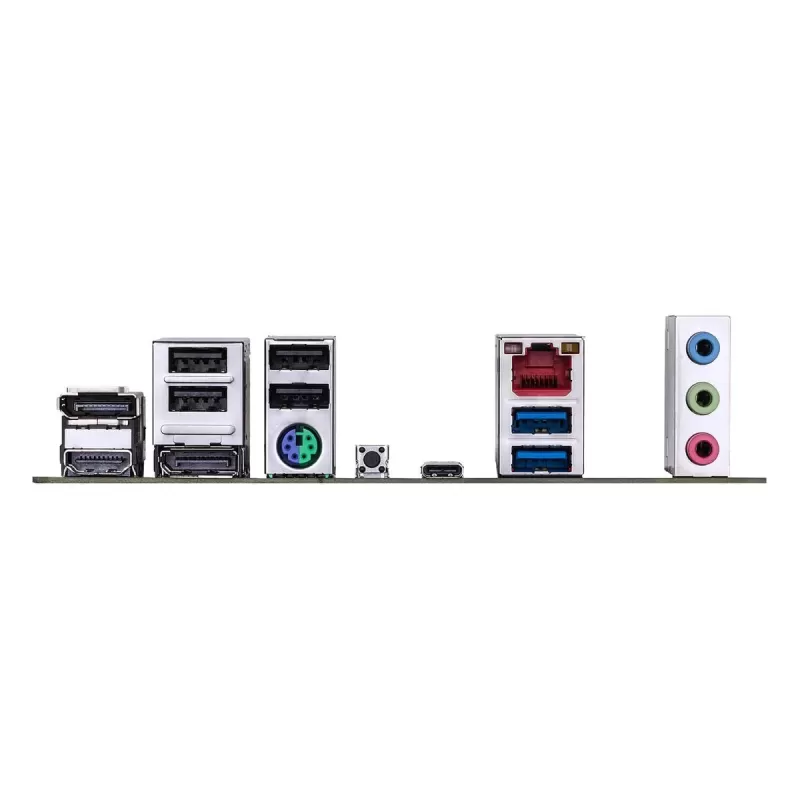

• Networking and I/O - Realtek 2.5GbE LAN, rear USB 3.2 Gen 1 Type-C and two USB 3.2 Gen 1, HDMI 2.1 and two DisplayPort 1.4 for up to three displays.

• DIY-friendly - Q-Flash Plus button to update BIOS without CPU or memory, EZ-Debug LEDs, Smart Fan 6 with 4 PWM/DC headers and two ARGB Gen2 headers.
