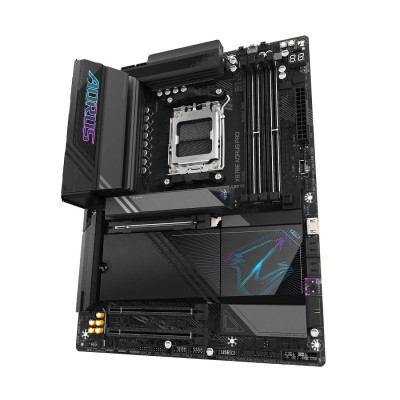

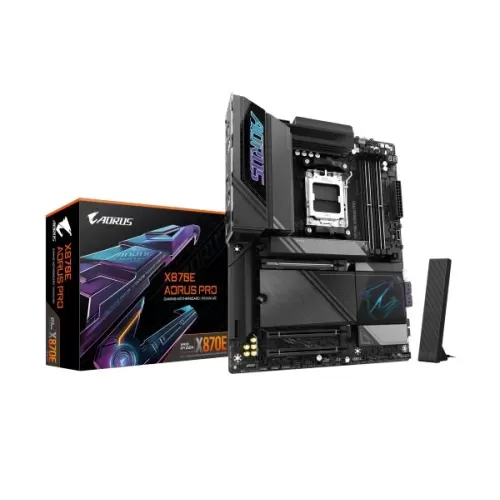

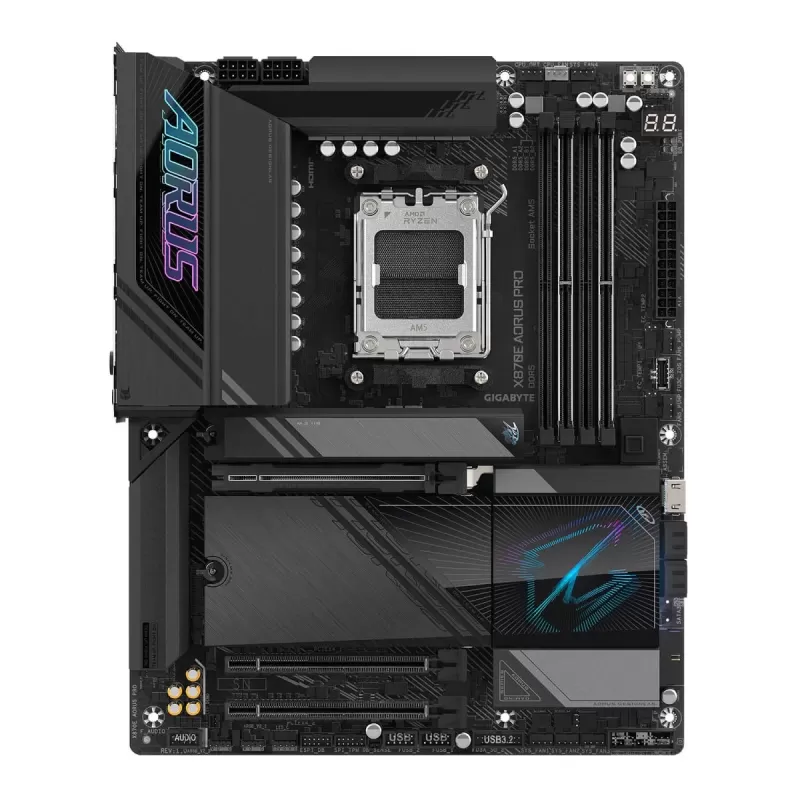

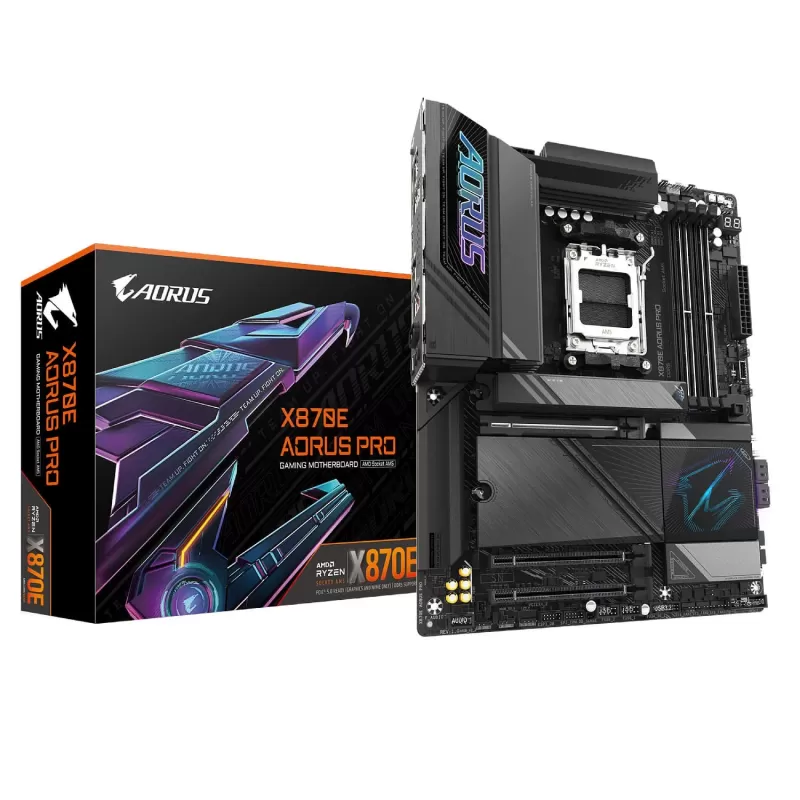

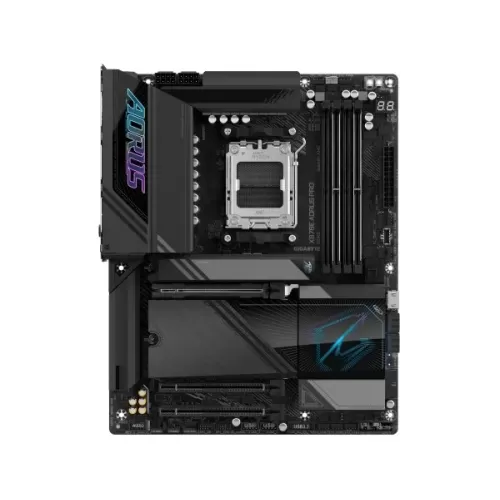

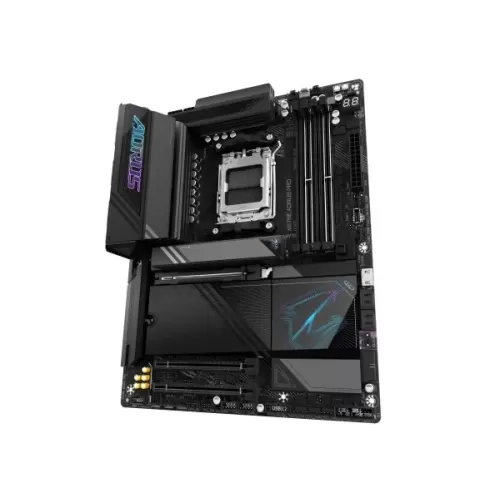

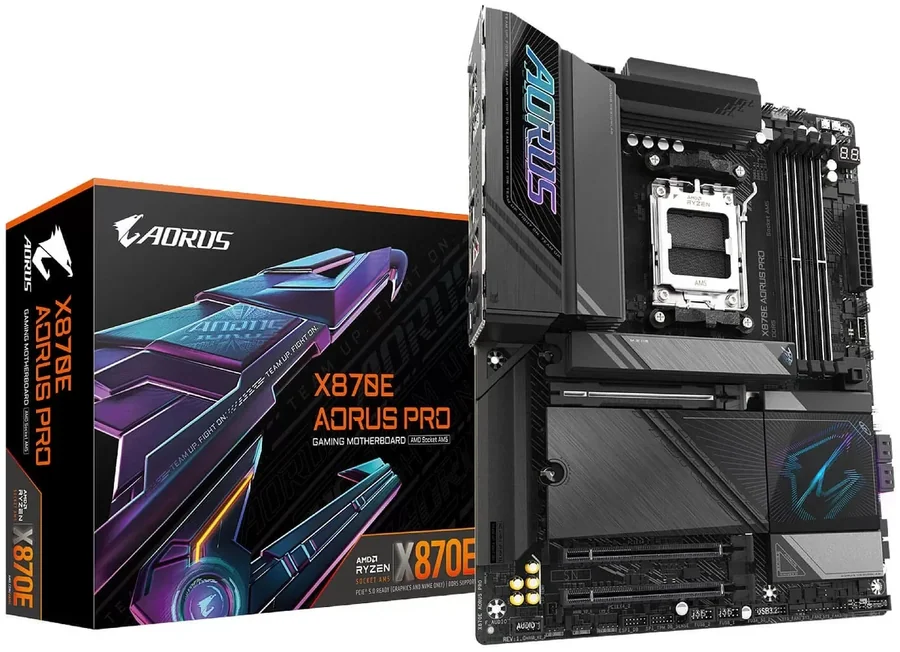

| Revew | Gigabyte X870E AORUS PRO MotherboardThe Gigabyte X870E AORUS PRO is an ATX AORUS motherboard with an AM5 socket and the AMD X870E chipset for AMD Ryzen 9000, 8000 and 7000 processors. It suits gaming and creator PCs that need PCIe 5.0 for both the graphics card and storage. The board has a digital 16+2+2 phase VRM with 80A power stages, four DDR5 slots with EXPO and XMP support, a reinforced PCIe 5.0 x16 slot, four M.2 slots with three at PCIe 5.0, two USB4 ports, 2.5GbE LAN and Wi-Fi 7. It measures 30.5 x 24.4 cm.
Key features- Digital 16+2+2 VRM - A twin digital 16+2+2 phase VRM with 80A smart power stages and two 8-pin connectors powers Ryzen processors reliably. Fully covered MOSFET heatsinks lower the temperature.
- Fast DDR5 memory - Four dual-channel DDR5 slots support up to 256GB and speeds up to 8200 MT/s overclocked, with AMD EXPO and Intel XMP profiles.
- PCIe 5.0 for graphics and storage - A PCIe UD Slot X PCIe 5.0 x16 slot with EZ-Latch Plus release and three PCIe 5.0 x4 M.2 slots from the CPU, one of them for drives up to 25110. A fourth M.2 slot runs at PCIe 4.0 x4, plus four SATA ports.
- USB4 and display - Two USB4 USB-C ports with DisplayPort output up to 3840x2160 at 240Hz, an HDMI 2.1 port and an internal front HDMI port (Sensor Panel Link) for a sensor display inside the case.
- Networking and Wi-Fi 7 - A Realtek 2.5GbE controller and Qualcomm Wi-Fi 7 QCNCM865 with Bluetooth 5.4 and 320MHz channel support. The WIFI EZ-Plug antenna connector and a directional antenna make installation easy.
- Easy to build - Quick release for the graphics card and M.2 drives, a Q-Flash Plus button for BIOS updates and Realtek ALC1220 audio with DTS:X Ultra and an optical S/PDIF output.
Specifications| Manufacturer | Gigabyte | | Model | X870E AORUS PRO | | CPU socket | AM5 | | Supported processors | AMD Ryzen 9000, 8000, 7000 | | Chipset | AMD X870E | | Memory | 4 x DDR5 DIMM, dual channel, up to 256GB, 5200/4800 MT/s, up to 8200 MT/s (OC), AMD EXPO and XMP | | Expansion slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 running at x4, 1 x PCIe 3.0 x16 running at x4 | | Storage | 4 x M.2 (3 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s | | RAID | NVMe 0, 1, 5, 10; SATA 0, 1, 10 | | Wired LAN | Realtek 2.5GbE | | Wireless | Qualcomm Wi-Fi 7 QCNCM865, Bluetooth 5.4 | | Display outputs | 2 x USB4 (DisplayPort), HDMI 2.1, internal front HDMI | | Rear USB | 2 x USB4 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0 | | Internal USB | USB-C 3.2 Gen 2x2 header, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0 headers | | Audio | Realtek ALC1220, DTS:X Ultra, 7.1-channel, optical S/PDIF | | Power delivery | Digital 16+2+2 phases, 80A stages, 24-pin, 2 x 8-pin | | BIOS | 256Mbit flash, AMI UEFI, Q-Flash Plus | | Operating system | Windows 11 64-bit | | Color | Black | | Form factor | ATX, 30.5 x 24.4 cm |
In the box- Gigabyte X870E AORUS PRO motherboard
- User's manual
- Quick installation guide
- Antenna
- 2 x SATA cables
- Noise detection cable
- G Connector
- M.2 thermal pad
- 3 packs of M.2 thick/thin rubber pads
|
