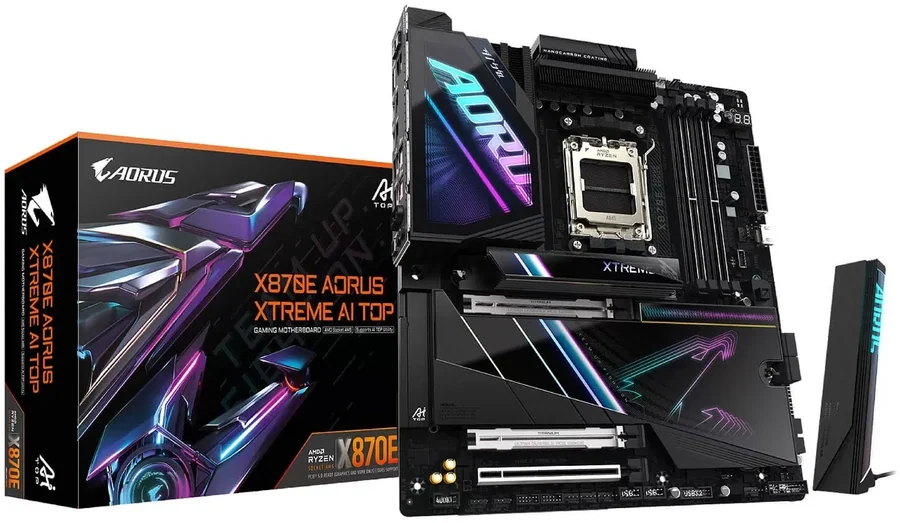

Gigabyte X870E AORUS XTREME AI TOP Motherboard

The Gigabyte X870E AORUS XTREME AI TOP is an E-ATX motherboard from the AORUS series, built on the AMD X870E chipset for AMD Ryzen 9000, 8000 and 7000 processors in the AM5 socket. It is part of the GIGABYTE AI TOP platform for training AI models locally, and it also suits workstations, content creation and gaming.

The board offers an 18+2+2 phase digital VRM, four DDR5 slots with speeds up to 8800MT/s (OC), two PCIe 5.0 x16 slots and four M.2 slots, one of them PCIe 5.0. For connectivity it has two 40Gbps USB4 ports with DisplayPort output, an HDMI port, dual 10GbE LAN, Wi-Fi 7 and Bluetooth 5.4, plus audio with an ESS ES9118 DAC and a Realtek ALC1220 codec.

Key features

• GIGABYTE AI TOP platform - Designed for training AI models on your desk with the AI TOP Utility, with two PCIe 5.0 x16 slots, four M.2 slots and dual 10GbE LAN.
• 18+2+2 phase power - A digital VRM with 110A Smart Power Stages on an 8-layer, 2X copper PCB delivers stable power to high-end Ryzen processors.
• DDR5 up to 8800MT/s - Four dual-channel DDR5 slots, up to 256GB, with AMD EXPO, XMP and ECC memory support. DDR Wind Blade cools the modules, and AORUS AI SNATCH boosts memory with one click.
• Expansion and storage - Two PCIe 5.0 x16 slots (x16 or x8/x8 with Ryzen 9000/7000) with the reinforced Titanium PCIe UD Slot X, and four M.2 slots. Magnetic M.2 EZ-Match and EZ-Latch Plus/Click make screwless installation easy.
• USB4, 10GbE and Wi-Fi 7 - Two 40Gbps USB4 ports with DisplayPort, two Marvell AQtion AQC113C 10GbE controllers and Wi-Fi 7 with Bluetooth 5.4 and a directional high-gain antenna with ARGB lighting.
• Audio and Sensor Panel Link - An ESS SABRE ES9118 DAC with a Realtek ALC1220 codec and DTS:X Ultra support. An onboard HDMI port (Sensor Panel Link) makes it easy to connect an in-case display panel.
