Motherboard MAXSUN Terminator B850BKB WIFI DDR5 AM5

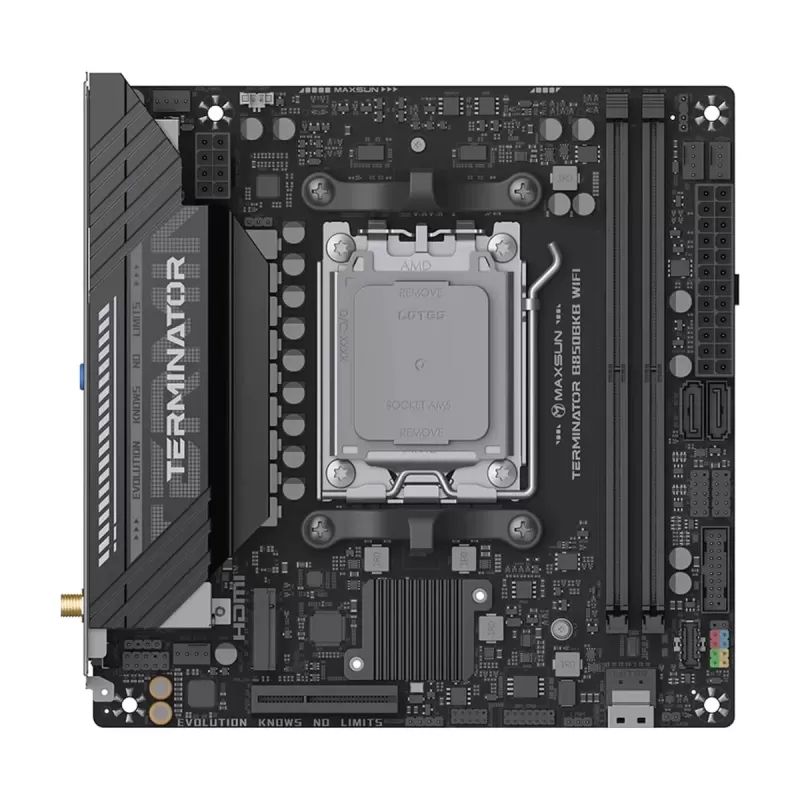

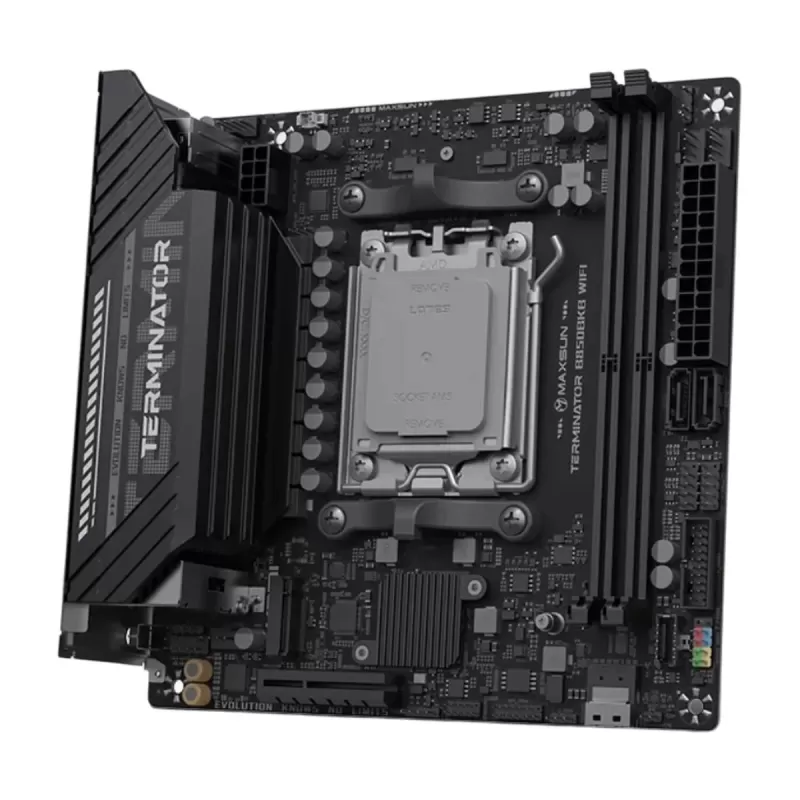

MAXSUN Terminator B850BKB WIFI Motherboard · AMD AM5 · Mini ITX

The MAXSUN Terminator B850BKB WIFI is a Mini ITX board based on the AMD B850 chipset and AM5 socket, built for AMD Ryzen 7000, 8000 and 9000 series processors. Despite the compact format it brings strong power delivery, PCIe 5.0 storage and a clean back-slot connector design for advanced small form factor systems.

Platform & chipset

The board supports AMD Ryzen 7000, 8000 and 9000 CPUs through the AM5 socket and is based on the B850 chipset in a Mini ITX layout. A user-friendly design adds distributed Debug LEDs and a CLR_CMOS button, while the PTM UI BIOS offers a smooth, simple operating experience for tuning.

Memory & expansion

Memory runs in dual-channel mode across two DIMM slots with AMD EXPO profile support and OC speeds up to 8400MHz, leaving generous tuning headroom for such a small format. Storage highlights two full-speed M.2 slots in PCIe 5.0 x4 alongside an SFF-8654 4i interface, for fast drives and tidy connectivity.

Power, cooling & connectivity

The power stage is built from 6+2+1 phases with a 110A SPS Vcore to support a TDP up to 200W. The board includes Wi-Fi 6E with Bluetooth 5.4, and two Type-C ports: a rear one at 10Gbps with DP 1.4 support and a front one at 20Gbps. The back-slot design keeps the look clean with stable signal transmission.

• Socket: AMD AM5 (Ryzen 7000/8000/9000)
• Chipset: AMD B850
• Form factor: Mini ITX
• Memory: 2x DDR5 slots, EXPO · up to 8400MHz (OC)
• Storage: 2x M.2 PCIe 5.0 x4 · SFF-8654 4i
• Power: 6+2+1 phases · 110A Vcore · 200W TDP
• Connectivity: Wi-Fi 6E · Bluetooth 5.4 · Type-C 20G/10G
