| Specification | |

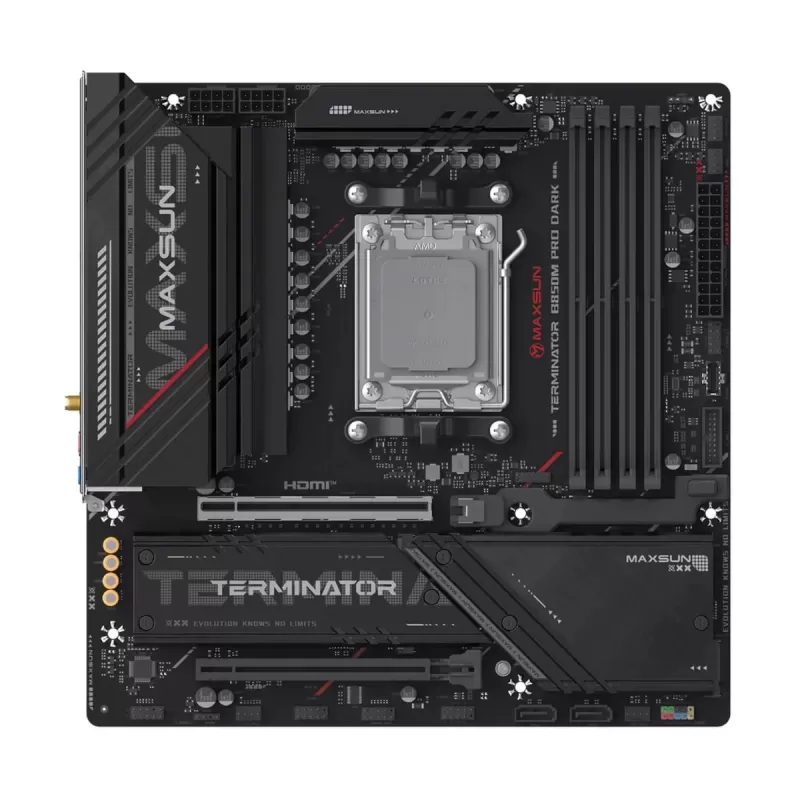

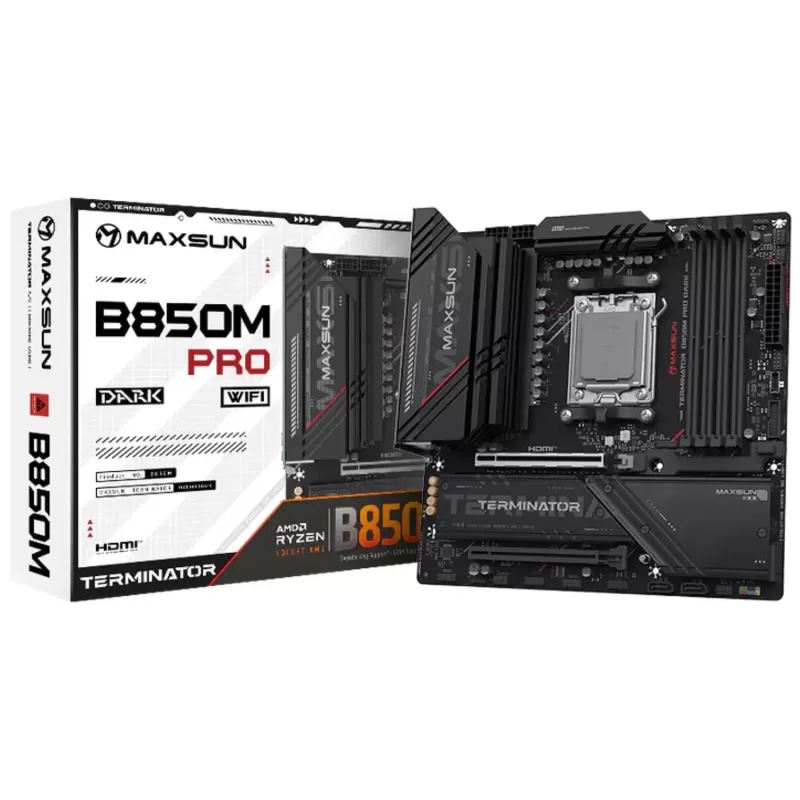

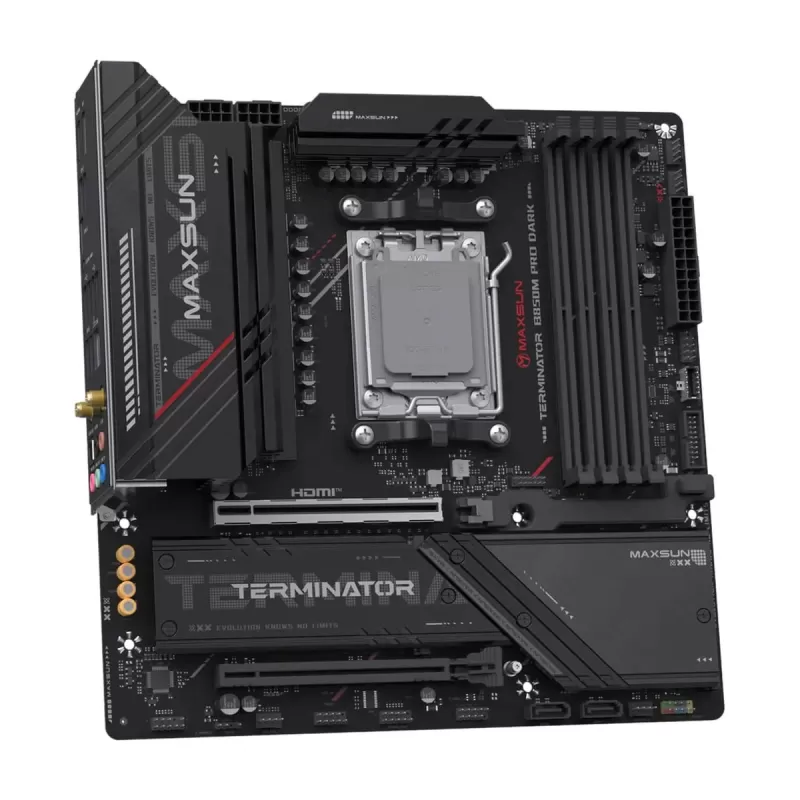

| Revew | MAXSUN Terminator B850M DARK WiFi Motherboard - AMD AM5, DDR5The MAXSUN Terminator B850M DARK WiFi is a Micro ATX board for the AMD AM5 platform, finished in a dark design with RGB lighting. It combines a strong digital power stage, fast DDR5 memory, a PCIe 5.0 slot and quick wireless networking, aimed at a performance system for gaming and multitasking. Platform & chipsetThe board is built on the AMD B850 chipset in the AM5 socket and supports Ryzen 7000, 8000 and 9000 series processors. Its Micro ATX form factor keeps the layout compact, while the dark design is paired with a reinforced PCIe slot, an upgraded durable PCB and customisable MAXSUN SYNC lighting.
Memory & expansionThe board carries four DDR5 memory slots in dual-channel mode, with support for speeds up to 7200+ MHz in overclocking mode for strong performance in multitasking and gaming. For expansion and storage, it offers a PCIe 5.0 x16 slot for a future graphics card and two M.2 slots running PCIe 4.0 for fast NVMe drives. Power, cooling & connectivityPower delivery uses a 12+2+1 phase digital design with Dr.MOS components for especially stable voltage to advanced Ryzen processors. Connectivity includes fast 2.5G Wi-Fi wireless networking and a pair of USB-C interfaces for quick data transfer straight out of the box, alongside USB 2.0 and USB 3.2 ports.
|
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | MS-Terminator B850M DARK WIFI |
| Model | Terminator B850M DARK WiFi |
| Condition | New |
| Video Card | HDMI / DisplayPort |
| Manufacturer | Maxsun |
| Audio | 5 port + S/PDIF |
| Chipset | B850 |
| Compatibility for computer assembly | Hardware and Software |
| Configuration | Micro ATX |
| Free Memory Slots | 4 |
| Interface | USB 2.0 / USB 3.2 / USB Type-C |
| Memory Interface | SATA3 / M.2 PCIe |
| Memory Type | DDR5 |
| Socket | AM5 |
| Wired Communication | Wi-Fi 6/6E (802.11ax) / LAN 2.5 Gb/s / Bluetooth 5.2 |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard MAXSUN Terminator B850M DARK WiFi DDR5 AM5 |
| Matching SKUs | ID:~82514~, NEW, OC: 43778, CD: MS-TER-B850MDARKWIFI, MPN: MS-Terminator B850M DARK WIFI |
