Motherboard MSI B850M GAMING PLUS WIFI DDR5 AM5

Motherboard MSI B850M GAMING PLUS WIFI

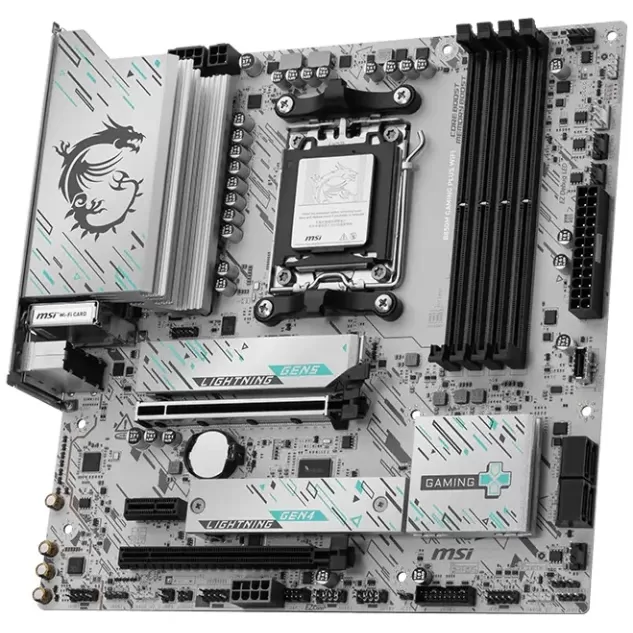

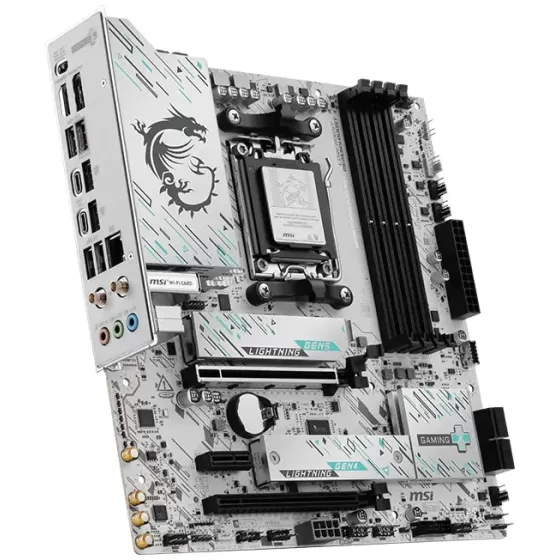

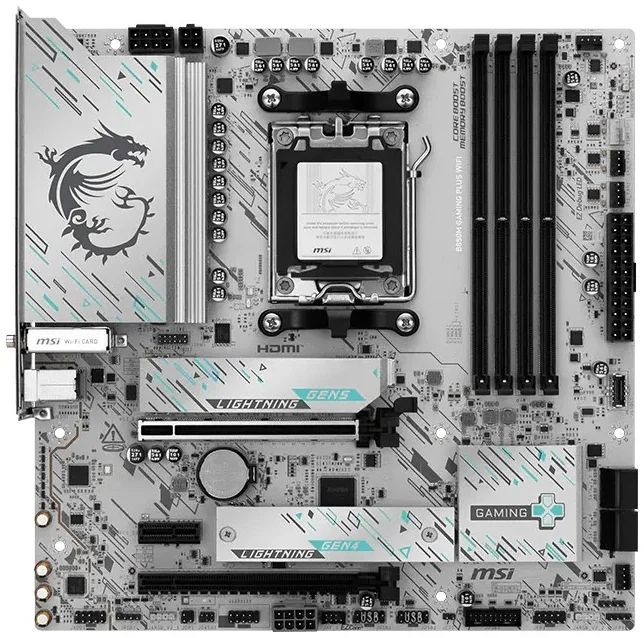

The MSI B850M GAMING PLUS WIFI is a Micro ATX motherboard for socket AM5, based on the AMD B850 chipset and built for AMD Ryzen 9000, 8000 and 7000 processors. It takes four DDR5 modules up to 256GB and offers a PCIe 5.0 x16 slot for the graphics card plus a fast PCIe 5.0 M.2 slot.

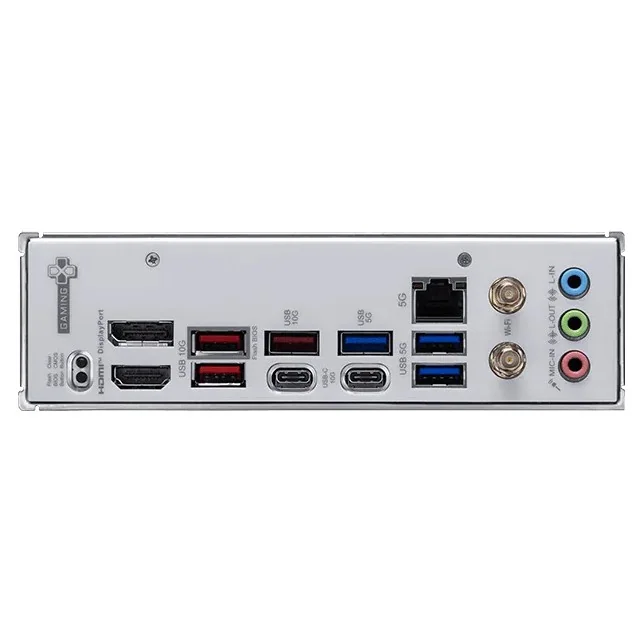

Wi-Fi 7 and Bluetooth 5.4 come pre-installed, along with 5G wired LAN, two rear USB-C ports, a front USB-C header and a silver-toned design. It suits a compact gaming or work PC with room to upgrade later.

Key features

• 8+2+1 power design - A direct digital power design with 60A SPS, 8+4-pin connectors and Core Boost keeps the board stable under heavy gaming loads.
• DDR5 up to 8200+ MT/s - Four DDR5 slots up to 256GB with AMD EXPO support, and the BIOS Latency Killer feature cuts memory latency by up to 12%.
• PCIe 5.0 for GPU and SSD - A PCIe 5.0 x16 slot from the CPU and a PCIe 5.0 x4 M.2 slot, plus a supplemental 8-pin PCIe power connector for powerful graphics cards.
• Wi-Fi 7 and 5G LAN - A pre-installed Wi-Fi 7 module with Bluetooth 5.4 and Realtek 5Gbps wired LAN for fast, stable connections.
• Extended cooling - An extended VRM heatsink with 7W/mK thermal pads, an enlarged chipset heatsink and M.2 Shield Frozr to keep the SSD performing.
• Easy build and debugging - EZ Debug LED and EZ Memory Detection LED point to the source of a problem, and the EZ Conn JAF_1 header simplifies fan and lighting connections.

Specifications
