Motherboard MSI PRO B650-S WIFI DDR5 AM5

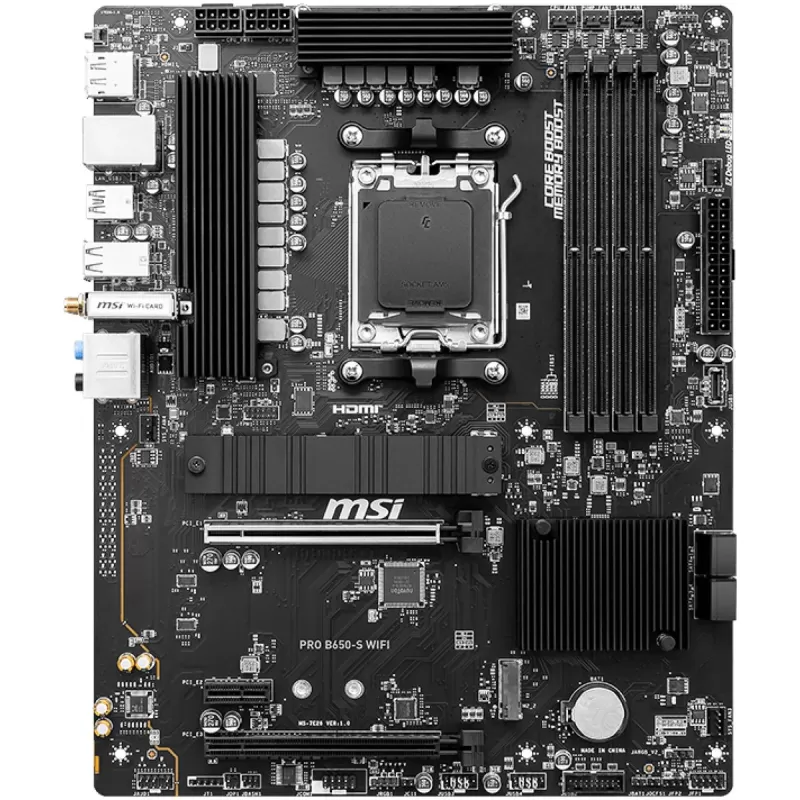

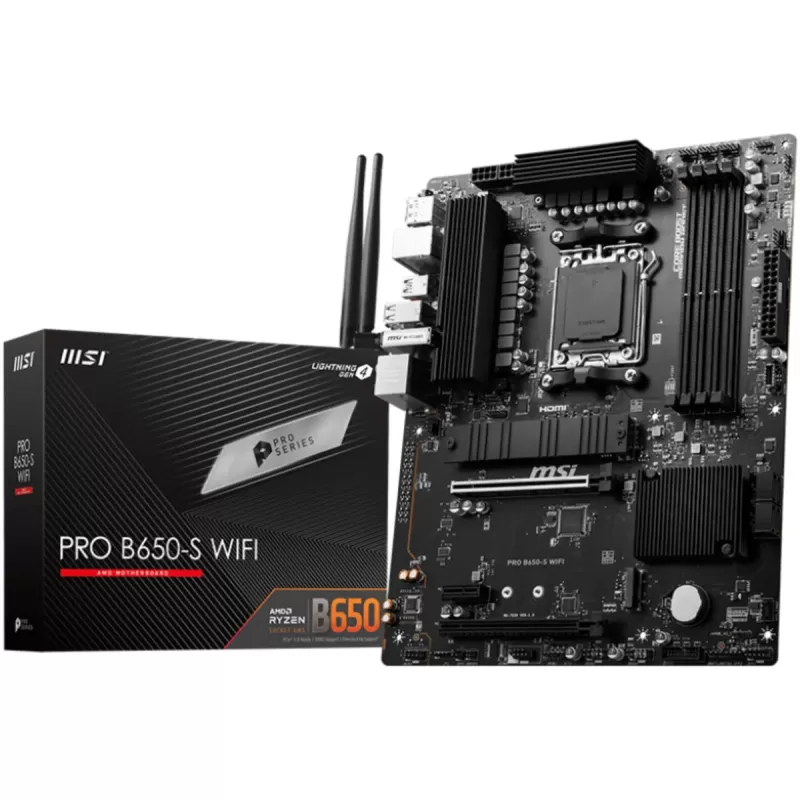

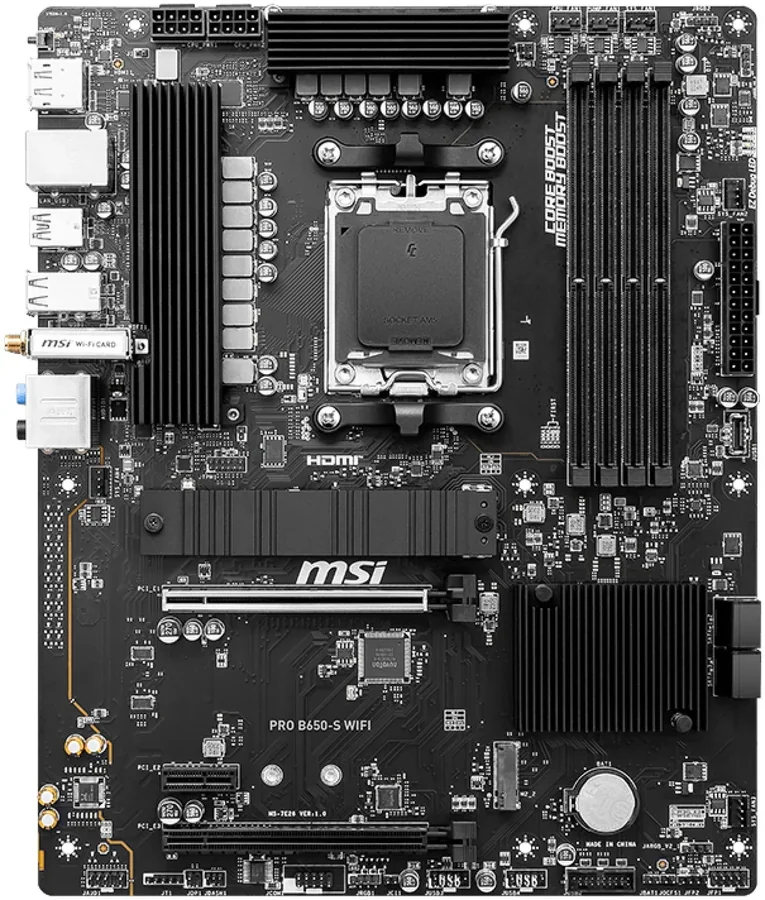

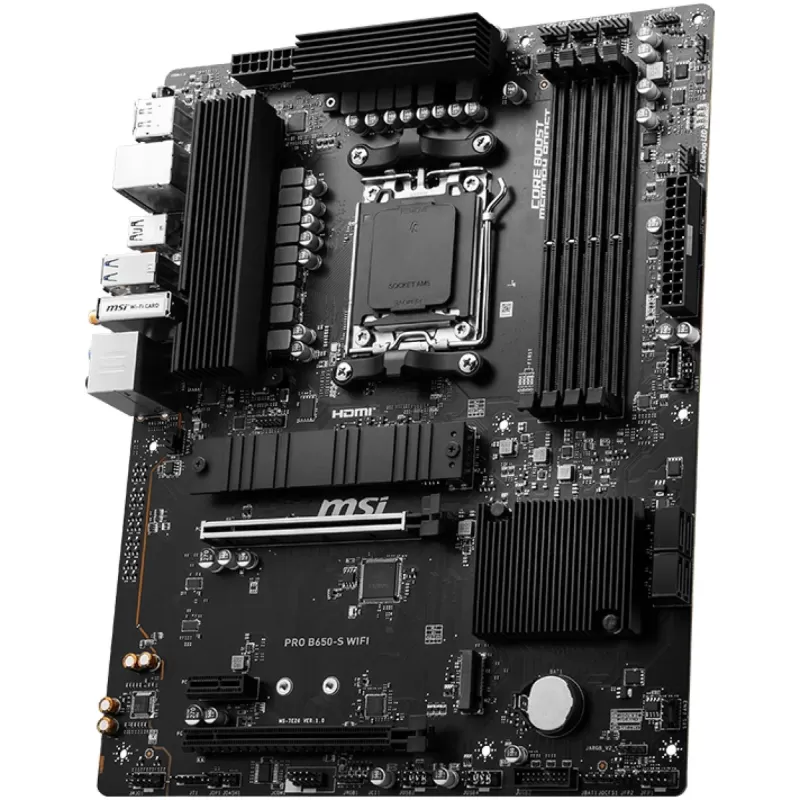

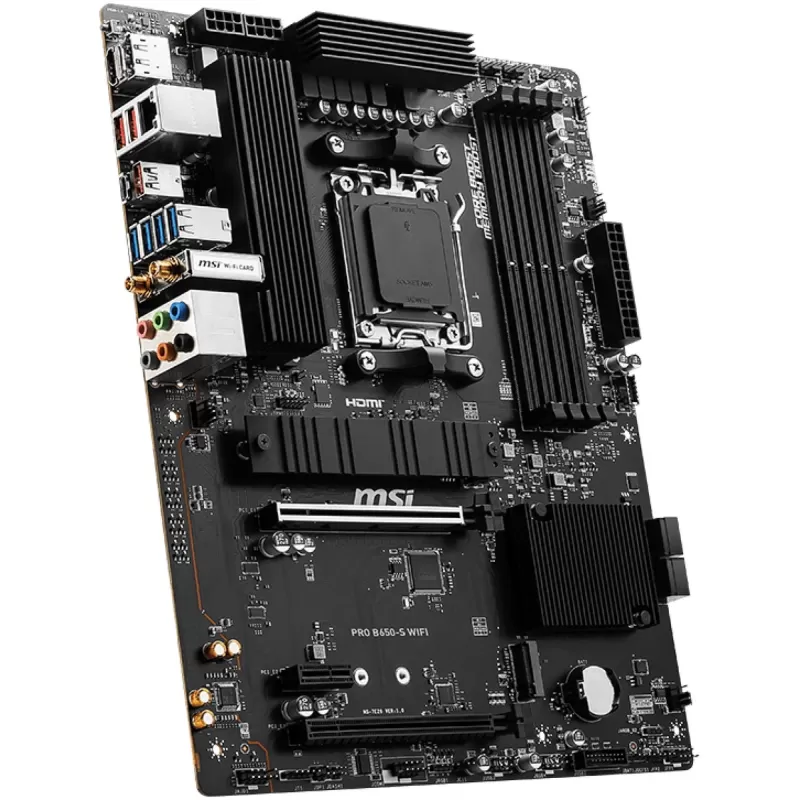

MSI PRO B650-S WIFI AM5 ATX Motherboard

The MSI PRO B650-S WIFI is a PRO Series ATX motherboard for socket AM5 and AMD Ryzen 9000, 8000 and 7000 Series processors. Built on the AMD B650 chipset, it offers four DDR5 slots with support for up to 256GB, two PCIe 4.0 x4 M.2 slots and four SATA ports.

Connectivity includes onboard 2.5G LAN, Wi-Fi 6E and Bluetooth 5.3, a rear 20Gbps USB-C port and an internal header for a 10Gbps front USB-C port. A 12+2+1 power design with dual 8-pin CPU connectors, a 6-layer PCB and M.2 Shield Frozr cooling make it suitable even for the most powerful processors in the lineup.

Key features

• AM5 socket for Ryzen - Supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors. With a processor that has integrated graphics, you can connect a display directly to the rear HDMI 2.1 and DisplayPort 1.4 outputs.
• Fast DDR5 memory - Four dual-channel DDR5 slots, up to 256GB and speeds of up to 7200+MHz when overclocked, with AMD EXPO profiles and MSI Memory Boost.
• Enhanced power design - A 12+2+1 digital power design with Duet Rail P-PAK components, dual 8-pin CPU power connectors and Core Boost deliver stable power even to high core count processors.
• Cooling and build quality - 7W/mK thermal pads on the MOSFETs, an M.2 Shield Frozr heatsink on the primary M.2 slot, a 6-layer PCB with 2oz thickened copper and a steel-reinforced primary PCIe slot.

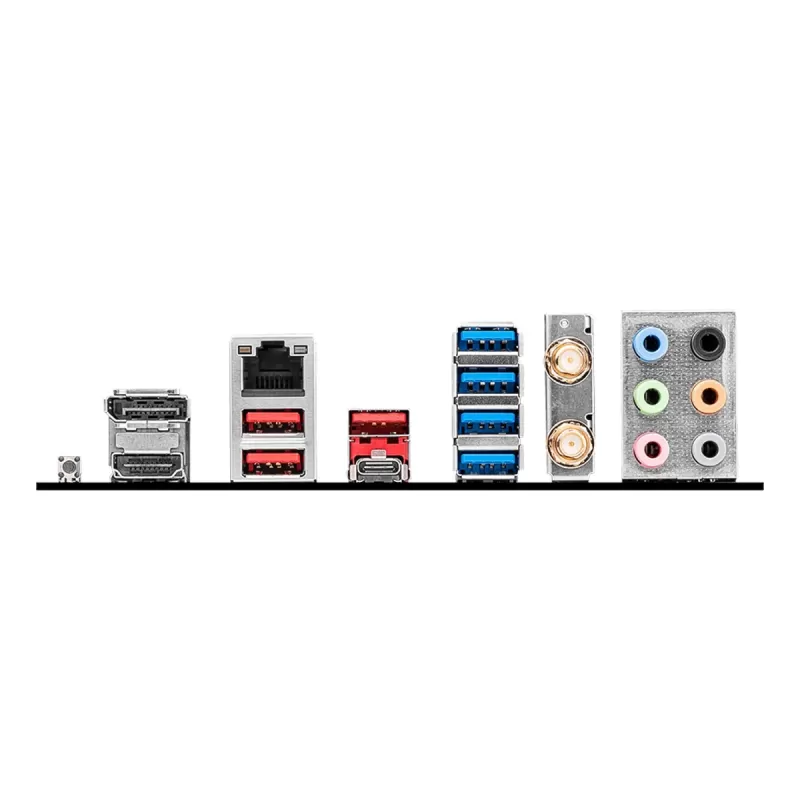

• Fast storage and USB - Two PCIe 4.0 x4 M.2 slots (one supports 22110 drives), four SATA 6Gb/s ports with RAID 0/1, a 20Gbps USB-C port and three 10Gbps USB-A ports on the rear panel.
• Networking, wireless and audio - Realtek 2.5G LAN, a pre-installed Wi-Fi 6E module with Bluetooth 5.3 and 7.1-channel audio with the Realtek ALC897 codec. ARGB and RGB headers, a pump header and four system fan headers are also on board.

Specifications

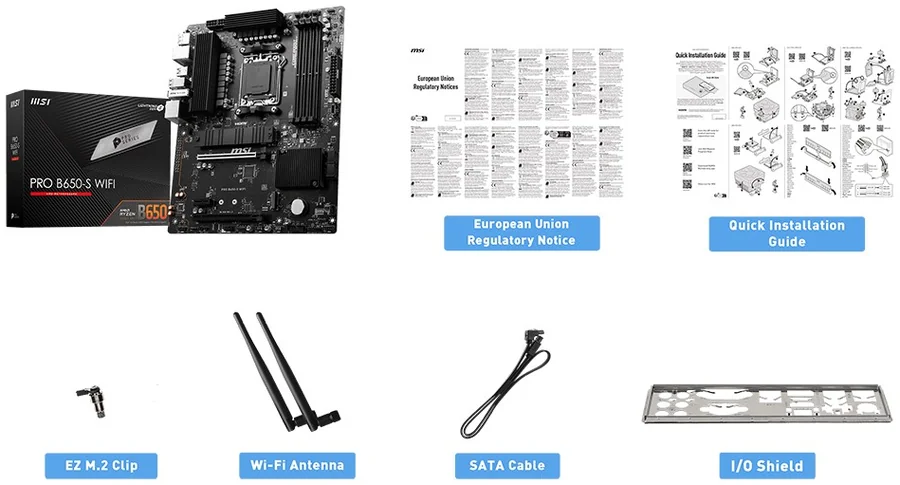

In the box

• MSI PRO B650-S WIFI motherboard
• Wi-Fi antenna
• SATA cable
• EZ M.2 Clip
• I/O shield
• Quick installation guide
• Regulatory notice
