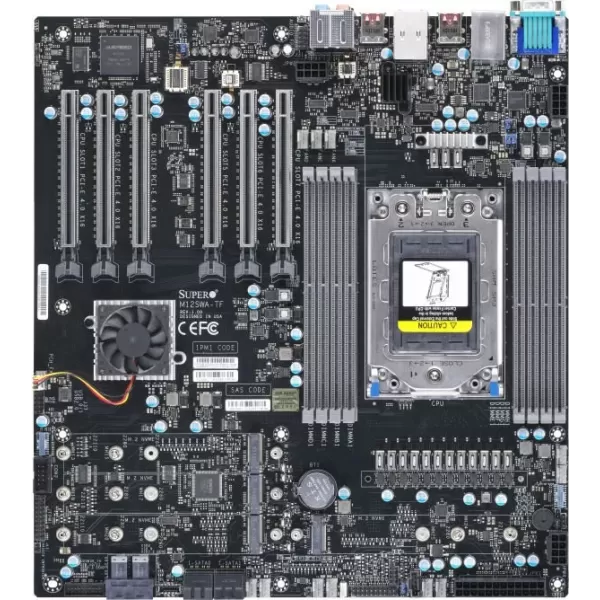

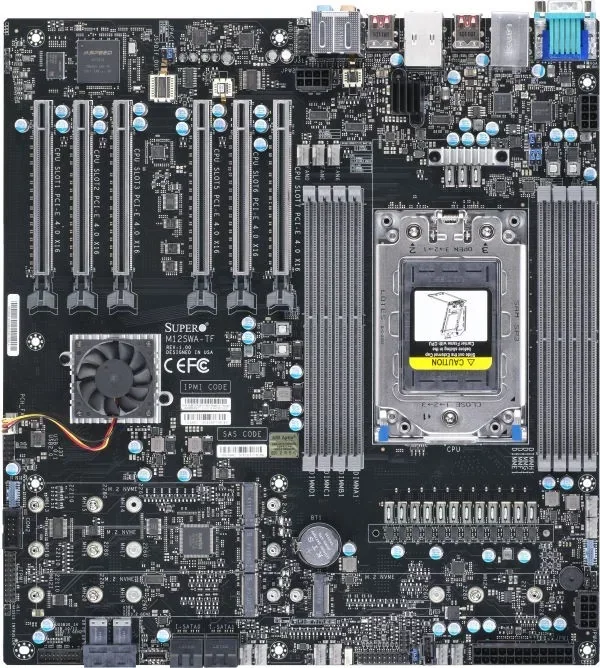

SuperMicro M12SWA-TF Motherboard

The SuperMicro M12SWA-TF is a professional workstation motherboard built on the AMD WRX80 chipset for an AMD Ryzen Threadripper PRO 5000WX or 3000WX processor with up to 64 cores and up to 280W TDP. It suits multi-GPU and accelerator work, rendering, engineering, AI and virtualization.

The board offers eight DDR4-3200 slots in eight channels with ECC support and up to 2TB of memory, six PCIe 4.0 x16 slots, four M.2 PCIe 4.0 x4 slots and two U.2 sockets. Networking includes a 10GBase-T port and a GbE port, and the ASPEED AST2600 BMC provides remote management via IPMI.

Key features

• Threadripper PRO up to 64 cores - The sWRX8 socket supports AMD Ryzen Threadripper PRO 5000WX/3000WX processors with up to 64 cores and up to 280W TDP.
• Eight-channel memory - Eight DDR4 slots up to 3200MHz: up to 2TB RDIMM or 256GB UDIMM, with ECC, RDIMM, LRDIMM and 3DS RDIMM support.
• Six PCIe 4.0 x16 slots - Room for multiple graphics cards, accelerators, network cards or storage controllers at PCIe 4.0 speed.
• Fast NVMe storage - Four M.2 PCIe 4.0 x4 slots (2280/22110) with software RAID 0/1/5/10, two U.2 sockets and four SATA 6Gb/s ports.
• IPMI remote management - The ASPEED AST2600 BMC with a dedicated VGA port and KVM lets you manage the system remotely, including voltage, temperature and fan monitoring.
• Full connectivity - 10GBase-T and GbE LAN, a 20Gbps USB-C port, more USB 3.2 ports, 7.1 audio, a COM port and up to 10 4-pin fan headers.

Specifications

In the box

• SuperMicro M12SWA-TF motherboard
• 2 SATA cables
• I/O shield
• PCIe 8-pin to CPU 8-pin power adapter
• M.2 screw and standoff kit
