In the importer's stock
| Specification | |||||||||||||||||||||||||||||||||||||||||

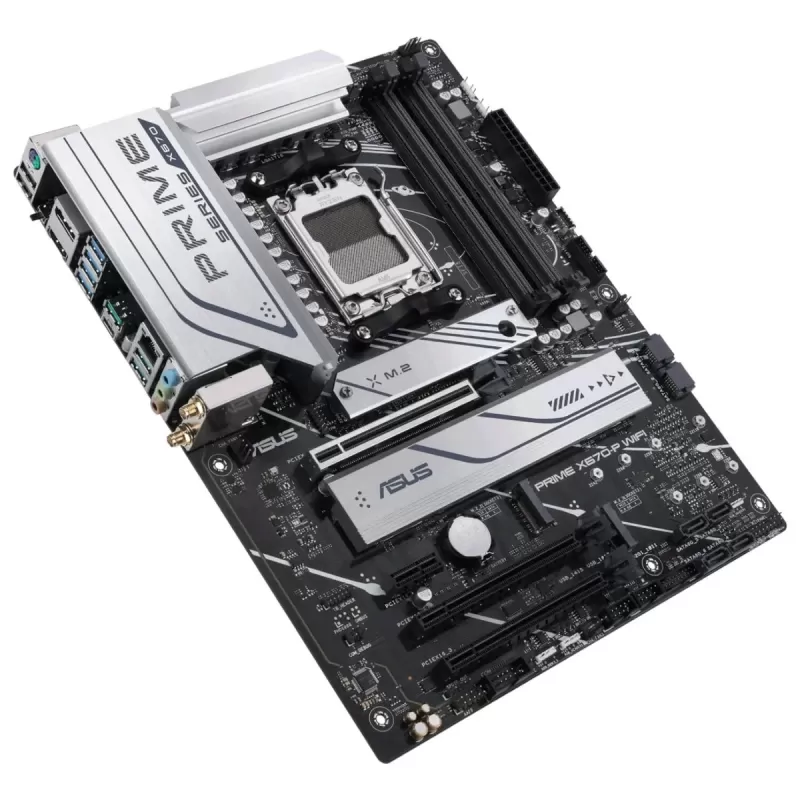

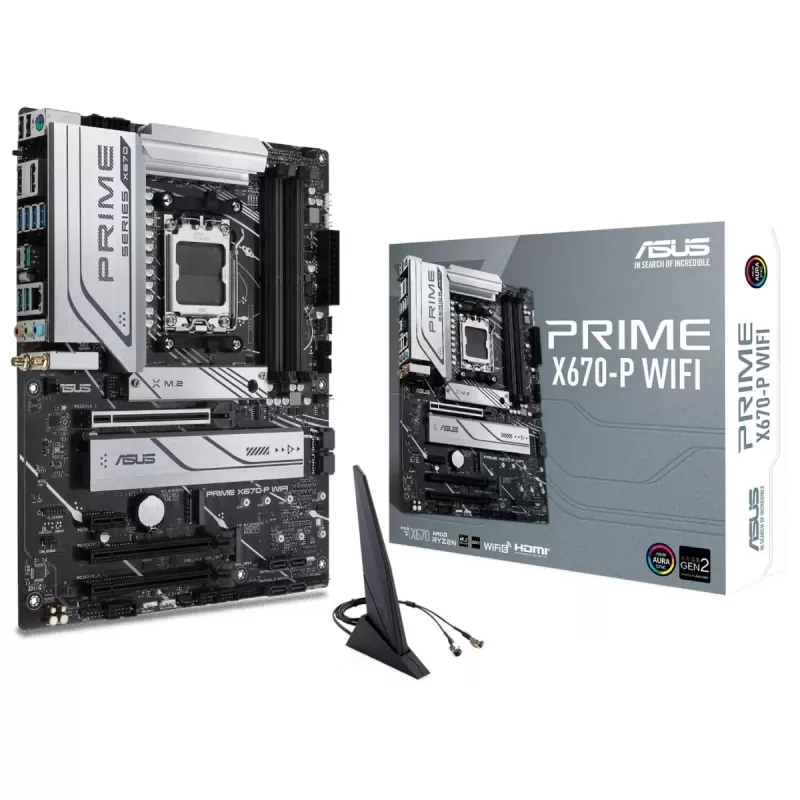

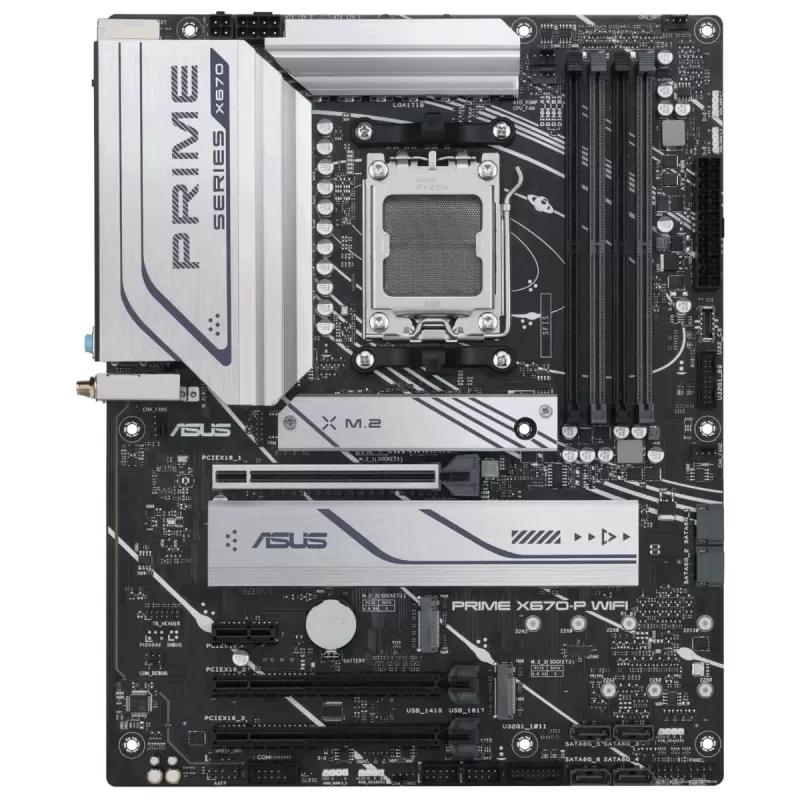

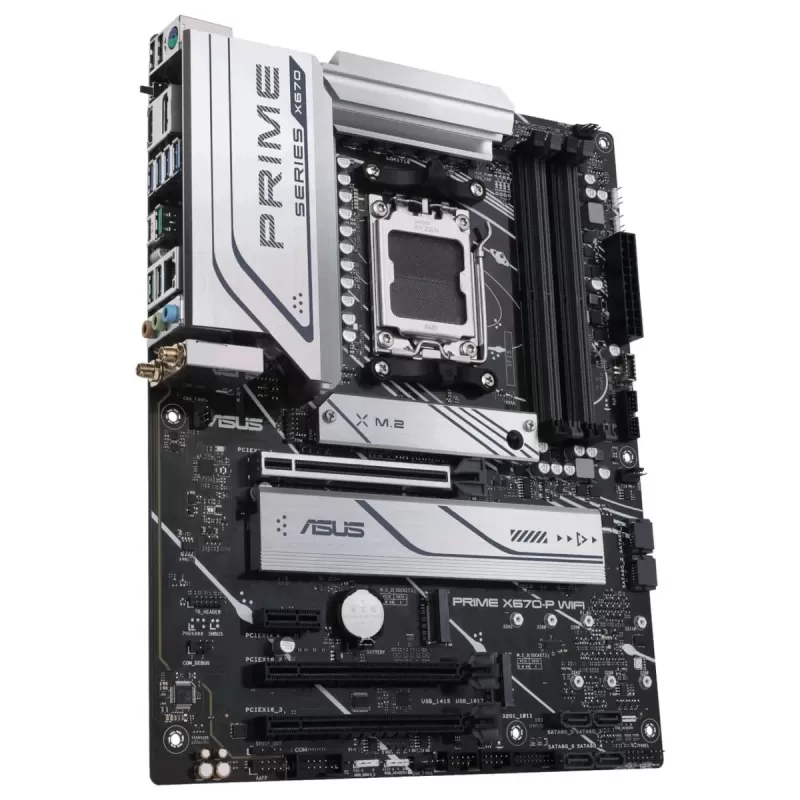

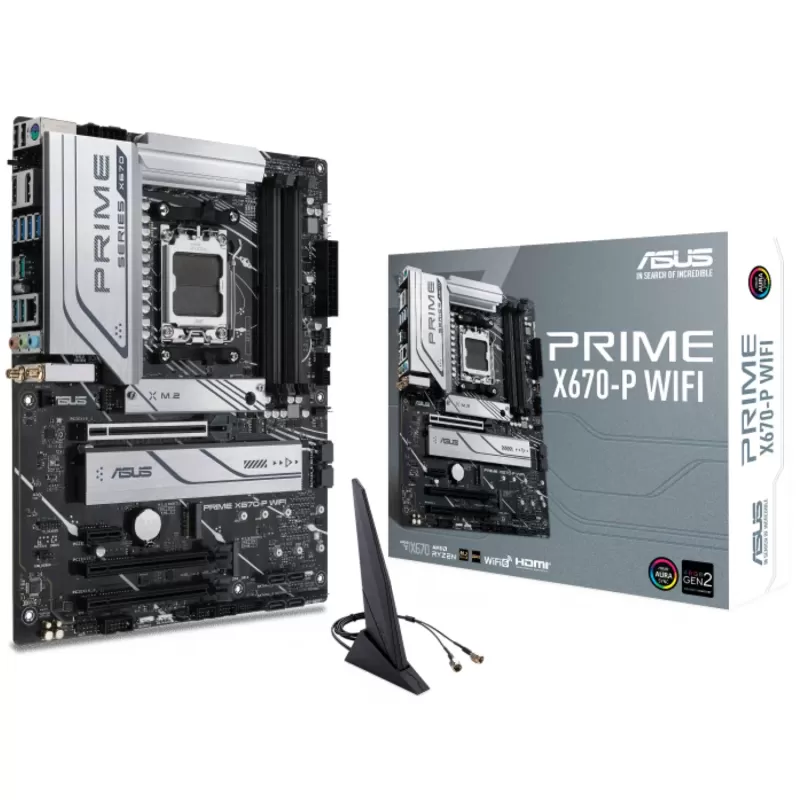

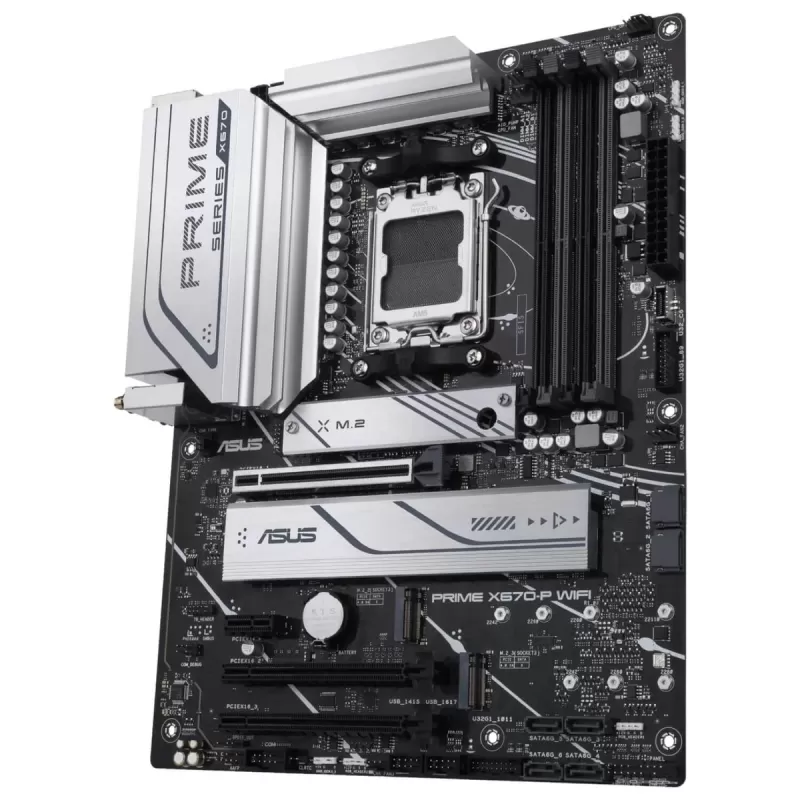

| Revew | Asus PRIME X670-P WIFI MotherboardThe Asus PRIME X670-P WIFI is an ATX motherboard for the AM5 socket, built for AMD Ryzen 9000, 8000 and 7000 series processors, including CPUs of up to 170W. It is based on the AMD X670 chipset and supports DDR5 memory in four slots, up to 256GB and up to 7600 MT/s (OC). According to the manufacturer, the board has 12+2+1 power stages rated at 60A with enlarged heatsinks, three M.2 slots (one PCIe 5.0 x4), six SATA ports, Realtek 2.5Gb LAN, Wi-Fi 6 and a 20Gb/s rear USB-C port. It suits home, office or gaming PCs that need plenty of storage and expansion connections.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | 90MB1BV0-M0EAY0, 90MB1BV0-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | PRIME X670-P WIFI | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4711081884583 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | ||||||||||||||||||||||||||||||||||||||||

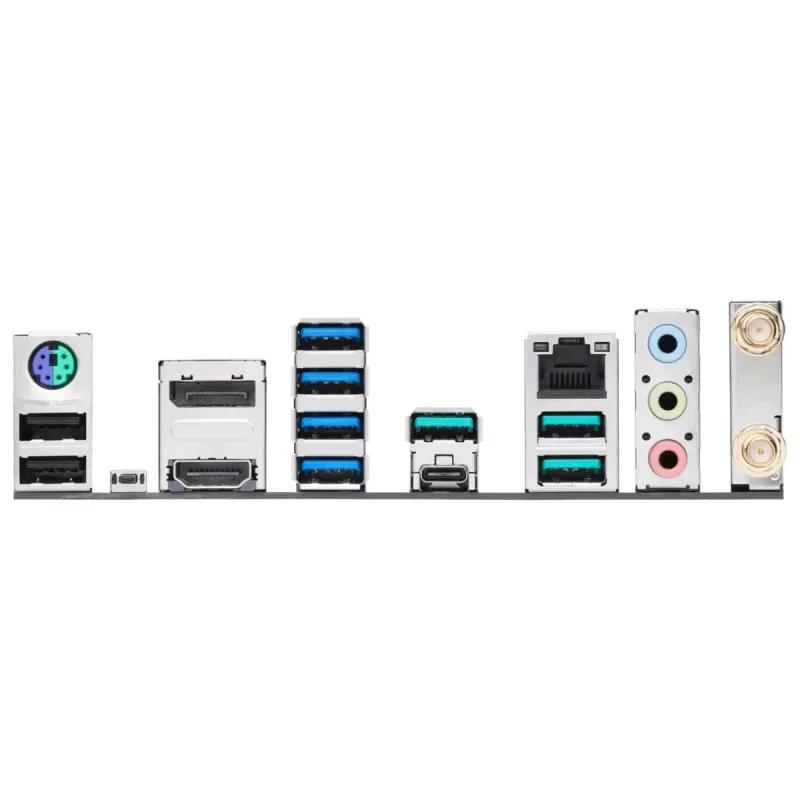

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI®&port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™&button 1 x PS/2 Keyboard/Mouse combo port | ||||||||||||||||||||||||||||||||||||||||
| Chipset | X670 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | ATX | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt™&(USB4®) header | ||||||||||||||||||||||||||||||||||||||||
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for moreinformation refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 DIMM | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 128GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM5 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* AMD Ryzen™&7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports** * AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | 1 x Realtek 2.5Gb Ethernet | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 | ||||||||||||||||||||||||||||||||||||||||
| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation 1 x User guide | ||||||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Asus PRIME X670-P WIFI DDR5 DIMM AM5 | ||||||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~50214~, NEW, OC: 25459, EASX: 90MB1BV0-M0EAY0, VSL: 90MB1BV0-M0EAY0, CD: 90MB1BV0-M0EAY0, MPN: 90MB1BV0-M0EAY0, MPN2: 90MB1BV0-M0EAY0, EAN: 4711081884583 | ||||||||||||||||||||||||||||||||||||||||
