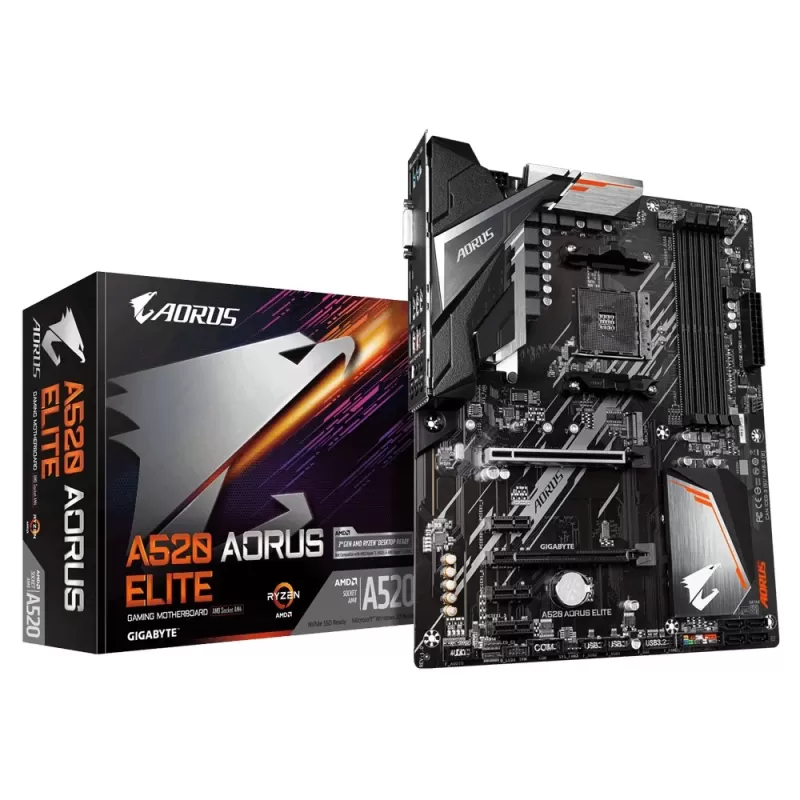

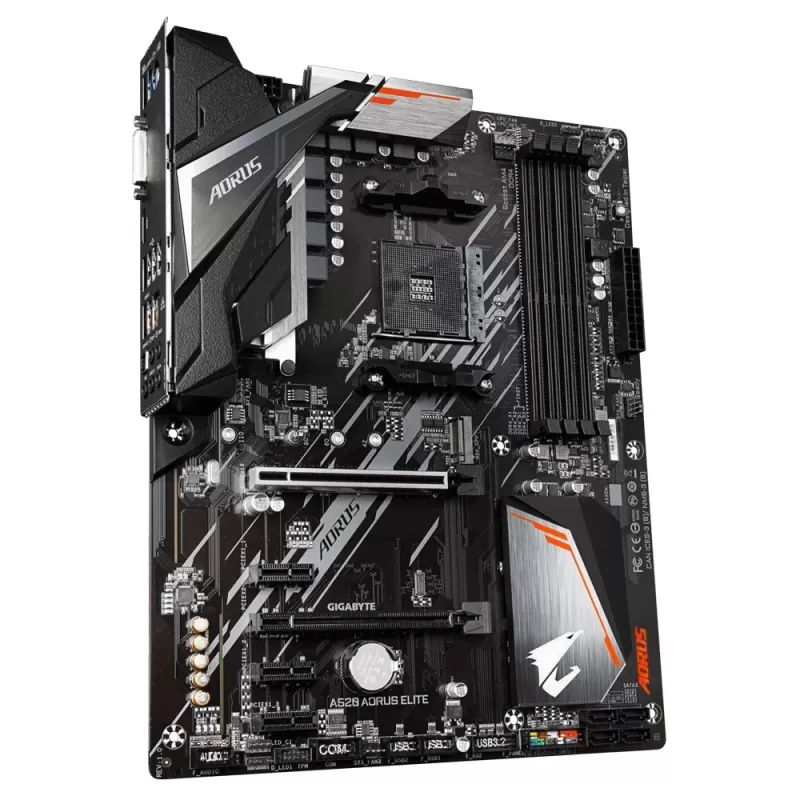

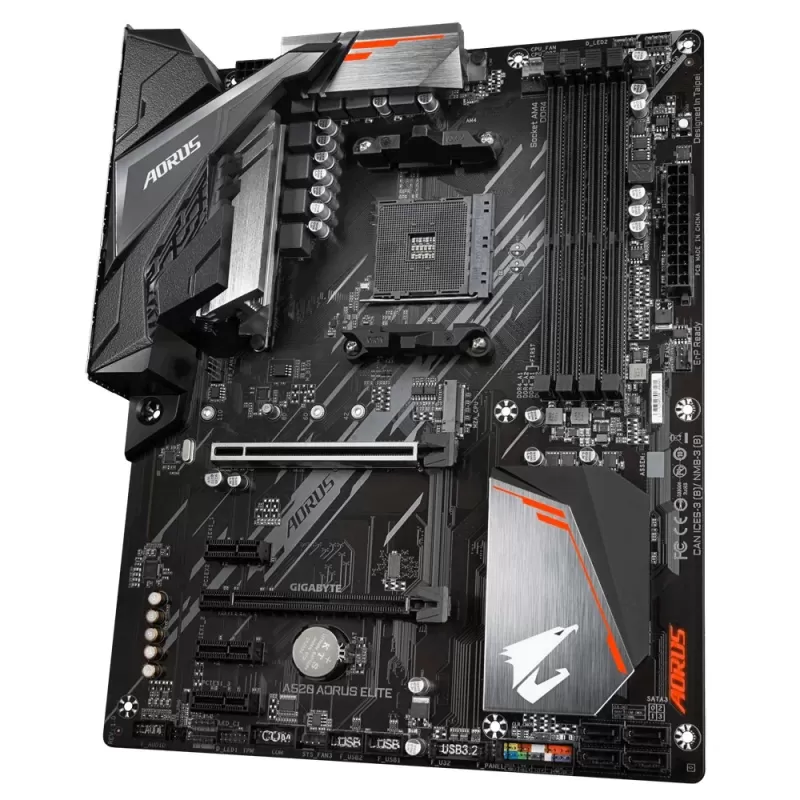

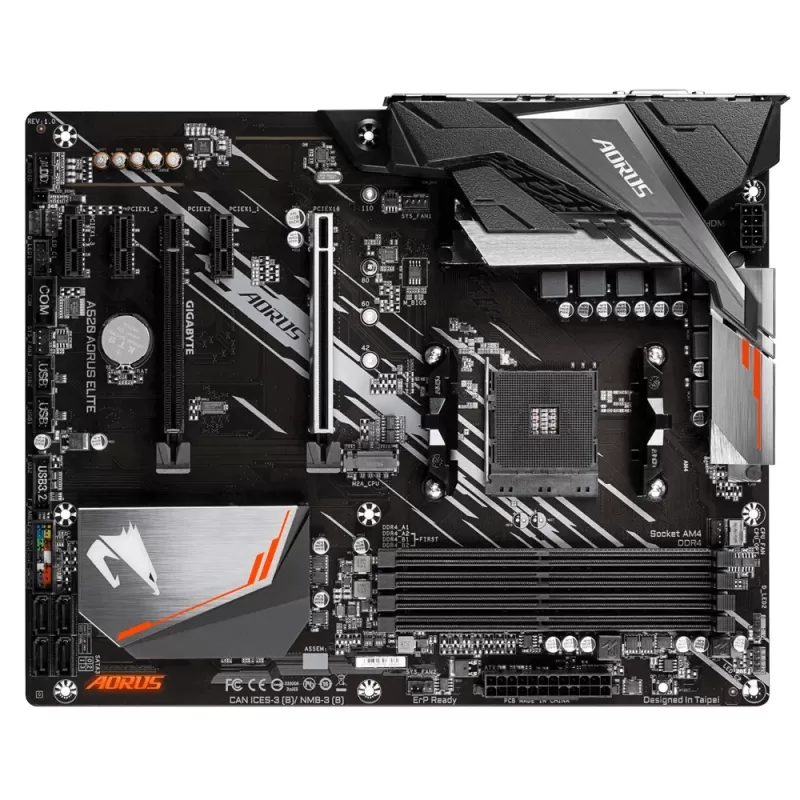

Gigabyte A520 AORUS ELITE Motherboard

The Gigabyte A520 AORUS ELITE is an AORUS series ATX motherboard built on the AMD A520 chipset for AMD Ryzen 5000, 5000 G, 4000 G, 3000 and 3000 G Series processors in the AM4 socket. It brings AORUS styling and gaming features at an accessible price and suits a gaming or home PC in a full-size case.

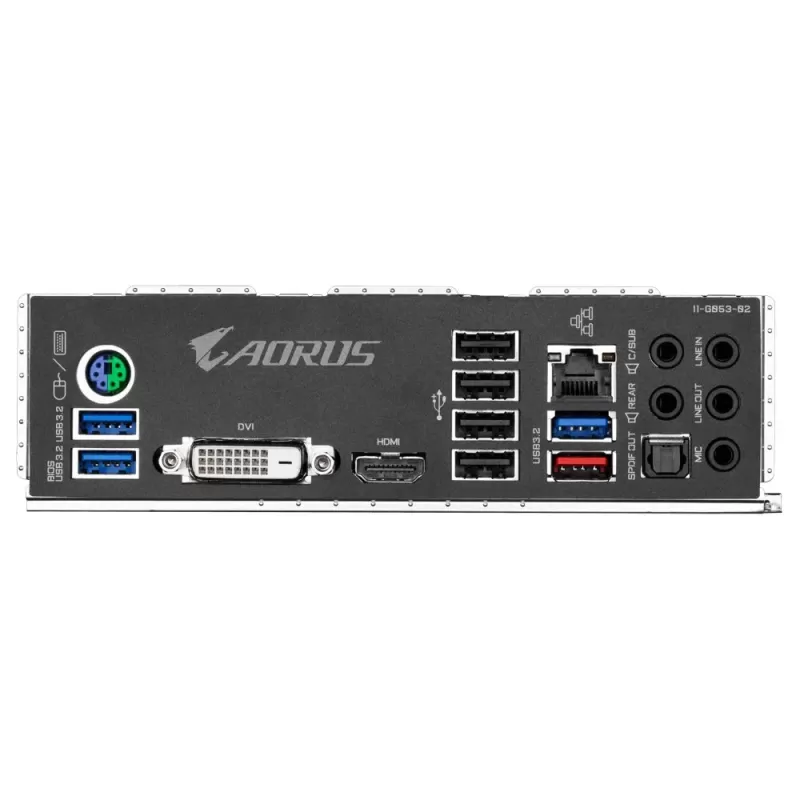

The board has a 5+3 phase pure digital VRM, four DDR4 slots for up to 128GB and up to 4733MT/s (OC), a PCIe 3.0 x16 slot reinforced with metal shielding, an M.2 slot for NVMe and SATA drives and four SATA ports. The rear panel, with a pre-installed I/O shield, offers HDMI and DVI-D outputs, a USB 3.2 Gen 2 port, Gigabit LAN, five audio jacks and optical S/PDIF out.

Key features

• 5+3 phase power - A pure digital VRM with low RDS(on) MOSFETs and a solid-pin power connector delivers precise, stable power to Ryzen processors.
• NVMe and SATA M.2 - The CPU M.2 slot takes 2242 to 22110 drives in PCIe 3.0 x4 or SATA mode, alongside four SATA 6Gb/s ports with RAID 0, 1 and 10.
• Metal-shielded PCIe slot - An Ultra Durable PCIe 3.0 x16 slot with metal shielding for the graphics card, plus a PCIe 3.0 x16-size slot running at x2 and three PCIe 3.0 x1 slots.
• Audio and networking - Realtek HD audio with high-end audio capacitors and Audio Noise Guard, five audio jacks and optical S/PDIF out, plus Realtek Gigabit LAN.
• Smart Fan 5 and RGB FUSION 2.0 - Five fan headers of up to 24W each with multiple temperature sensors and FAN STOP, plus two ARGB and two RGB headers for LED strips.
• Easy assembly and updates - The pre-installed I/O shield speeds up the build, and the Q-Flash Plus button updates the BIOS without a CPU, memory or graphics card.
