In the importer's stock
| Specification | |||||||||||||||||||||||||||||||||||||||||

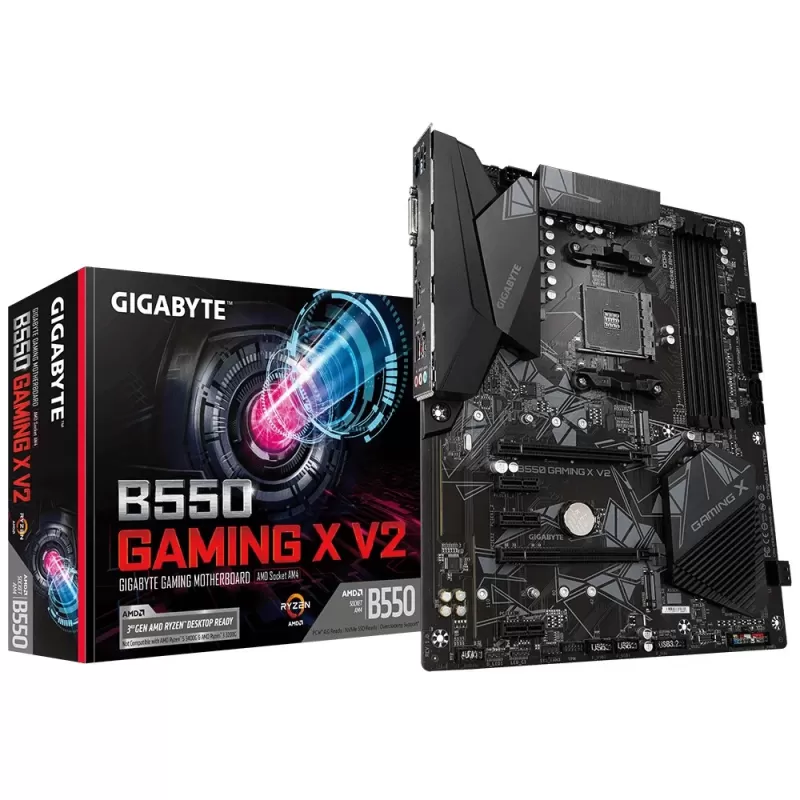

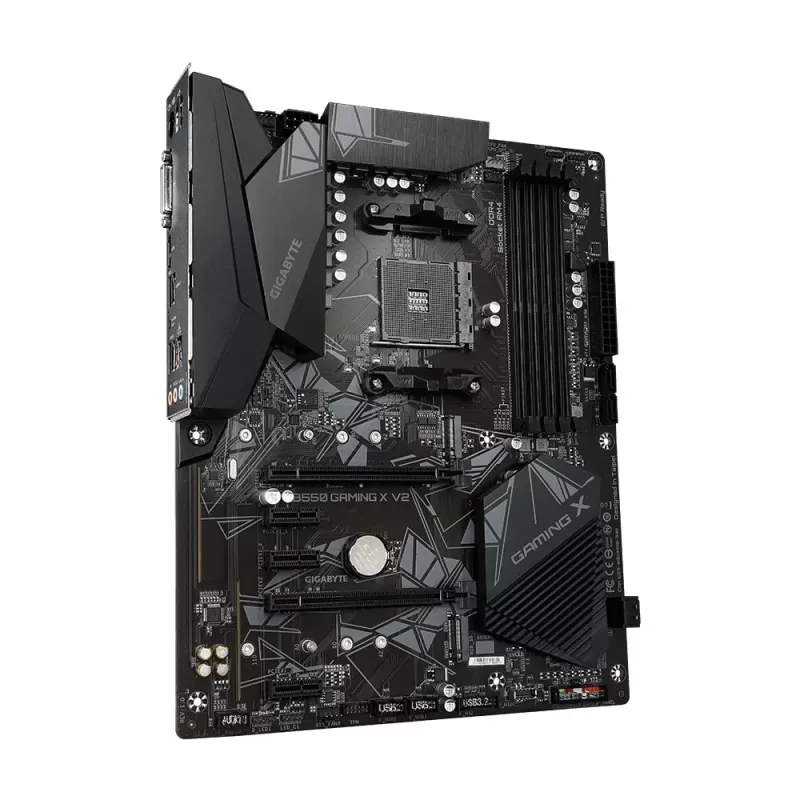

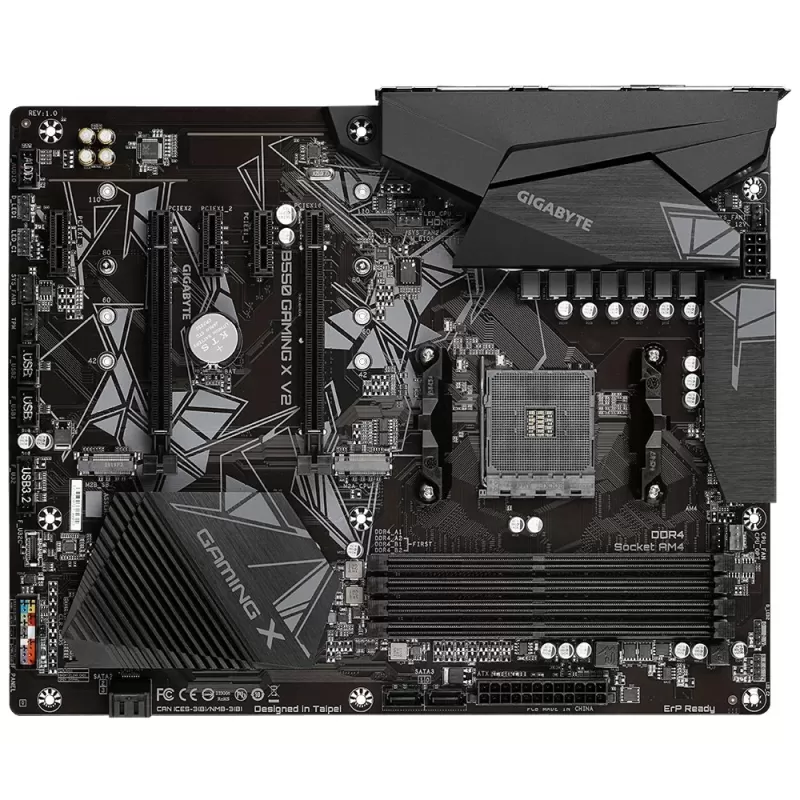

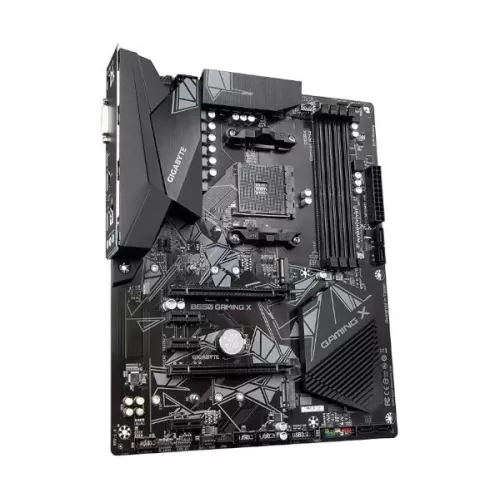

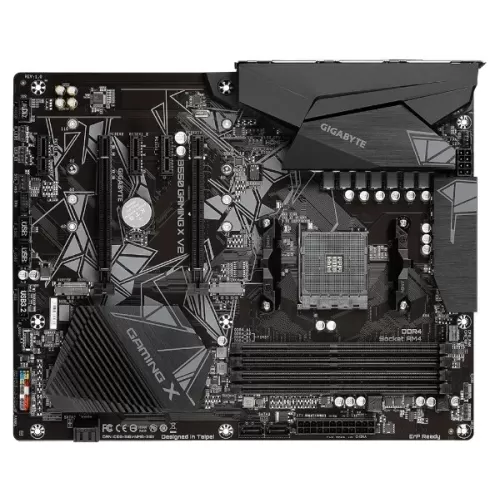

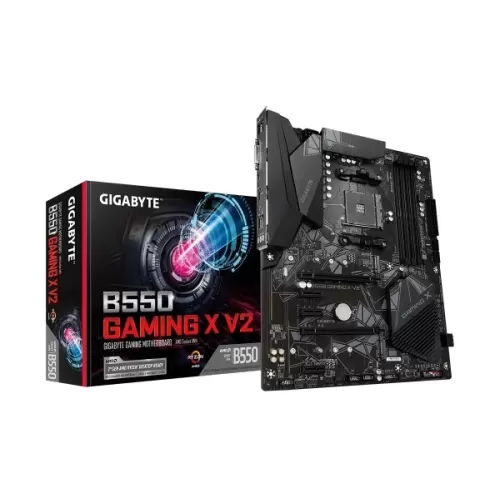

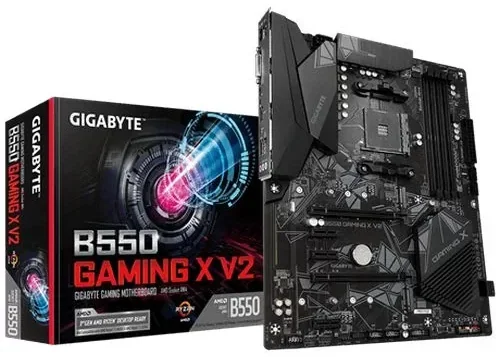

| Revew | Gigabyte B550 Gaming X V2 MotherboardThe Gigabyte B550 Gaming X V2 is a full-size ATX motherboard for socket AM4 based on the AMD B550 chipset. It supports AMD Ryzen 5000, 5000G, 4000G and 3000 series processors and suits a gaming or work PC with room for expansion cards. The board has four DDR4 slots for up to 128GB of memory, a PCIe 4.0 x16 slot for the graphics card plus four more expansion slots, two M.2 slots for NVMe drives, four SATA ports and Realtek GbE networking. The rear panel offers a USB 3.2 Gen 2 port, HDMI and DVI-D outputs and a Q-Flash Plus button.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | B550 GAMING X V2 | ||||||||||||||||||||||||||||||||||||||||
| Model | B550 Gaming X V2 | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4719331810702 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Gigabyte | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. | ||||||||||||||||||||||||||||||||||||||||

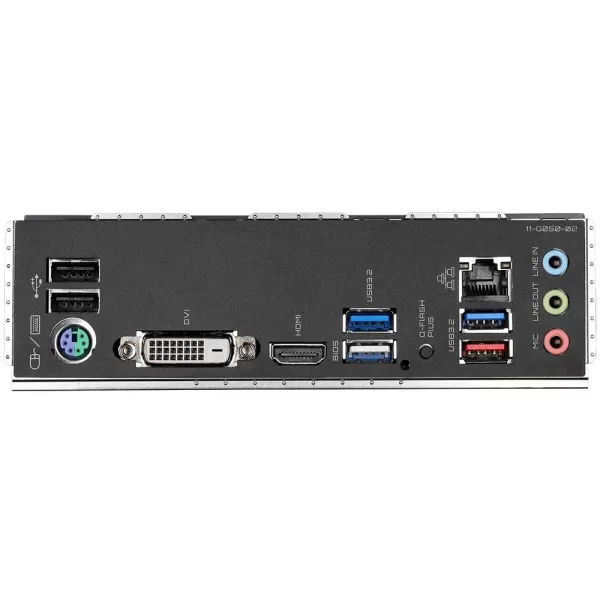

| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B550 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | ATX | ||||||||||||||||||||||||||||||||||||||||
| importer | official | ||||||||||||||||||||||||||||||||||||||||
| Interface | DDR4: 4, SATA3: 4 | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper | ||||||||||||||||||||||||||||||||||||||||
| Memory Frequency | 4733MHz | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR4 | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM4 | ||||||||||||||||||||||||||||||||||||||||
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | 1. Realtek GbE LAN chip (1000 Mbit/100 Mbit) | ||||||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Gigabyte B550 Gaming X V2 DDR4 AM4 | ||||||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~39277~, NEW, OC: 22244, ML: 95B55009, ML2: 95B55007, ML3: 95B55010, CD: GB550GAMINGXV2, MPN: B550 GAMING X V2, EAN: 4719331810702 | ||||||||||||||||||||||||||||||||||||||||
