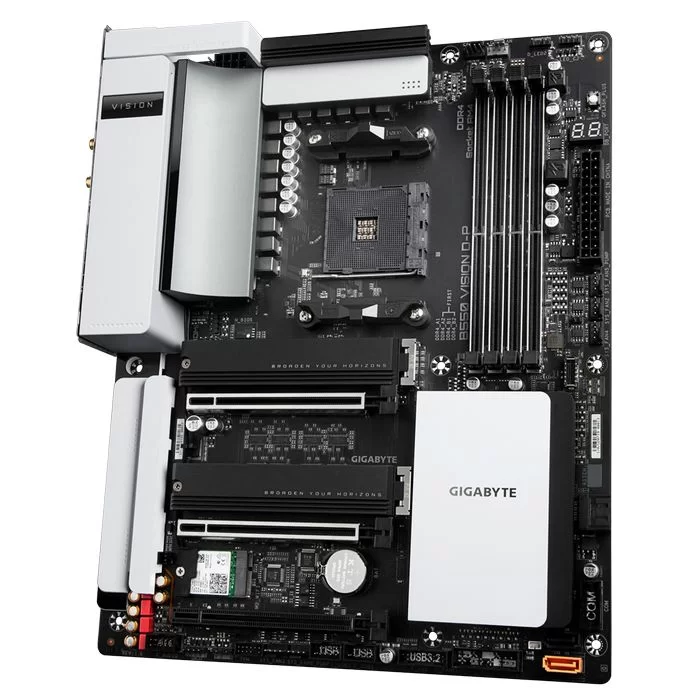

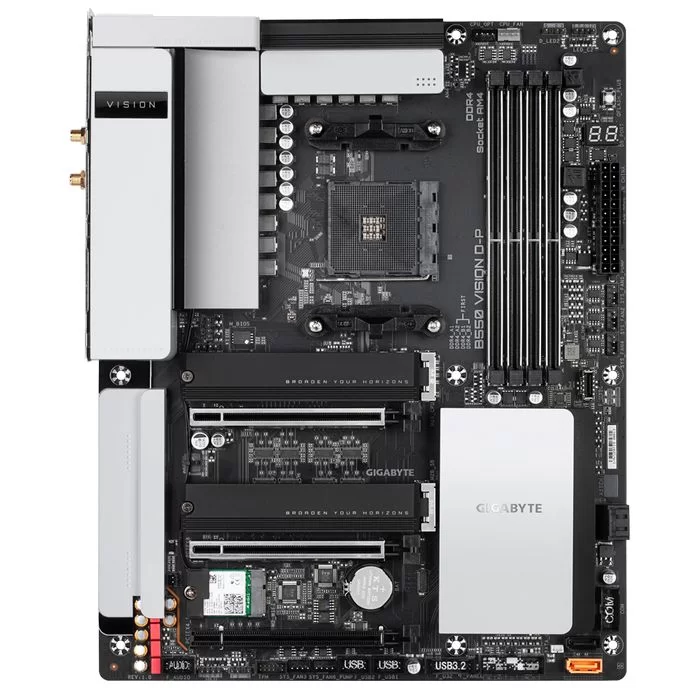

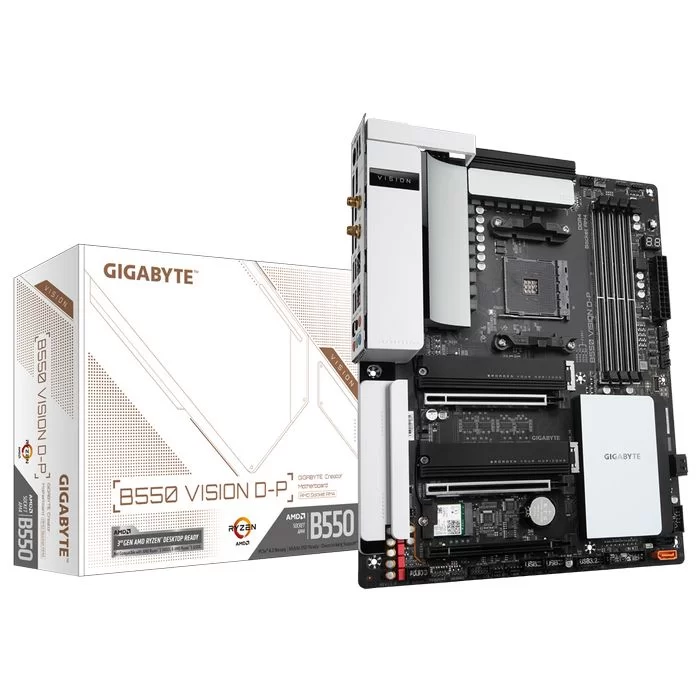

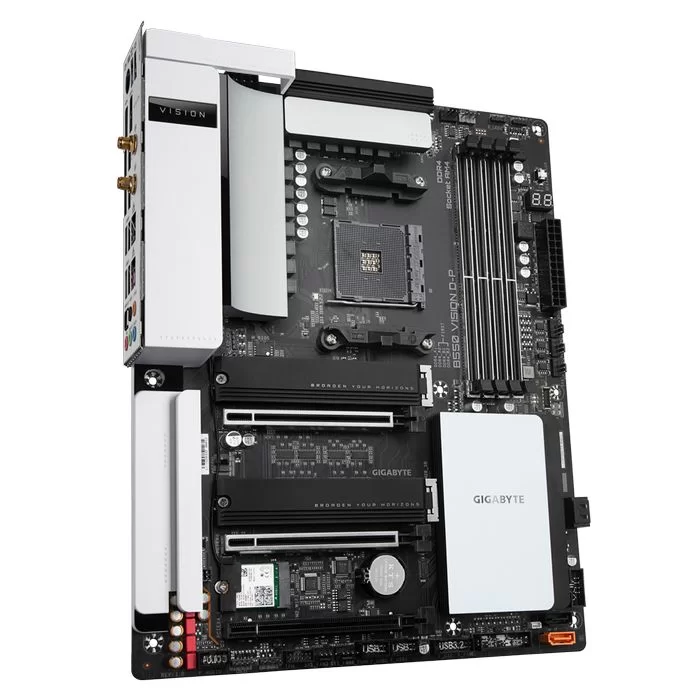

Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer

Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Out of stock
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer

* The picture is for illustration only

Short review: Gigabyte B550 VISION D-P - memory type DDR4, cpu socket AM4, chipset B550. Suited for building a PC or upgrading the platform., Manufacturer: Gigabyte, Memory Frequency: 5100MHz, Socket: AM4, Chipset: B550, Memory Type: DDR4, Condition: New, SKU: 41303
Motherboard Gigabyte B550 VISION D-P DDR4 AM4 - official importer

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: Out of stock
    • Print:
    • Brand: Gigabyte
    • SKU: 41303
    • MPN: B550 VISION D-P
    Gigabyte Gigabyte
    Out of stock
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

    Gigabyte B550 VISION D-P

    Gigabyte B550 VISION D-P - memory type DDR4, cpu socket AM4, chipset B550. Suited for building a PC or upgrading the platform.

    The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

    Key specifications

    • Memory type: DDR4
    • CPU socket: AM4
    • Chipset: B550

    What it is for

    This product is intended for building a PC or upgrading the platform.

    Product identification

    Manufacturer part number: B550 VISION D-P. Use it to confirm that accessories and spare parts match.

    Review
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberB550 VISION D-P
    ModelB550 VISION D-P
    ConditionNew
    ManufacturerGigabyte
    1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen 5000 series processors:
      Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3. 3rd Gen AMD Ryzen Processors:
      Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. 3rd Gen AMD Ryzen with Radeon Graphics processors:
      Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    Audio
  • Realtek ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  • Support for DTS:X Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out

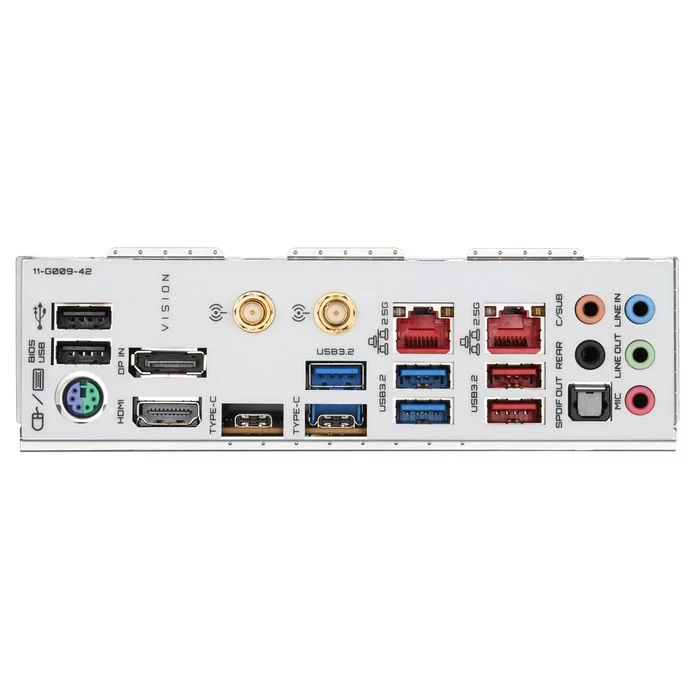

    • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DisplayPort In port
    3. 1 x HDMI port
    4. 2 x SMA antenna connectors (2T2R)
    5. 2 x USB 3.2 Gen 2 Type-A ports (red)
    6. 2 x Thunderbolt 3 connectors (USB Type-C port, with USB 3.2 Gen 2 support)
    7. 3 x USB 3.2 Gen 1 ports
    8. 2 x USB 2.0/1.1 ports
    9. 2 x RJ-45 ports
    10. 1 x optical S/PDIF Out connector
    11. 5 x audio jacks
    ChipsetB550
    Compatibility for computer assemblyAMD Motherboards
    ConfigurationATX
    importerofficial
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 4 x system fan headers
    6. 2 x system fan/water cooling pump headers
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 2 x M.2 Socket 3 connectors
    11. 4 x SATA 6Gb/s connectors
    12. 1 x SATA DOM power connector
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x USB Type-C port, with USB 3.2 Gen 1 support
    16. 1 x USB 3.2 Gen 1 header
    17. 2 x USB 2.0/1.1 headers
    18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    19. 1 x serial port header
    20. 1 x Clear CMOS jumper
    21. 2 x temperature sensor headers
    22. 1 x Q-Flash Plus button
    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    Memory Frequency5100MHz
    Memory TypeDDR4
    SocketAM4
    Storage

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs

    4 x SATA 6Gb/s connectors, integrated in the Chipset:

    1. Support for RAID 0, RAID 1, and RAID 10
    Wired Communication
    1. Intel 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
    2. Realtek 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2)
    Wireless network

    Intel Wi-Fi 6 AX200

    1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte B550 VISION D-P DDR4 AM4
    Matching SKUsID:~41303~, NEW, OC: 22699, ML: 95B55039, CD: GB550VISIONDP, MPN: B550 VISION D-P
