Motherboard Gigabyte B550M AORUS ELITE DDR4 DIMM AM4 - official importer

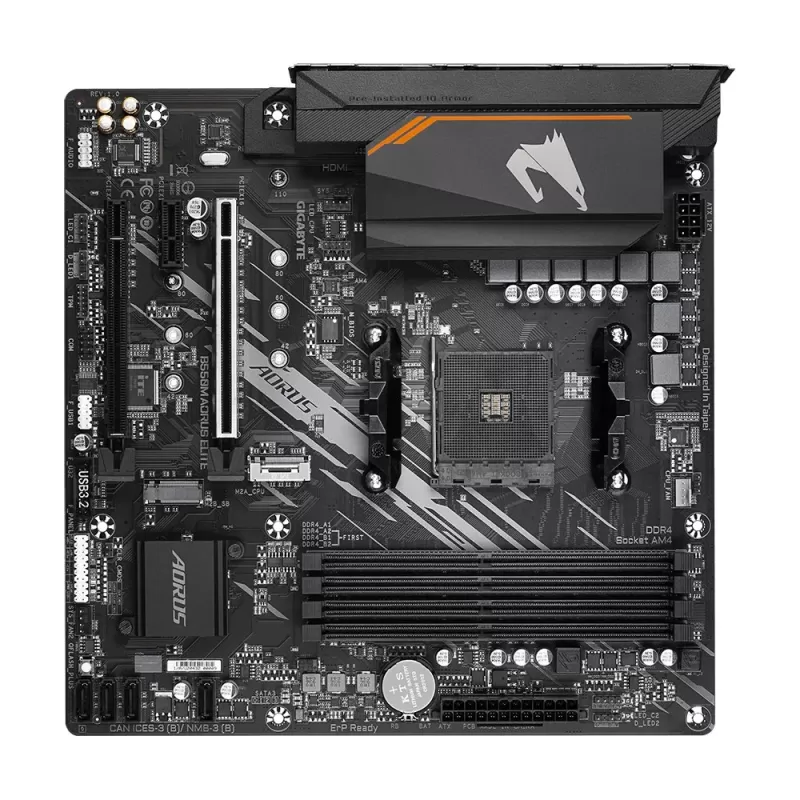

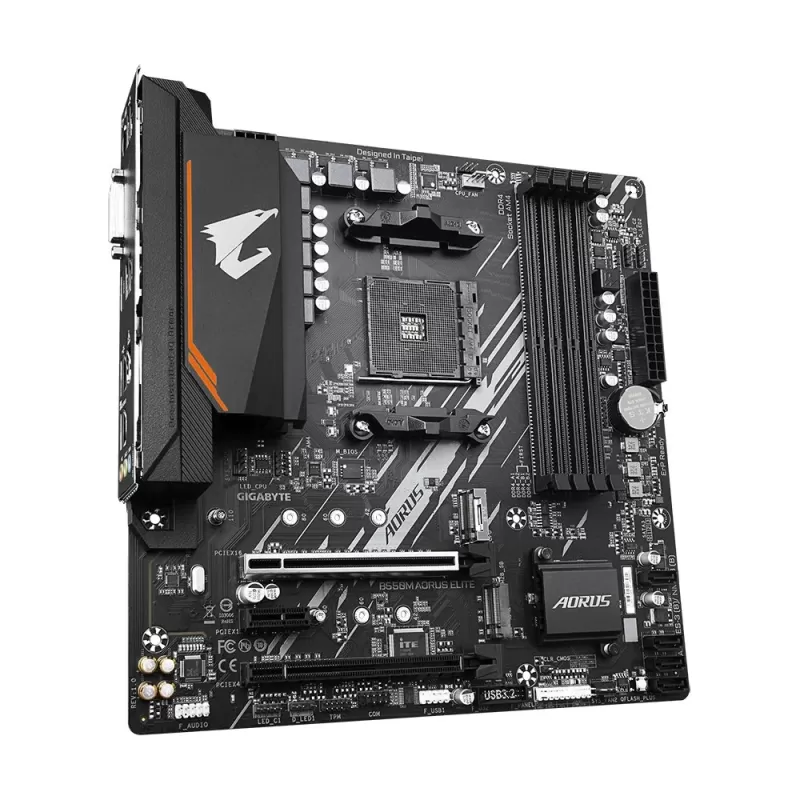

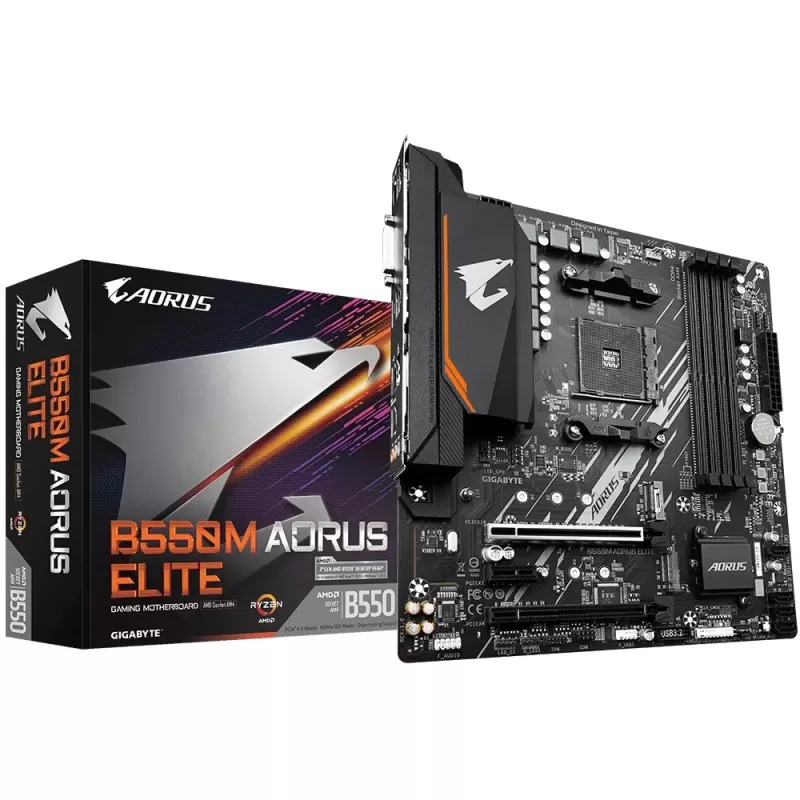

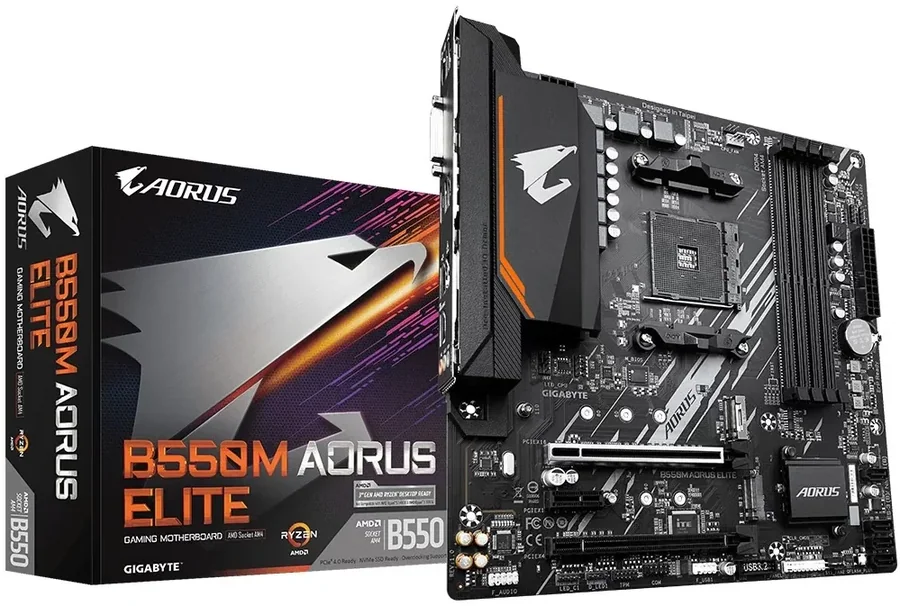

Gigabyte B550M AORUS ELITE Motherboard

The Gigabyte B550M AORUS ELITE is an AORUS series Micro ATX motherboard built on the AMD B550 chipset for AMD Ryzen 5000, 5000 G, 4000 G, 3000 and 3000 G Series processors in the AM4 socket. It suits gaming PCs and powerful home computers in a compact case.

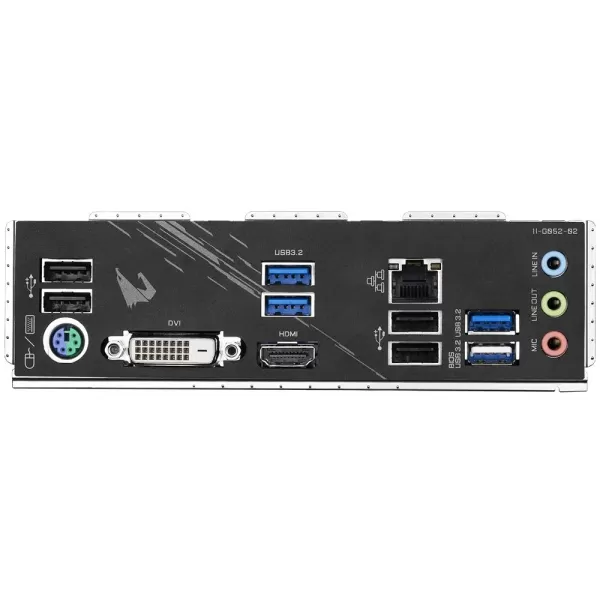

The board has a 5+3 phase pure digital VRM with an enlarged MOSFET heatsink, four DDR4 slots for up to 128GB and up to 4733MT/s (OC), a reinforced PCIe 4.0 x16 slot and two M.2 slots, one of them PCIe 4.0. The rear panel offers HDMI and DVI-D outputs, eight USB ports and Realtek Gigabit LAN, and the board adds RGB FUSION 2.0 lighting headers and Smart Fan 5.

Key features

• 5+3 phase power - A pure digital VRM with low RDS(on) MOSFETs, an enlarged MOSFET heatsink and a solid-pin CPU power connector keep multi-core Ryzen processors stable.
• Two M.2 slots - The first M.2 slot from the CPU takes drives up to 22110 in PCIe 4.0 x4 mode (PCIe 3.0 with G-series CPUs) or SATA, and the second slot from the chipset supports PCIe 3.0 x2 or SATA. There are also four SATA 6Gb/s ports with RAID 0, 1 and 10.
• Reinforced PCIe 4.0 slot - The Ultra Durable PCIe x16 slot from the CPU runs at PCIe 4.0 with Ryzen 5000 and 3000 processors, joined by a PCIe 3.0 x16-size slot running at x4 and a PCIe 3.0 x1 slot.
• Fast DDR4 memory - Four dual-channel DIMM slots take up to 128GB (32GB per DIMM) with XMP and speeds up to 4733MT/s (OC), plus ECC un-buffered module support depending on the CPU.
• Lighting and cooling - RGB FUSION 2.0 with two ARGB headers and RGB headers for LED strips, and Smart Fan 5 with multiple temperature sensors, hybrid fan headers and FAN STOP.
• Reliability and easy updates - High-end audio capacitors and Audio Noise Guard for clean sound, anti-sulfur resistors and a Q-Flash Plus button to update the BIOS without a CPU, memory or graphics card.

Specifications
