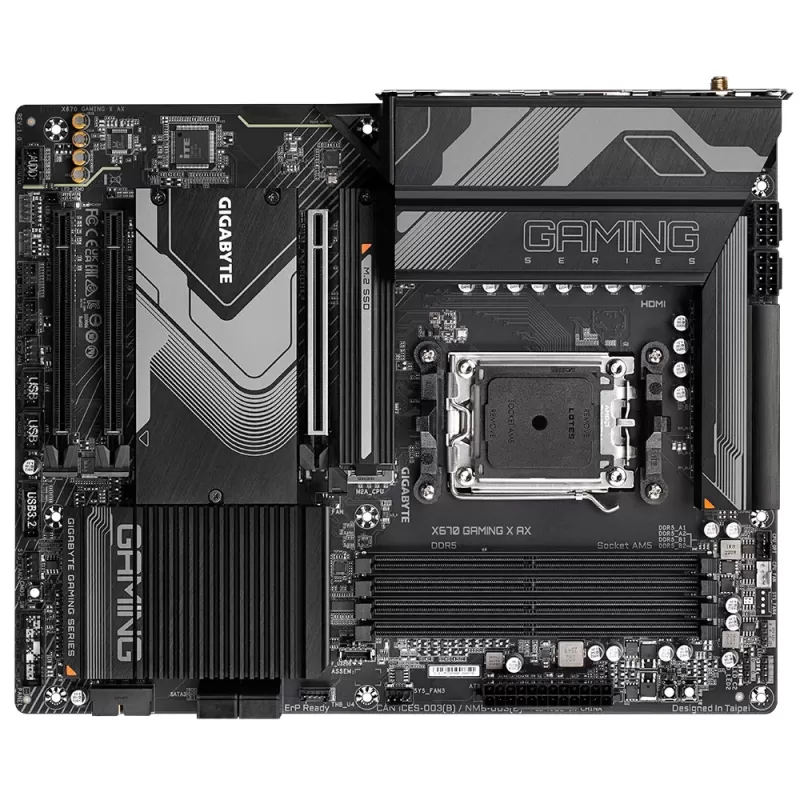

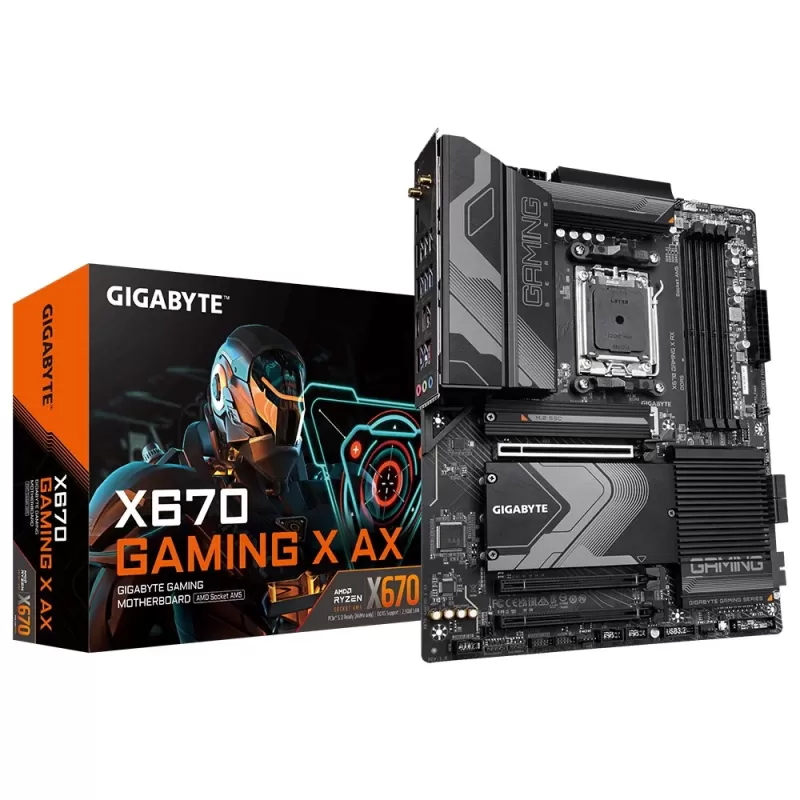

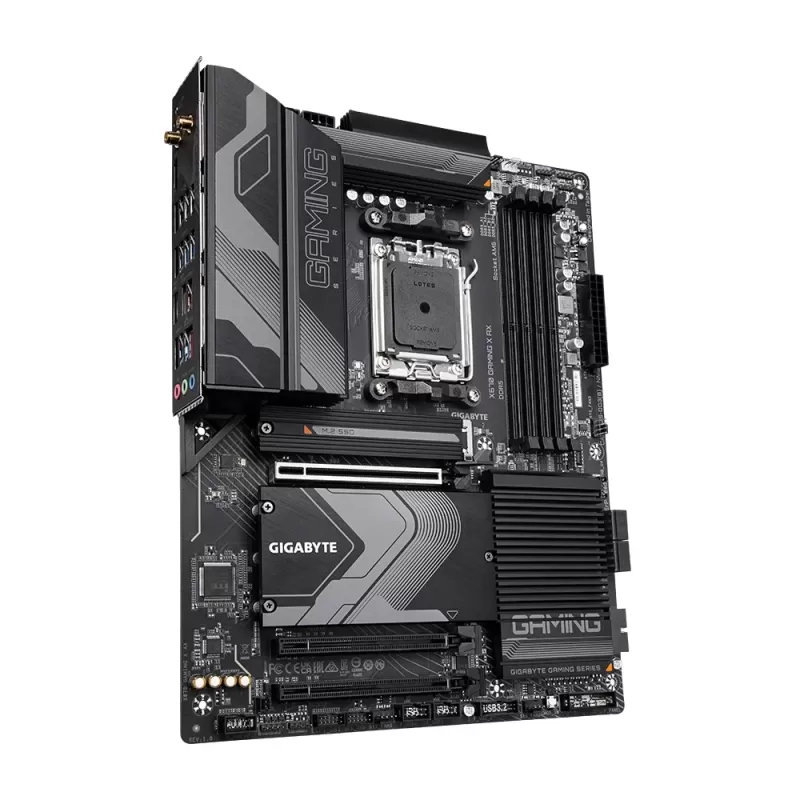

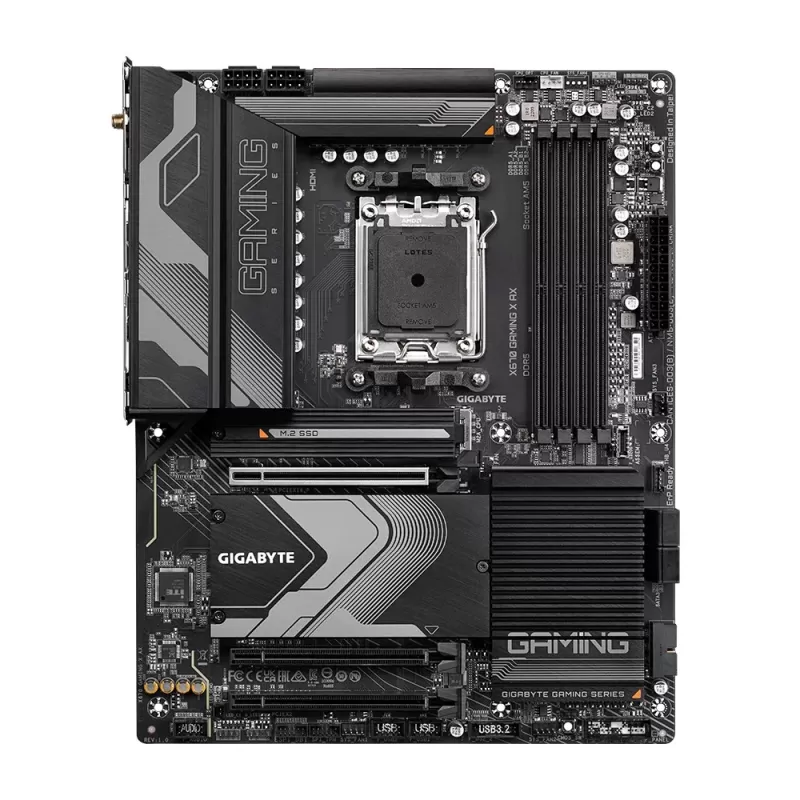

Motherboard Gigabyte X670 GAMING X AX DDR5 ATX AM5

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

1. Realtek^®&Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

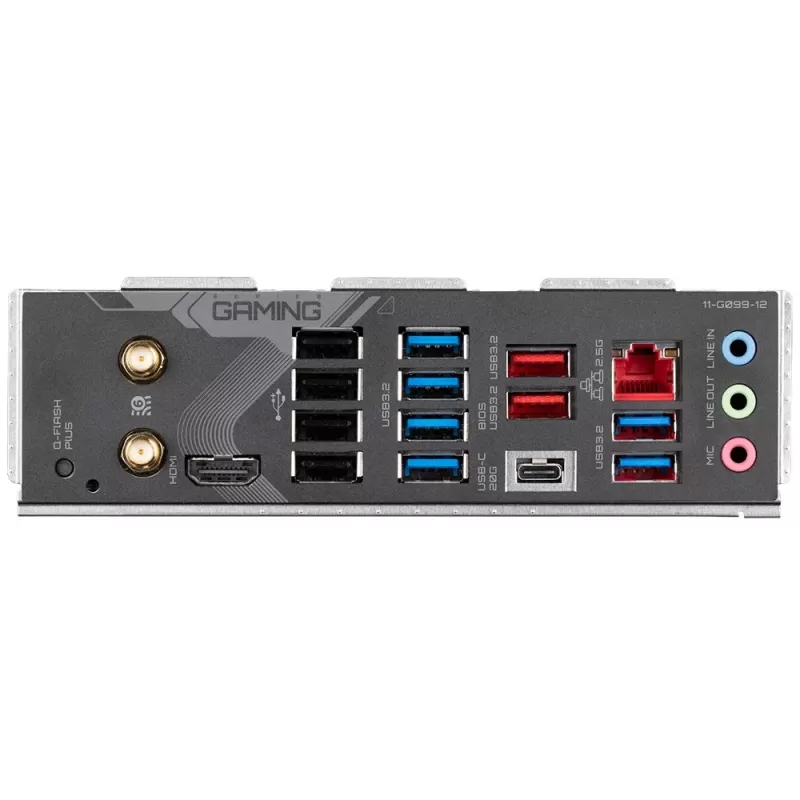

1. 1 x Q-Flash Plus button
2. 2 x SMA antenna connectors (2T2R)
3. 1 x HDMI port
4. 6 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 2 x USB 3.2 Gen 2 Type-A ports (red)
7. 1 x USB Type-C^®&port, with USB 3.2 Gen 2x2 support
8. 1 x RJ-45 port
9. 3 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x CPU cooler LED strip/RGB LED strip header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 4 x SATA 6Gb/s connectors
10. 4 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C^®&header, with USB 3.2 Gen 2x2 support
14. 2 x USB 3.2 Gen 1 headers
15. 2 x USB 2.0/1.1 headers
16. 1 x THB_U4 add-in card connector
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x power button
19. 1 x reset button
20. 1 x Clear CMOS button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

1. Support for DDR5 64(OC)/62(OC)/6(OC)/56(OC)/52/48/44 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0^(Note)&x4/x2 SSD support) (M2A_CPU)
   (Note) Actual support may vary by CPU.
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

AMD Wi-Fi 6E RZ616 (MT7922A22M)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
