Motherboard MSI B760M BOMBER WIFI DDR5 LGA1700

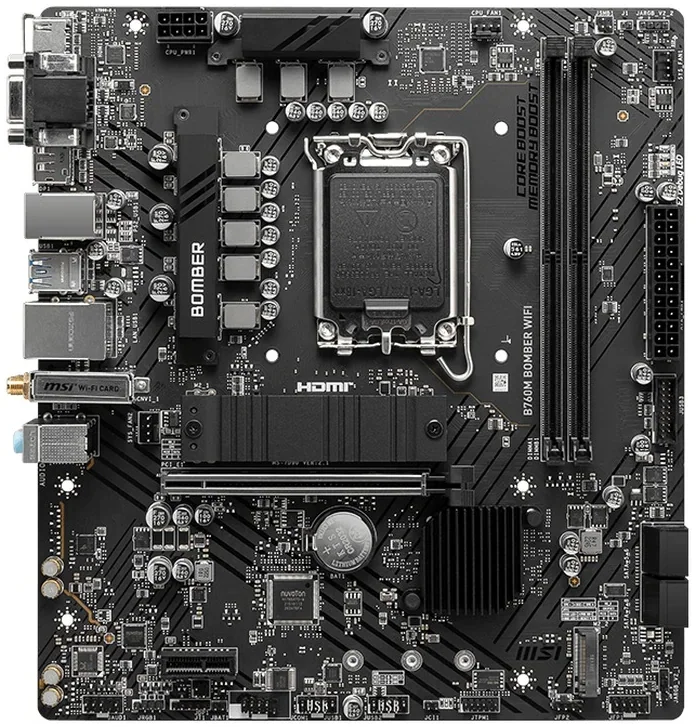

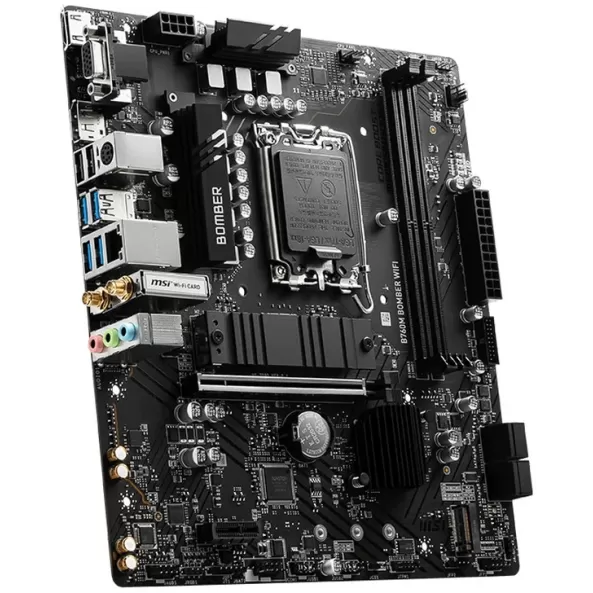

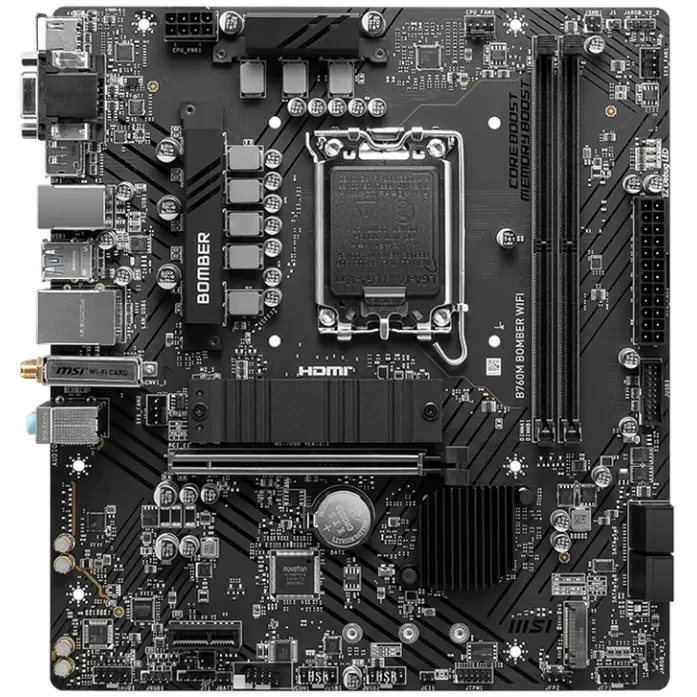

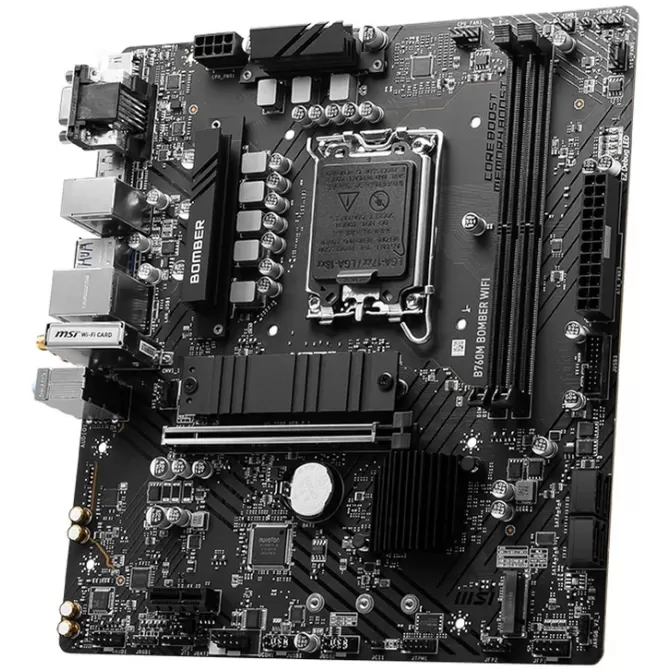

MSI B760M BOMBER WIFI DDR5 Motherboard

The MSI B760M BOMBER WIFI is a Micro ATX motherboard based on the Intel B760 chipset with an LGA1700 socket for 12th, 13th and 14th Gen Intel Core processors as well as Pentium Gold and Celeron. This is the DDR5 version of the board with a pre-installed Wi-Fi 6E module, a good fit for a compact gaming or work PC.

The board offers two DDR5 slots for up to 128GB at up to 6400+ MHz overclocked, a Steel Armor reinforced PCIe 4.0 x16 slot, two PCIe 4.0 x4 M.2 slots, four SATA ports, Realtek 2.5G LAN and three display outputs: HDMI, DisplayPort and VGA.

Key features

• Wi-Fi 6E and 2.5G LAN - A pre-installed Intel Wi-Fi 6E module with 2.4/5/6GHz bands and Bluetooth 5.3, plus a Realtek RTL8125B 2.5Gbps network controller.
• DDR5 with Memory Boost - Two dual-channel DDR5 slots for up to 128GB at up to 6400+ MHz overclocked, with Intel XMP 3.0 support and an isolated memory circuit for clean signals.
• Two fast M.2 slots - One M.2 slot from the CPU and one from the chipset, both at PCIe 4.0 x4, with M.2 Shield Frozr cooling for the primary drive, plus four SATA ports with RAID 0/1/5/10.
• Core Boost and Steel Armor - A digital power design that supports multi-core processors, and a metal-armored PCIe 4.0 x16 slot that protects the graphics card against bending and interference.

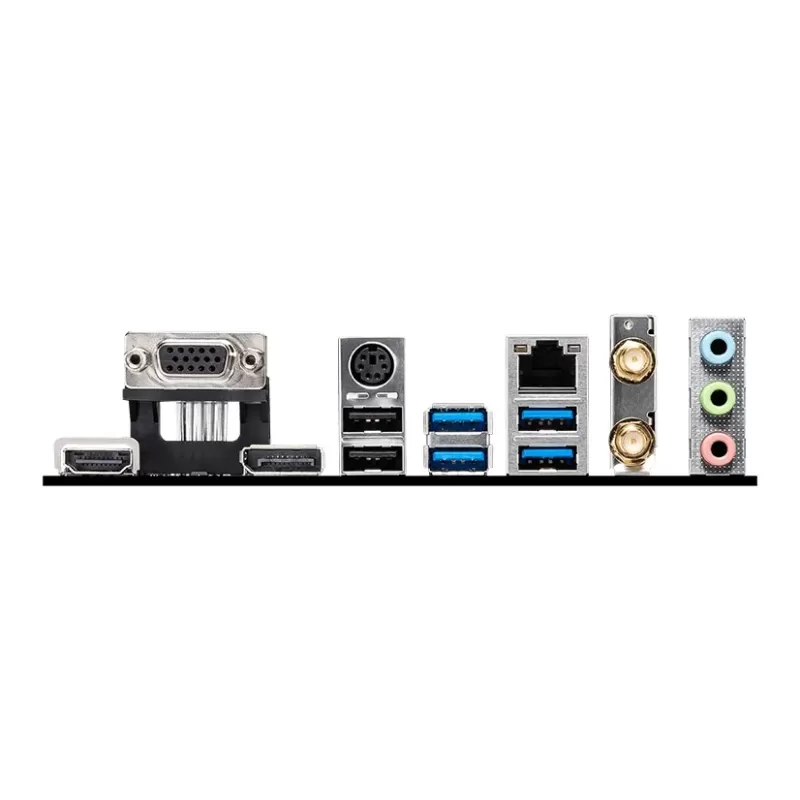

• Three display outputs and lighting - HDMI 2.1 and DisplayPort 1.4 up to 4K 60Hz plus VGA for integrated graphics, two ARGB Gen2 headers and one RGB header, and four EZ Debug LEDs for troubleshooting.

Specifications
