Motherboard ARKTEK AK-B760M EG DDR4 LGA1700

ARKTEK AK-B760M EG DDR4 Motherboard

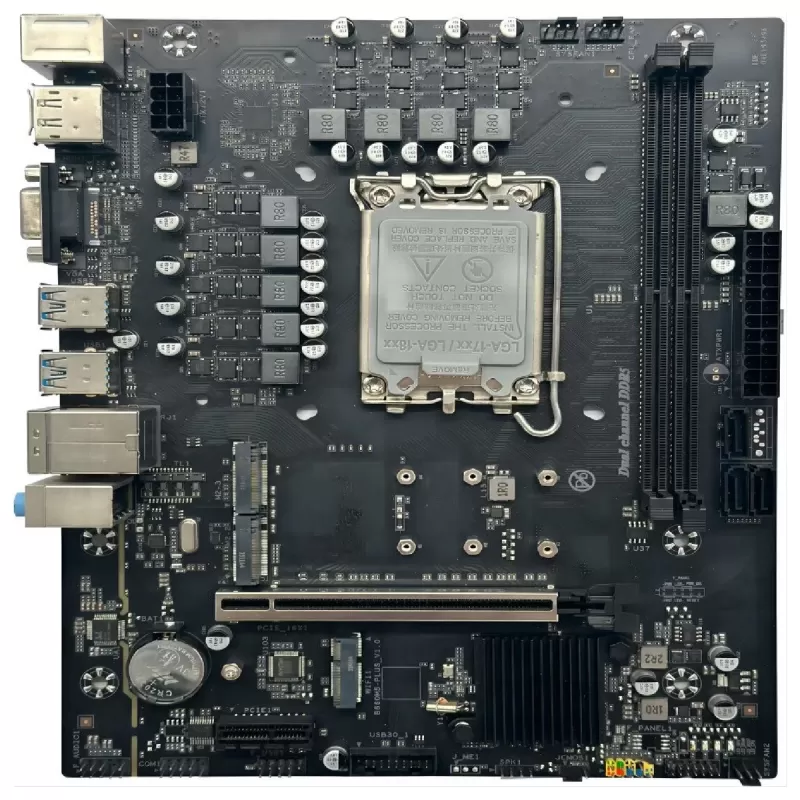

The ARKTEK AK-B760M EG DDR4 is a Micro ATX motherboard for the LGA1700 socket, based on the Intel B760 chipset. It supports 12th and 13th generation Intel Core processors, and this version takes DDR4 memory in two dual-channel slots.

The board is designed for affordable home and office builds: it offers three SATA ports, an M.2 slot for an NVMe drive, a PCIe x16 slot for a graphics card and VGA and HDMI outputs for the processor's integrated graphics.

Key features

• LGA1700 socket and B760 chipset - The board supports 12th and 13th generation Intel Core processors for the LGA1700 socket, and the Intel B760 chipset suits home and office PCs.
• Dual-channel DDR4 memory - Two DDR4 DIMM slots in a dual-channel layout. You can reuse existing DDR4 modules and keep the cost of the build down.
• SATA and M.2 storage - Three SATA 6Gb/s ports for hard drives and 2.5 inch SSDs, plus an M.2 slot that supports fast NVMe drives.
• Video without a graphics card - Rear VGA and HDMI outputs let you connect a monitor directly to the processor's integrated graphics. A PCIe x16 slot is available for a graphics card upgrade.

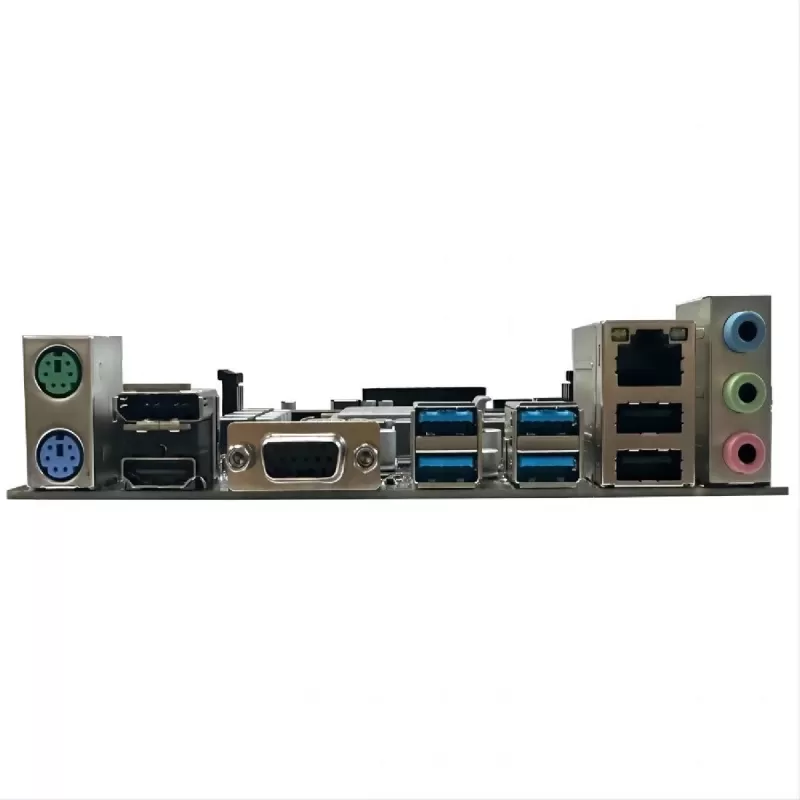

• Rear connectivity - A PS/2 port for a legacy keyboard or mouse, USB 3.2 and USB 2.0 ports, Realtek networking and 6-channel HD audio with three jacks.

Specifications

In the box

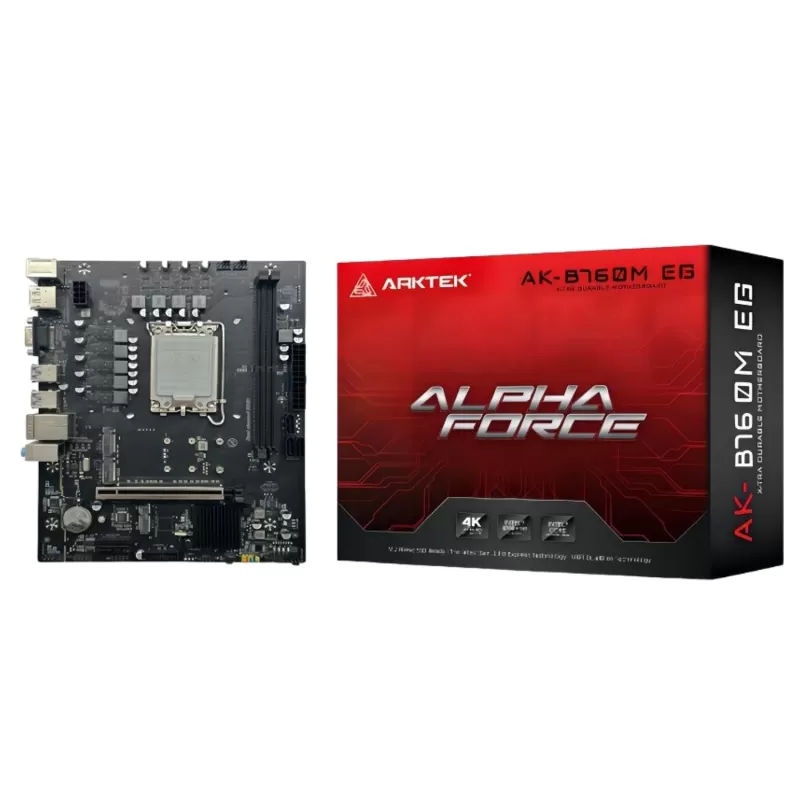

• ARKTEK AK-B760M EG motherboard
• SATA cable
• I/O shield
• User manual
• Driver CD
