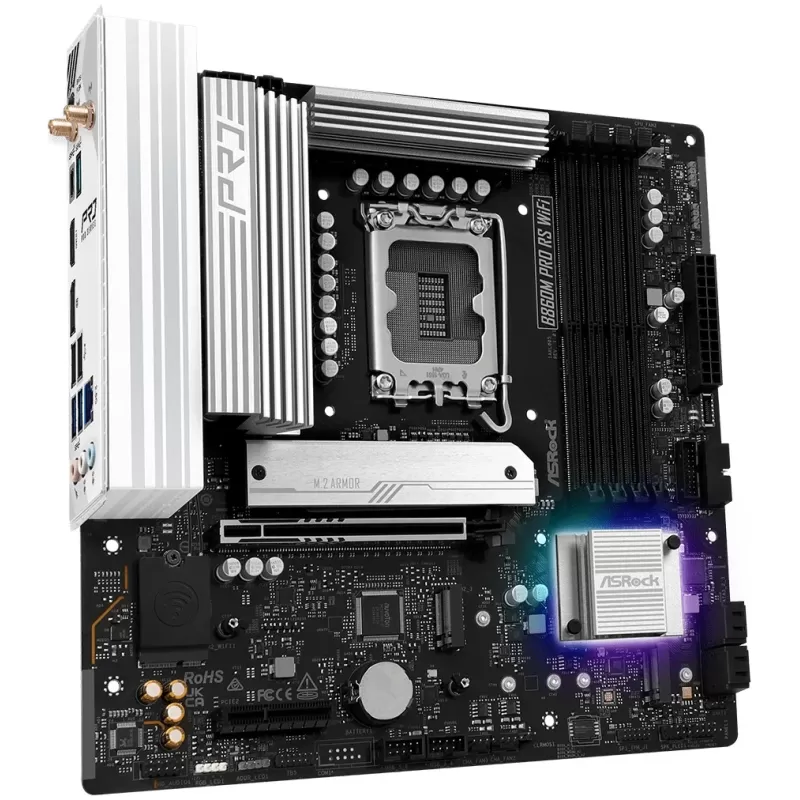

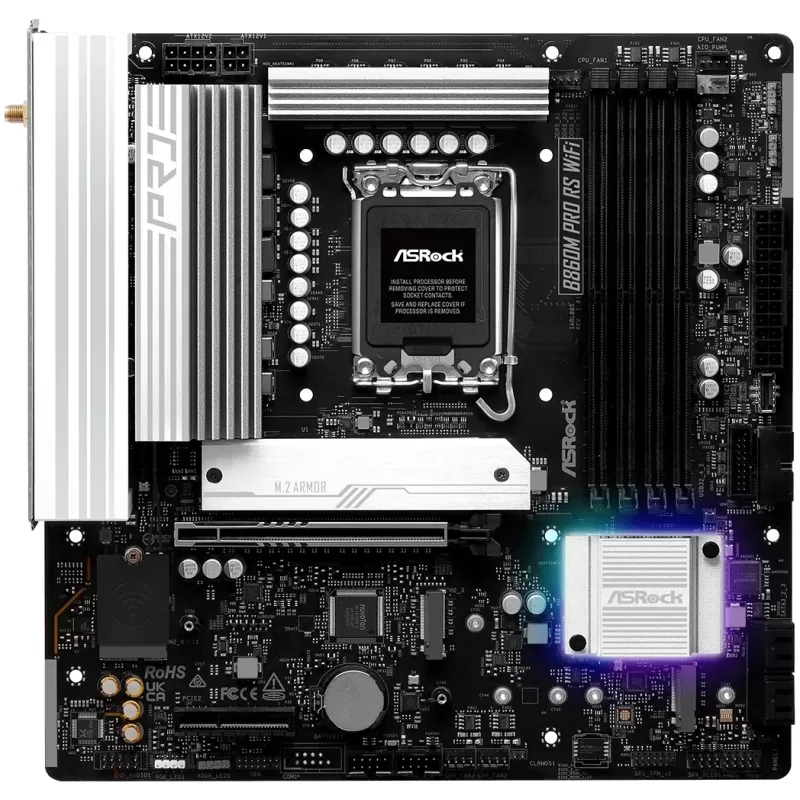

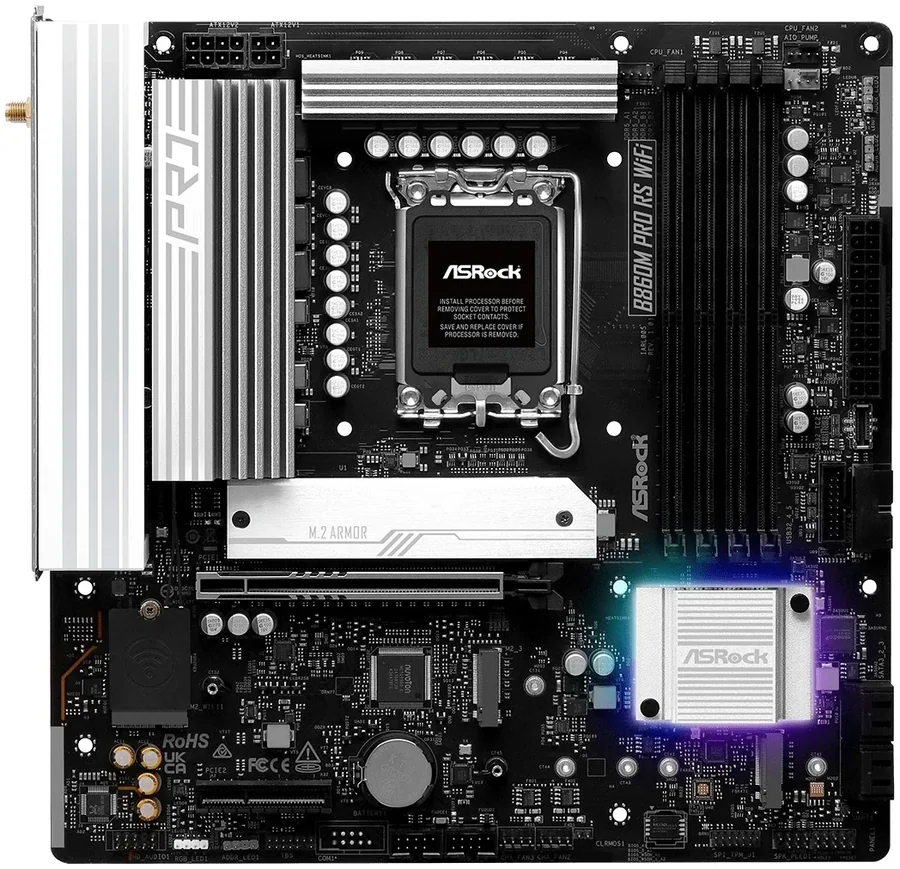

| Revew | ASRock B860M Pro RS WiFi MotherboardThe ASRock B860M Pro RS WiFi is a Micro ATX motherboard from the Pro series, based on the Intel B860 chipset with an LGA1851 socket for Intel Core Ultra (Series 2) processors. It suits a compact gaming PC or a capable home and office PC, in a white and silver design. The board offers four DDR5 slots for up to 256GB, a PCIe 5.0 x16 slot for the graphics card, three M.2 slots (one PCIe 5.0 x4), a 20Gb/s USB-C port, Dragon 2.5Gbps LAN and Wi-Fi 6E with Bluetooth 5.3.
Key features- PCIe 5.0 for graphics and storage - A PCIe 5.0 x16 slot from the CPU and a Blazing M.2 slot at PCIe 5.0 x4, alongside two Hyper M.2 slots at PCIe 4.0 x4, one more PCIe 4.0 x4 slot and four SATA ports.
- Four DDR5 slots - Up to 256GB in dual channel, up to 8666+ MHz overclocked, with CUDIMM and Intel XMP 3.0 support.
- Wi-Fi 6E and 2.5G LAN - A 2x2 Wi-Fi 6E module with Bluetooth 5.3 and two antennas, and a Dragon RTL8125BG 2.5Gbps network controller.

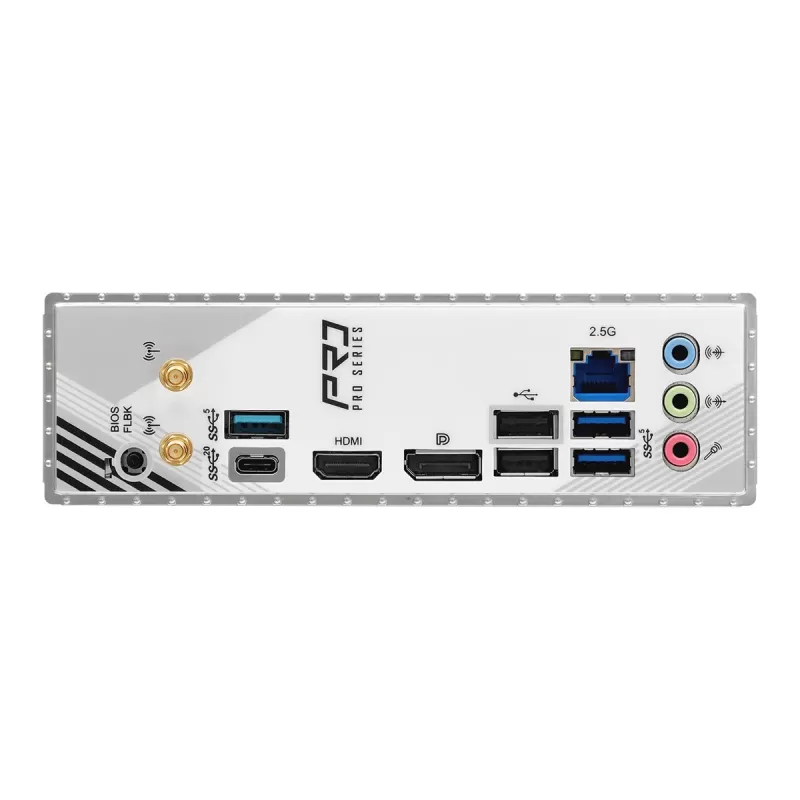

- Fast USB-C and video - A 20Gb/s USB 3.2 Gen2x2 Type-C port on the rear, HDMI 2.1 up to 4K 120Hz and DisplayPort 1.4 up to 8K 60Hz for the CPU's integrated graphics.
- Convenience and cooling - A BIOS Flashback button for updates without a CPU, two CPU fan headers, three chassis fan headers and an AIO pump header, plus three ARGB headers.
Specifications| Manufacturer | ASRock | | Model | B860M Pro RS WiFi | | Chipset | Intel B860 | | CPU socket | LGA1851 | | Supported CPUs | Intel Core Ultra (Series 2) | | Memory | 4 x DDR5, up to 256GB, dual channel, up to 8666+ MHz (OC), CUDIMM, Intel XMP 3.0 | | Expansion slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, M.2 Key E for Wi-Fi | | Storage | 1 x M.2 PCIe 5.0 x4, 2 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s | | RAID | SATA: 0/1/5/10 | | Wired LAN | Dragon RTL8125BG 2.5Gbps | | Wireless | Wi-Fi 6E (802.11ax) 2x2, Bluetooth 5.3 | | Audio | Realtek ALC897, 7.1 channels, Nahimic | | Rear USB | 1 x USB 3.2 Gen2x2 Type-C 20Gb/s, 3 x USB 3.2 Gen1, 2 x USB 2.0 | | Internal USB | 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1, 4 x USB 2.0 | | Video outputs | HDMI 2.1 up to 4K 120Hz, DisplayPort 1.4 up to 8K 60Hz (CPU with integrated graphics) | | Form factor | Micro ATX | | Operating system | Windows 11 64-bit |
|
